点击放大查看

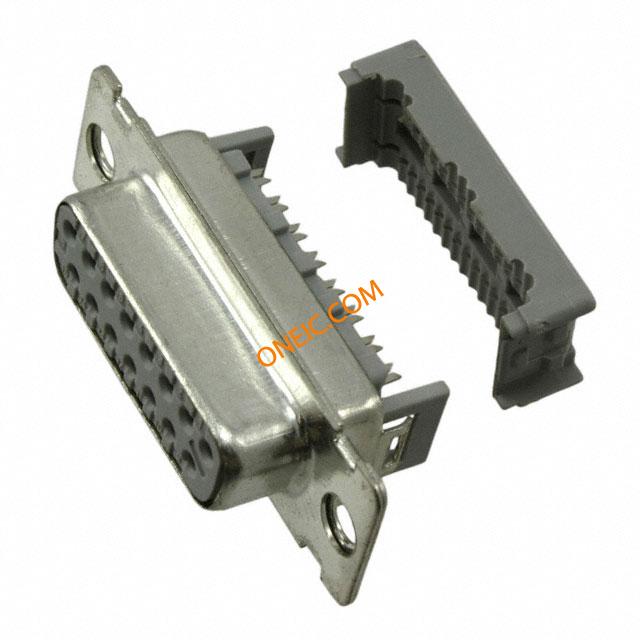

8315-7000
| Manufacturer | |
| Description | Conn D-Subminiature SKT 15 POS 2.76mm IDT RA Cable Mount 15 Terminal 1 Port D-Sub Standard Connectors 15P CLOSD CVR SOCKET LOW PROFILE Socket Connector CONN D-SUB RCPT 15POS IDC GOLD |
| Category |
Business
| Part # Aliases | 05111165737 80610186217 | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | RoHS Compliance | Yes |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Gray | Pitch | 2.76 mm |
| Packaging | Bulk | Insulation | Insulated |
| Termination | IDT | Contact Type | Signal |
| Mounting Type | Cable Mount | Shell Plating | Tin |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Contact Material | Copper Alloy |
| Housing Material | Polyester, Glass Filled | Termination Style | Screw |
| Number of Contacts | 15 | Insulation Material | Polyester, Glass Filled |
| Number of Positions | 15 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 30µin (0.76µm) | Shell Size, Connector Layout | 2 (DA, A) |
Product Info
| Type | D-Subminiature | Gender | SKT |
| Series | 8300 | ||
Environmental
| Operating Temperature | - 55 C to + 105 C | ||
