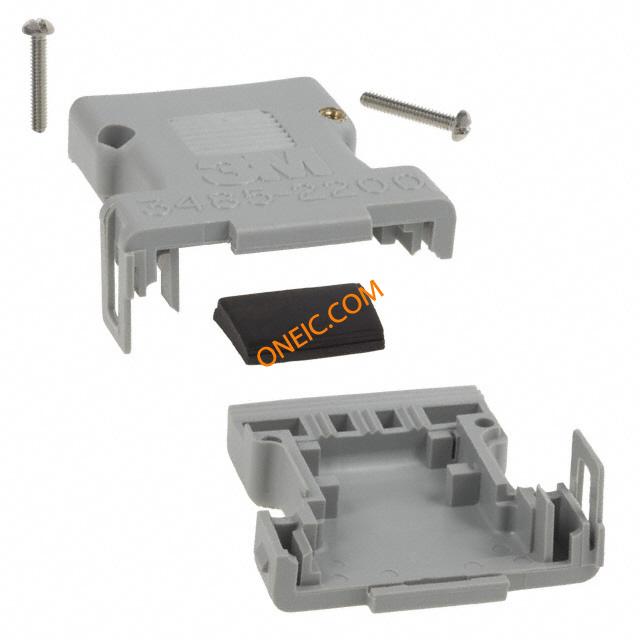

3485-2200F
| Manufacturer | |
| Description | Connector Accessories D-Sub Junction Shell 15 POS Polyester Gray D-Sub Backshells 15P PLSTC JUNC SHELL FOR FLAT CABLE Junction Shell for Flat Cable, Plastic BACKSHELL, 15PIN PLASTIC CABLE 15way IDC flat cable plastic D backshell BACKSHELL, D, PLASTIC, 15WAY DELTAIIPLASTICHOOD15W 3M 15 路 直 聚碳酸酯 (PBT) D-sub 连接器底壳 |
| Category |
Business
| Part # Aliases | 05400736333 80610182166 | Product Category | D-Sub Backshells |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | :CSA, UL |
| RoHS Compliance | Yes | Material Flammability Rating | UL 94 V-0 |
Mechanical
| Color | Gray | Weight | 5 lbs |
| Material | Polybutylene Terephthalate, Glass Filled | Shielding | Unshielded |
| Cable Exit | 180° | Cable Type | Flat |
| Shell Size | :DA | Mounting Type | Straight |
| Shell Plating | Plastic | Cable End Type | Straight |
| Shell Material | Polyester, Glass Filled | Material - Body | :Glass Reinforced Polyester |
| Housing Material | PBT | Color - Connectors | :Grey |
| Number of Positions | 15 | Number of Cable Pairs | 1 |
Product Info
| Type | Shell | Series | 3485 |
| Hardware | Assembly Hardware | Accessory Type | Two Piece Backshell |
| RF Family/Standard | 3485 | ||
