点击放大查看

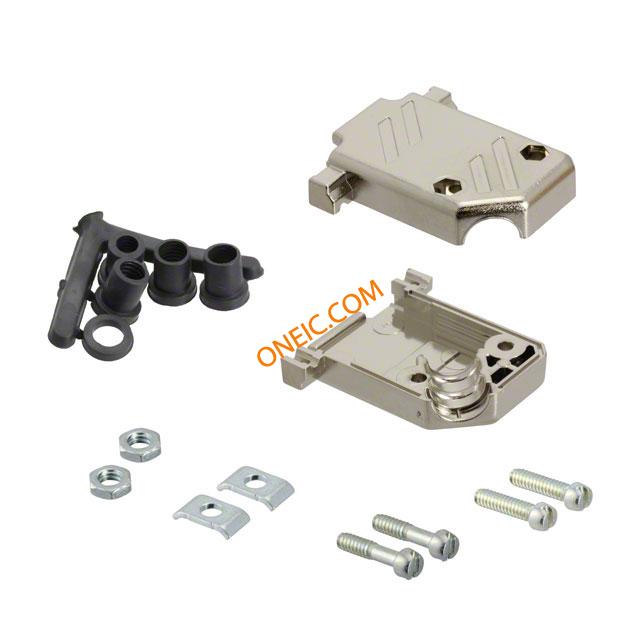

3357-6515-1C
| Manufacturer | |
| Description | D-Sub Backshells 15P EMI JUNC SHELL 60° EMI Junction Shell, Metalized Plastic, Corner-mount CONN D-SUB SHELL 15POS PLASTIC IDC 15W D SHELL Connector Accessories D-Sub Junction Shell Acrylonitrile Butadiene-Styrene BACKSHELL, D, SHIELDED, 15WAY IDC15WDSHELL D-Sub metallized hood 15P, 3357-6515-1C, 3M 3M 15 路 斜角 ABS D-sub 连接器底壳 |
| Category |
Business
| Part # Aliases | 05111164516 80400058287 | Product Category | D-Sub Backshells |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | RoHS Compliance | Yes |
| Material Flammability Rating | UL 94 V-0 | ||
Mechanical
| Color | Silver | Depth | 16.3 mm |
| Width | :39.1mm | Height | 47.75 mm |
| Length | :40.6mm | Weight | 2.600 lbs |
| Plating | Nickel over Copper | Material | ABS |
| Shielding | Shielded | Cable Exit | 45° |
| Cable Type | Round | Mounting Type | Angled |
| Shell Plating | Nickel over Copper | Cable Diameter | 8.13 mm |
| Cable End Type | 60 deg | Connector Type | :Backshell |
| Screw Material | :Steel | Shell Material | Acrylonitrile Butadiene Styrene (ABS) |
| Material - Body | :ABS (Acrylonitrile Butadiene Styrene) | Housing Material | ABS |
| Length - Overall | 39.1 mm | Color - Connectors | :Nickel |
| Number of Positions | 15 | Shell Size - Insert | :- |
| Number of Cable Pairs | 1 | Screw Material - Plating | :Zinc |
| Diameter - Outside, Non-Expanded | :8.9mm | ||
Product Info
| Type | EMI/RFI Shielded Backshell | Series | 3357 |
| Features | Mating Screws 4-40 | Hardware | Assembly Hardware, Strain Relief |
| CAD Drawing | 3D CAD Model | Accessory Type | Two Piece Backshell |
| For Use With/Related Products | :D Sub Connectors | ||
Environmental
| Operating Temperature | 0C to 75C | ||
