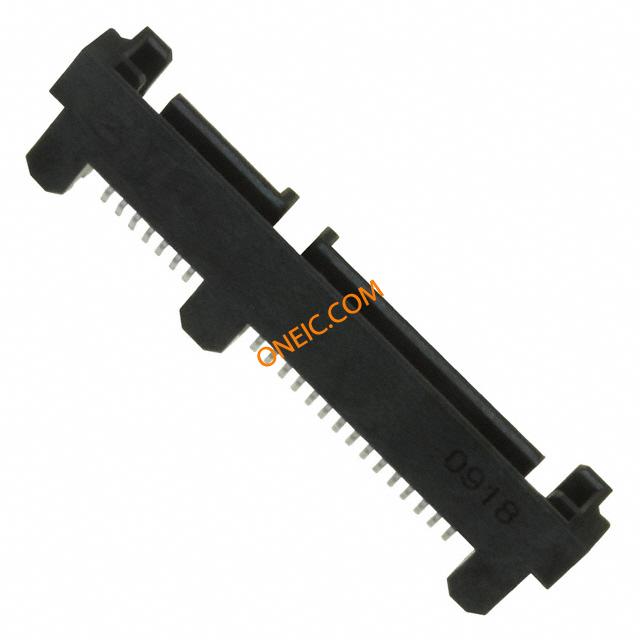

5622-6309-ML
| Manufacturer | |
| Description | I/O コネクタ SATA STRADDLMNT PLG W/CONTACTS NO FLNG Device Plug, Straddlemount and Right Angle, Through-Hole CONN PLUG SATA STRADDLEMNT 22POS 3M 1.27mm 7, 15 Way 1 Row Straight PCB Socket Edge Mount SATA I/O Connectors SATA STRADDLMNT PLG W/CONTACTS NO FLNG SATA CONNECTOR, PLUG, 22POS, SMD 3M 7/15路 直 1.27mm节距 边缘安装 印刷电路板插座, SATA |
| Category |
Business
| Product | SATA Connectors | Part # Aliases | 05111174493 XE004224970 |
| Product Category | I/O Connectors | Standard Package | 1,944 |
| Factory Pack Quantity | 1944 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366930 |
| RoHS Compliance | Yes | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current Rating (Max) | 1.5A | Insulation Resistance | 1000 MOhms |
Mechanical
| Color | Black | Pitch | 1.27mm |
| Weight | 0 | Packaging | Bulk |
| Termination | Solder | Mounting Type | Board Edge, Straddle Mount |
| Connector Type | SATA | Contact Finish | Gold |
| Mounting Style | Straddle | Number of Rows | 1 |
| Connector Style | Plug | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Termination Style | Solder Pad |
| Number of Contacts | 15.7 | Contact Termination | :Surface Mount Right Angle |
| Number of Positions | 22 | Contact Finish Thickness | 30µin (0.76µm) |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Type | SATA | Gender | Male |
| Series | :5622 | Features | Straddle Mount, Top Side Contacts |
Environmental
| Operating Temperature | - 40 C to + 85 C | ||
