点击放大查看

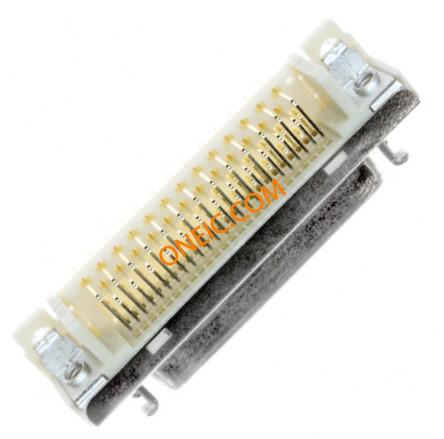

10250-55H3PC
| Manufacturer | |
| Description | Conn SCSI RCP 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port D-Sub Micro-D Connectors 50P R/A SHLD RECEPT BOARDMNT 4-40 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Molded Body CONN MDR RCPT 50POS R/A 4-40 3M 102 Series 1.27mm 50 Way Right Angle PCB Socket Through Hole Female Quick Latch RECEPTACLE, RIGHT ANGLE, MDR, 50WAY .050MiniDRibbon(MDR)50Pos.Thru-HoleRightAngleReceptacle-Shielded 3M 102 系列 50 路 1.27mm节距 直角 通孔 母 印刷电路板插座, 焊接, 快速闩锁 |
| Category |
Business
| Part # Aliases | 54745226259 JE150318465 | Product Category | D-Sub Micro-D Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 1 A |
Mechanical
| Depth | 9.4mm | Pitch | 2.54 mm |
| Width | 16.7mm | Length | 52.4mm |
| Weight | 0.045 | Material | :Steel |
| Packaging | Bulk | Termination | Solder |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Tin Lead | Flange Feature | Insert, Threaded (4-40); Latchblocks |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Connector Style | Outer Shroud Contacts | Locking Feature | Quick Latch |
| Contact Material | Copper Alloy | Housing Material | Glass Fibre Reinforced PET |
| Termination Style | Solder | Color - Connectors | :Beige |
| Number of Contacts | 50 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 50 | Contact Finish Thickness | 30µin (0.76µm) |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Type | SCSI | Gender | RCP |
| Series | 102 | Features | Board Lock, Shielded |
Environmental
| Operating Temperature | +105°C | ||
