10150-3000PE
| Manufacturer | |
| Description | Conn SCSI PL 50 POS 2.54mm Solder Cup ST Cable Mount 50 Terminal 1 Port D-Sub Micro-D Connectors 50P PLUG WIREMOUNT MDR Wiremount Plug, Solder, Shielded CONN MDR PLUG 50POS SLD CUP 3M Male 50 Way Straight Cable Mount SCSI Connector 2.54mm Pitch, Solder PLUG, MDR, SOLDER, 50WAY Conn;D-Sub;Mini-D-Ribbon;CablePlug;50Pos;STR;101Series;Solder;30-24AWG;0.050In. Connector: MDR; plug; male; shielded; PIN:50; 1.27mm; 24÷30AWG; 1A MDR plug 50P, 10150-3000PE, 3M 3M 50 路 2.54mm节距 直 电缆安装 公 SCSI 连接器, 焊接 50P CONNECTOR MALE PLUG MDR |
| Category |
Business
| Part # Aliases | 54548623744969 54745239795 54862374496 JE150332847 JE150430005 | Product Category | D-Sub Micro-D Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Standards | UL94V-0 |
| Tariff No | 85369010 | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage - Test | 0.5kV | Number of Poles | :50 |
| Voltage - Breakdown | :500V | Current Rating (Max) | 1 A |
| Insulation Resistance | :500Mohm | Contact Rating (Current) | 1A |
| Connector - Voltage Input | shielded | ||
Mechanical
| Depth | 19.3mm | Pitch | 2.54 mm |
| Width | 9.1mm | Length | 41.1mm |
| Weight | 0.008 | Material | :Steel |
| Packaging | Bulk | Wire Gauge | 30-24 |
| Termination | Solder Cup | Pitch - Post | 1.27mm |
| Body Material | polyester | Mounting Type | Cable Mount |
| Shell Plating | :Gold | Angle of Throw | Straight |
| Connector Type | Plug | Contact Finish | Gold |
| Mounting Style | Wire | Number of Rows | 2 |
| Connector Style | Center Strip Contacts | Insert Material | Polyester |
| Contact Material | Copper Alloy | Housing Material | Steel |
| Package Quantity | 100 | Primary Material | Mini-D-Ribbon |
| Connector - Cable | plug | Termination Style | Solder |
| Number of Contacts | 50 | Contact Termination | :Solder |
| Number of Positions | 50 | Contact Finish Thickness | 20µin (0.51µm) |
| Contact Material - Plating | nickel plated, gold plated | 1st Connector Mounting Type | :Cable |
Product Info
| Spg | 100 | Type | SCSI |
| Gender | PL | Features | Shielded |
| CAD Drawing | 3D CAD Model | Manufacturer | 101 |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
10250-R21TS
3M Electronic Solutions Division
D-Sub Micro-D Connectors 50P VERT SHLD RECEP BRDMNT COMPLIANT PIN Boardmount Receptacle, Compliant Pin, Vertical, Shielded CONN MINI-D 50POS VERT RECPT 0.050MiniDRibbonBoardMountCompliantPinVerticalReceptacle50positions
10250-55G3PC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 50P RA RECPTACLE CONN MINI-D 50POS R/A RECPT 3M 102 Series 1.27mm Pitch 50 Way Right Angle Through Hole Female PCB D-sub Connector, Solder Termination, 1A 3M 102 系列 50 路 1.27mm节距 直角 通孔 母 PCB D-sub 连接器, 焊接, 快速闩锁
10350-52A0-008
3m interconnect solutions
Connector Accessories Plastic Shell 50 POS D-Sub Backshells 50P JUNCTION SHELL JUNCTION SHELL 50POS 50 way screw release plastic backshell Plastic Shielded Shell Screw BACKSHELL, MDR, 50WAY, SCREW Backshell;50Pos;Unshielded;forRoundCable;Black;LatchLock;103MDRSer. Plug housing; PIN:50; Locking: screws 3M 103 系列 50 路 直 黑色 聚合物 D-sub 连接器底壳 , 带应力消除
N10250-52E3PC
3m interconnect solutions
Conn SCSI RCP 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port D-Sub Micro-D Connectors MDR/26POS/HITEMP/ CONN MINI-D 50POS R/A RECPT
10250-0210EC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 50P RECEPT SHIELDED IDC WIREMNT PANELMNT Wiremount/Panelmount Receptacle, IDC, Shielded CONN MDR RECPT 50POS IDC GOLD 3M 102 Series 1.27mm Pitch 50 Way Straight Panel Mount Female IDC D-sub Connector, Zinc Alloy Shell SOCKET, MDR, IDC, 50WAY 3M 102 系列 50 路 1.27mm节距 直 面板安装 母 IDC D-sub 连接器, IDC, 快速闩锁
10350-52F0-008
3M Electronic Solutions Division
D-Sub Backshells 50P JUNCTION SHELL SLDR PLUG NON-SHIELD Shell for Solder, Plastic, Round Cable, Straight Exit, Latches, Non-Shielded CONN JUNCTION SHELL 50POS STRGT 50 way finger release plastic backshell BACKSHELL, MDR, 50WAY, Q/REL Hood;D-Sub;50Pos;StraightExit;103Series;Plastic;0.050In.CblDia;MDR;Shielded Plug housing; PIN:50; Locking: lock 3M 103 系列 50 路 直 黑色 聚碳酸酯 (PBT) D-sub 连接器底壳 , 带应力消除
N10250-5242PC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 50P R/A SHLD RECEPT BOARDMNT 4-40 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Diecast Body CONN MINI-D 50POS R/A RECPT
N10250-52B2PC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 50P HI TEMP MDR CONN MINI-D 50POS R/A RECPT 3M 102 Series 1.27mm Pitch 50 Way Right Angle Through Hole Female PCB D-sub Connector, Solder Termination, 1A 3M 102 系列 50 路 1.27mm节距 直角 通孔 母 PCB D-sub 连接器, 焊接, 快速闩锁
10250-6212PL
3M Electronic Solutions Division
D-Sub Micro-D Connectors 50P SKT BD MT MINI D RIBBON 50 CONTACT 3M Female 50 Way Straight Through Hole SCSI Connector 2.54mm Pitch, Solder Conn SCSI RCP 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port RECEPTACLE, MDR, STRAIGHT, 50WAY MDRPCBSKT50W MDR socket 50P, 10250-6212PL, 3M 3M 50 路 2.54mm节距 直 通孔 母 SCSI 连接器, 焊接 50P D-SUB MICRO CONNECTOR

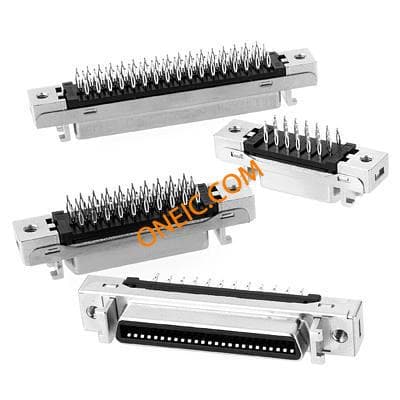

10250-R20CS
