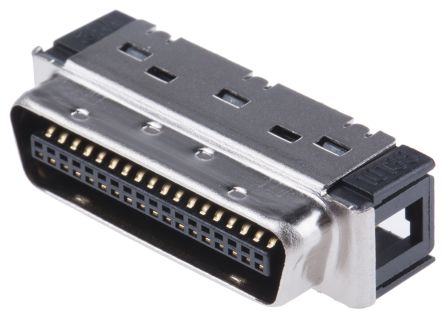

10136-6000EL
| Manufacturer | |
| Description | Conn SCSI PL 36 POS 1.27mm IDT RA Cable Mount 36 Terminal 1 Port D-Sub Micro-D Connectors 36P METAL FACE PLUG 28 AWG MINI D RIBBON 36 CONTACT MDR 36 way cable mount plug,1A PLUG, MDR, CABLE MOUNT, 36WAY MDR36-WAYPLG 3M 101 系列 1.27mm 节距 36 路 IDC Mini-D 带状电缆连接器, 插头, 钢外壳 |
| Category |
Business
| Part # Aliases | 54548623744938 54862374493 90169007916 JE150151338 JE150429973 | Product Category | D-Sub Micro-D Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | No | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 500 V | Voltage - Breakdown | :500V |
| Current Rating (Max) | 1 A | Insulation Resistance | :500Mohm |
| Voltage - Supply (Min) | 200VDC/150VAC | ||
Mechanical
| Depth | 9.1mm | Pitch | 1.27 mm |
| Width | 12.7mm | Height | 12.7 mm |
| Length | 32.2mm | Weight | 0.006 |
| Termination | IDT | Mounting Type | Cable Mount |
| Shell Plating | Nickel | Connector Type | :Micro D |
| Contact Finish | Gold | Mounting Style | Through Hole |
| Number of Rows | 4 | Shell Material | Zinc Alloy |
| Contact Material | Copper Alloy | Housing Material | Glass Fibre Reinforced PET |
| Length - Overall | 32.2 mm | Size / Dimension | 32.2 x 12.7 x 9.1mm |
| Termination Style | Solder | Number of Contacts | 36 |
| Contact Termination | :IDC / IDT | 1st Connector Mounting Type | :Cable |
Product Info
| Type | SCSI | Gender | PL |
| Series | * | DELETED | Compliant |
| Number of Ports | 1 Port | ||
Environmental
| Operating Temperature | +85°C | Operating Temperature - Junction | 85C |
