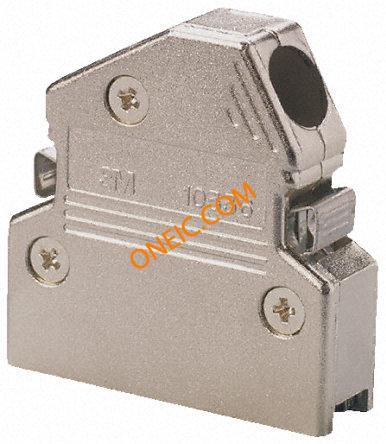

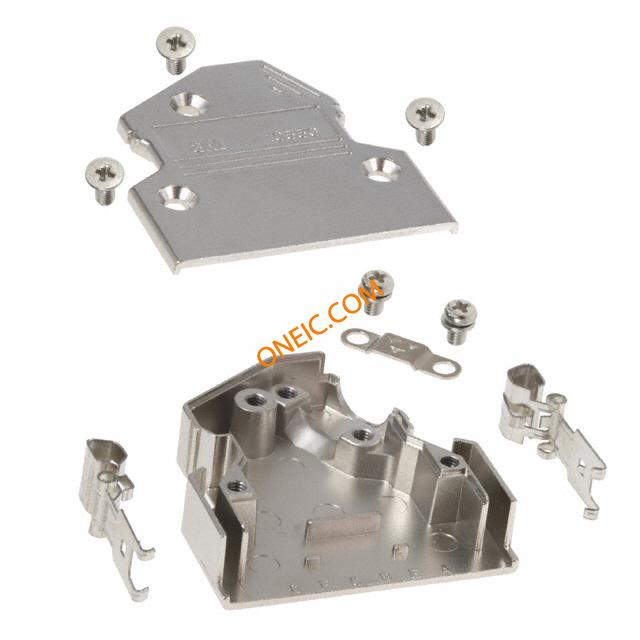

10336-A500-00
| Manufacturer | |
| Description | D-Sub Backshells 36P METAL JUNC SHELL 60 DEGREE ANGLE Shell for IDC, Metal, Round Cable, 60 Degree Exit, Latches, Shielded CONN JUNCTION SHELL 36POS 60DEG METAL SHELL 36 WAYS BACKSHELL, MDR, 36WAY, METAL 3M 103 系列 36 路 斜角 天然色 压铸铝 D-sub 连接器底壳 , 带应力消除 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 90169009199 JE150185658 | Product Category | D-Sub Backshells |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| RoHS Compliance | Yes | ||
Mechanical
| Color | Silver | Weight | 0.016 |
| Plating | Nickel | Material | Metal, Zinc Alloy |
| Packaging | Bulk | Shielding | Shielded |
| Cable Exit | 60° | Cable Type | Round |
| Mounting Type | Angled | Shell Plating | Nickel |
| Cable End Type | 60 deg | Connector Type | :Backshell |
| Shell Material | Zinc | Material - Body | :Aluminium |
| Housing Material | Die Cast Aluminium | Color - Connectors | Natural |
| Number of Contacts | 36 | Number of Positions | 36 |
| Shell Size - Insert | :- | Number of Cable Pairs | 1 |
Product Info
| Type | EMI/RFI Shielded Backshell | Series | 103 |
| Features | Latch Lock | Hardware | Assembly Hardware, Cable Clamp |
| Accessory Type | Two Piece Backshell | For Use With/Related Products | :Mini D Ribbon 101XX-6000 EC Plug Connectors |
Environmental
| Mechanical Life | Obsolete | ||
