10126-6000EL
| Manufacturer | |
| Description | Conn SCSI PL 26 POS 1.27mm IDT RA Cable Mount 26 Terminal 1 Port D-Sub Micro-D Connectors 26P METAL FACE PLUG 28 AWG MINI D RIBBON 26 CONTACT MDR 26 way cable mount plug,1A MDR26-WAYPLG Connector: MDR; plug; male; shielded; PIN:26; Contacts ph:1.27mm 3M 101 系列 1.27mm 节距 26 路 IDC Mini-D 带状电缆连接器, 插头, 钢外壳 |
| Category |
Business
| Part # Aliases | 90169007915 JE150151320 | Product Category | D-Sub Micro-D Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | No | Material Flammability Rating | UL94V-0 |
Electrical
| Voltage - Test | 0.5kV | Voltage Rating | 150 V ac, 200 V dc |
| Current Rating (Max) | 1 A | Voltage - Supply (Min) | 200VDC/150VAC |
| Contact Rating (Current) | 1A | Connector - Voltage Input | shielded |
Mechanical
| Depth | 9.1mm | Pitch | 1.27 mm |
| Width | 12.7mm | Height | 12.7 mm |
| Length | 25.8mm | Weight | 6.81 g |
| Wire Gauge | 28...30AWG | Termination | IDT |
| Pitch - Post | 1.27mm | Body Material | polyester |
| Mounting Type | Cable Mount | Shell Plating | Nickel |
| Connector Type | male | Contact Finish | Gold |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Glass Fibre Reinforced PET |
| Length - Overall | 25.8 mm | Package Quantity | 100 |
| Size / Dimension | 25.8 x 12.7 x 9.1mm | Connector - Cable | plug |
| Termination Style | Solder | Number of Contacts | 26 |
| Number of Positions | 26 | Contact Material - Plating | nickel plated, gold plated |
Product Info
| Spg | 100 | Type | SCSI |
| Gender | PL | Series | * |
| Number of Ports | 1 Port | Number of Units | 1 |
Environmental
| Operating Temperature | +85°C | Operating Temperature - Junction | 85C |
Documents & Media
Similar Parts
10326-A200-00
3M Electronic Solutions Division
D-Sub Backshells 26P METAL BACKSHELL 2 PC FOR ROUND CABLE Shell for IDC, Metal, Round Cable, Straight Exit, Latches, Shielded CONN JUNCTION SHELL 26POS STRGT 26way IDC finger release metal backshell BACKSHELL, MDR, 26WAY, METAL MDRMETALHOOD26W 3M 103 系列 26 路 直 天然色 压铸铝 D-sub 连接器底壳 , 带应力消除
10326-A500-00
3M Electronic Solutions Division
D-Sub Backshells 26P METAL JUNC SHELL Shell for IDC, Metal, Round Cable, 60 Degree Exit, Latches, Shielded CONN JUNCTION SHELL 26POS 60DEG
10226-6212PL
3m interconnect solutions
Conn SCSI RCP 26 POS 2.54mm Solder ST Thru-Hole 26 Terminal 1 Port D-Sub Micro-D Connectors 26P SKT BD MT MINI D RIBBON 26 CONTACT 3M Female 26 Way Straight Through Hole SCSI Connector 2.54mm Pitch, Solder RECEPTACLE, MDR, STRAIGHT, 26WAY MDR socket 26P, 10226-6212PL, 3M 3M 26 路 2.54mm节距 直 通孔 母 SCSI 连接器, 焊接 26P CONNECTOR MDR RA
10226-1210PE
3m interconnect solutions

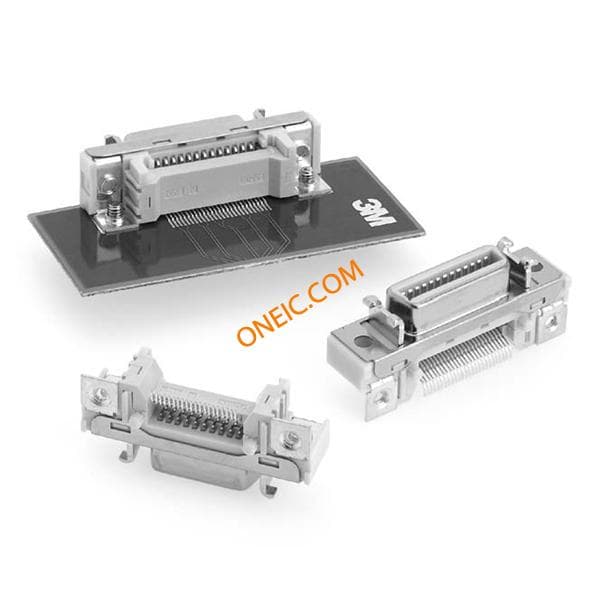

Conn SCSI RCP 26 POS 0.64mm Solder RA SMD 26 Terminal 1 Port D-Sub Micro-D Connectors 26P R/A SHLD RECEPT SURFACE MOUNT Boardmount Receptacle, Surface Mount, Right Angle, Shielded CONN MDR RECEPT 26POS R/A SMD RECEPTACLE, MDR, SMT, 26WAY RECEPTACLE,SHIELDED,SURFACEMOUNT,RIGHTANGLE,26CONTACTS Connector: MDR; socket; female; horizontal; shielded; PIN:26; 1A MDR socket 26P, 10226-1210PE, 3M 26P CONNECTOR MDR RIGHTANGLE
10326-3210-000
3m interconnect solutions

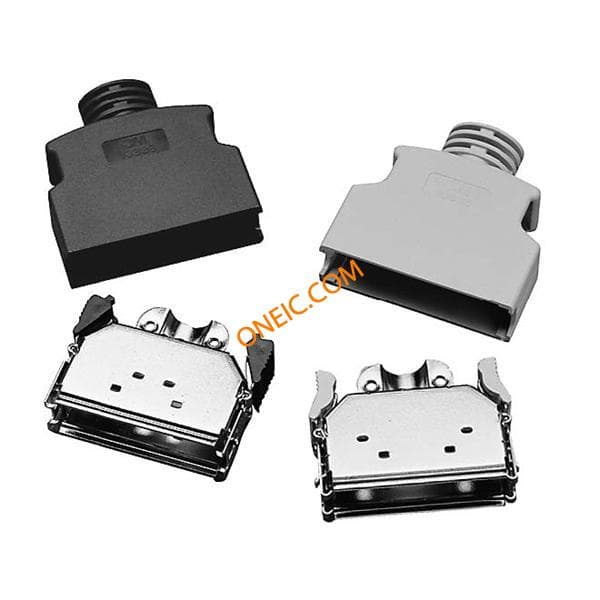

Connector Accessories Shielded Junction Shell 26 POS Acrylonitrile Butadiene-Styrene Beige D-Sub Backshells 26P JUNCTION SHELL IDC WIREMOUNT SHIELD Shell for IDC, Plastic, Round Cable, Straight Exit, Latches, Shielded CONN JUNCTION SHELL 26POS STRGT 26 way finger release plastic hood BACKSHELL, MDR, 26WAY, SHIELDED Hood;D-Sub;26Pos;StraightExit;103Series;Plastic;0.050In.CblDia;MDR,Shielded 3M 103 系列 26 路 直 米色 ABS D-sub 连接器底壳 , 带应力消除
10226-5212PL
3M

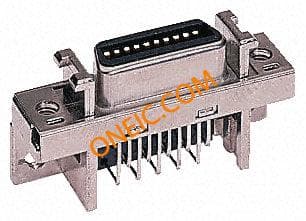

26 way panel right angle PCB I/O socket RECEPTACLE, MDR, R/A, 26WAY 26WPCBRECEPTACLE Connector: MDR; socket; female; angled 90°; shielded; PIN:26; 1A MDR socket 26P, 10226-5212PL, 3M 3M MDR 102 系列 2.54mm 节距 26 路 直角 通孔安装 Micro-D 印刷电路板连接器 插座
