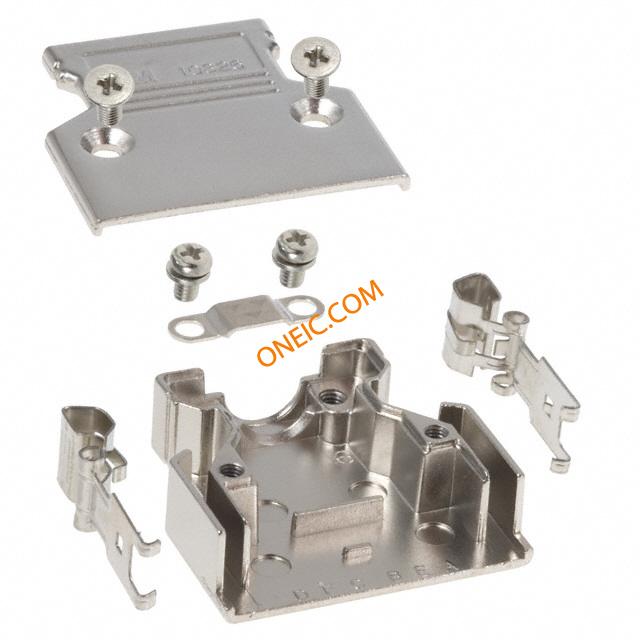

10326-A200-00
| Manufacturer | |
| Description | D-Sub Backshells 26P METAL BACKSHELL 2 PC FOR ROUND CABLE Shell for IDC, Metal, Round Cable, Straight Exit, Latches, Shielded CONN JUNCTION SHELL 26POS STRGT 26way IDC finger release metal backshell BACKSHELL, MDR, 26WAY, METAL MDRMETALHOOD26W 3M 103 系列 26 路 直 天然色 压铸铝 D-sub 连接器底壳 , 带应力消除 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 90169009195 JE150185609 | Product Category | D-Sub Backshells |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| RoHS Compliance | Yes | Material Flammability Rating | UL 94 V-0 |
Mechanical
| Color | Silver | Weight | 0.014 |
| Plating | Nickel | Material | Metal, Zinc Alloy |
| Shielding | Shielded | Cable Exit | 180° |
| Cable Type | Round | Mounting Type | Straight |
| Connector Type | :Backshell | Material - Body | :Aluminium |
| Housing Material | Die Cast Aluminium | Color - Connectors | Natural |
| Number of Contacts | 26 | Number of Positions | 26 |
| Shell Size - Insert | :- | ||
Product Info
| Series | 103 | Features | Latch Lock |
| Hardware | Assembly Hardware, Cable Clamp | CAD Drawing | 3D CAD Model |
| Accessory Type | Two Piece Backshell | For Use With/Related Products | :Mini D Ribbon 101XX-6000 EC Plug Connectors |
Environmental
| Mechanical Life | Obsolete | ||
