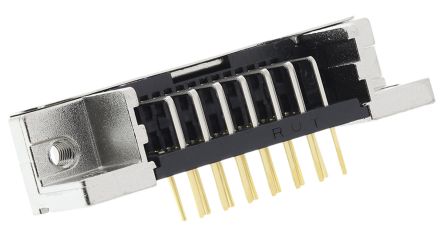

10226-5212PL
| Manufacturer | |
| Description | 26 way panel right angle PCB I/O socket RECEPTACLE, MDR, R/A, 26WAY 26WPCBRECEPTACLE Connector: MDR; socket; female; angled 90°; shielded; PIN:26; 1A MDR socket 26P, 10226-5212PL, 3M 3M MDR 102 系列 2.54mm 节距 26 路 直角 通孔安装 Micro-D 印刷电路板连接器 插座 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage - Test | 500V | Voltage Rating | 150 V ac, 200 V dc |
| Number of Poles | :26 | Voltage - Breakdown | :500V |
| Current Rating (Max) | 0.5A | Insulation Resistance | :500Mohm |
| Contact Rating (Current) | 1A | Connector - Voltage Input | shielded |
Mechanical
| Depth | 9.1mm | Pitch | 2.54mm |
| Width | 16.7mm | Length | 37.2mm |
| Weight | 0.01 | Material | :Steel |
| Orientation | angled 90° | Termination | :Solder |
| Pitch - Post | 1.27mm | Body Material | polyester |
| Mounting Type | Right Angle | Connector Type | :Micro D |
| Contact Finish | Gold over Nickel | Mounting Style | for panel mounting |
| Locking Feature | lock | Contact Material | Copper Alloy |
| Housing Material | Glass Fibre Reinforced PET | Package Quantity | 100 |
| Size / Dimension | 37.2 x 16.7 x 9.1mm | Connector - Cable | socket |
| Color - Connectors | :Black | Number of Contacts | 26 |
| Contact Termination | :Through Hole Right Angle | Number of Positions | 26 |
| Contact Material - Plating | nickel plated, gold plated | 1st Connector Mounting Type | :PCB |
Product Info
| Spg | 100 | Gender | Female |
| Series | 102 | Number of Units | 1 |
Environmental
| Operating Temperature | +85°C | ||
