点击放大查看

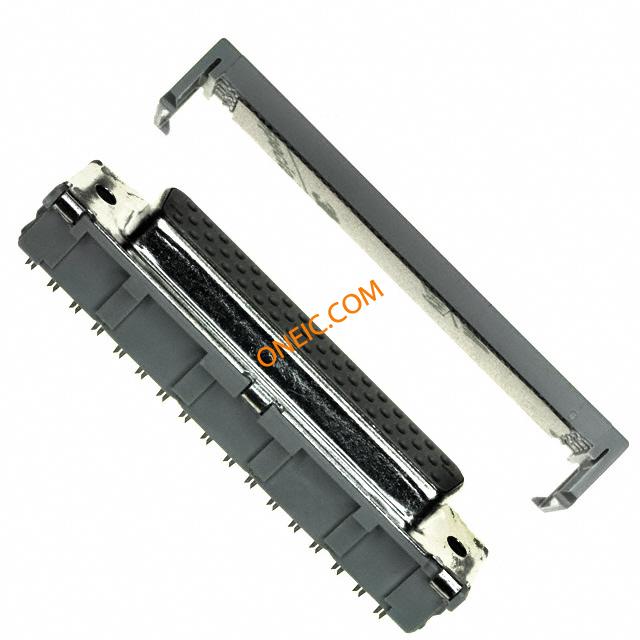

8350-6005
| Manufacturer | |
| Description | D-Sub Standard Connectors 50P OPEN COVR SOCKET 50 Position socket CONN D-SUB RCPT 50POS IDC GOLD 50 way IDC class 2 metal shell D socket Conn D-Subminiature SKT 50 POS 2.74mm IDT RA Cable Mount 50 Terminal 1 Port SOCKET, D, IDC, 50WAY CONNECTOR, D, SUB, FEMALE, 50WAY Conn;D-Sub;CableSocket;50Cnt;8300Series;Gray;CopperAlloy;26,28AWG D-sub socket 50P, 8350-6005, 3M 3M 8300 系列 2.74mm 节距 50 路 IDC D-sub 连接器, 插座, 钢外壳 50P D-SUB SOCKET OPEN COVER |
| Category |
Business
| Part # Aliases | 00189511520 DE610006715 | Product Category | D-Sub Standard Connectors |
| Standard Package | 20 | Factory Pack Quantity | 20 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Rad Hardened | No | Approval Agency | :CSA, UL |
| RoHS Compliance | Yes | Material Flammability Rating | :UL94V-0 |
Electrical
| Range deg/s | :3M - D Tin And Dimple | Voltage Rating | 500 V |
| Contact Resistance | :20mohm | Current Rating (Max) | 1 A |
| Contact Rating (Current) | :1A | ||
Mechanical
| Color | Gray | Depth | 15.2mm |
| Pitch | 2.74mm | Width | 22.05mm |
| Height | 22.05 mm | Length | 70.9mm |
| Weight | 1 lb | Material | :Steel |
| Packaging | Tray | Shell Size | :DD |
| Wire Gauge | 26(Solid),28(Stranded) | Termination | IDC, Ribbon Cable |
| Contact Type | Signal | Mounting Type | Panel Mount |
| Shell Plating | Tin | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Copper Alloy | Flange Feature | Housing/Shell (4-40) |
| Mounting Style | Wire | Number of Rows | 3 |
| Package / Case | :Steel, tin Plating over copper | Shell Material | Steel |
| Connector Style | D-Sub | Material - Body | :Metal |
| Contact Material | Copper Alloy | Housing Material | Polyester, Glass Filled |
| Length - Overall | 70.9 mm | Size / Dimension | 70.9 x 22.05 x 15.2mm |
| Termination Style | IDC | Color - Connectors | :Grey |
| Number of Contacts | 50 | Contact Termination | :IDC / IDT |
| Number of Positions | 50 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 30µin (0.76µm) | Shell Size, Connector Layout | 5 (DD, D) |
Product Info
| Type | D-Subminiature | Gender | Female |
| Series | 8300 | Features | Feed Through |
| CAD Drawing | 3D CAD Model | Manufacturer | 8350 |
| Number of Ports | 1 Port | ||
Environmental
| Mating Cycles | :200 | Operating Temperature | -55°C ~ 105°C |
Documents & Media
