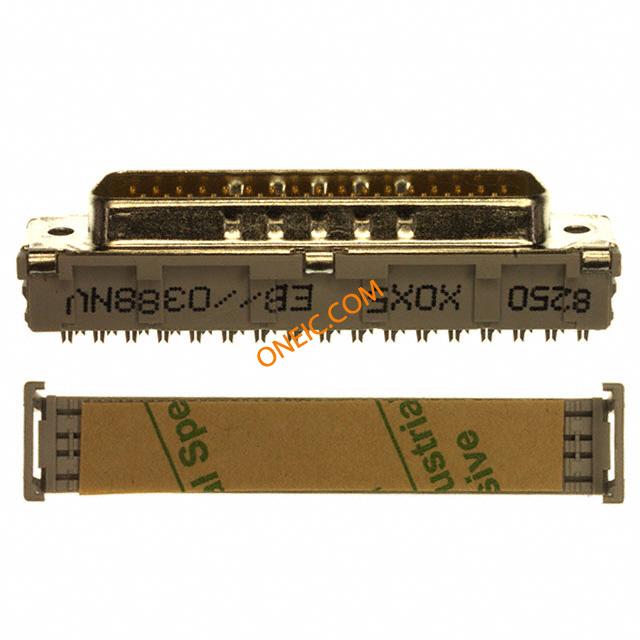

8250-6005
| Manufacturer | |
| Description | D-Sub Standard Connectors 50P OPEN COVER PLUG 50 Position plug CONN DSUB PLUG 50POS IDC GOLD 50 way IDC class 2 metal shell D plug Conn D-Subminiature PIN 50 POS 2.74mm IDT RA Cable Mount 50 Terminal 1 Port PLUG, D, IDC, 50WAY Conn;D-Sub;CablePlug;50Cnt;8250Series;Gray;CopperAlloy;26,28AWG D-sub plug 50P, 8250-6005, 3M 3M 8200 系列 2.74mm 节距 50 路 IDC D-sub 连接器, 插头, 钢外壳 |
| Category |
Business
| Part # Aliases | 00189514466 DE610006699 | Product Category | D-Sub Standard Connectors |
| Standard Package | 200 | Factory Pack Quantity | 200 |
Compliance
| RoHS | RoHS Compliant By Exemption | Standards | UL94V-0 |
| Tariff No | 85369010 | Rad Hardened | No |
| Approval Agency | :CSA, UL | RoHS Compliance | Yes |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Range deg/s | :3M - D Tin And Dimple | Voltage Rating | :350V |
| Contact Resistance | :20mohm | Current Rating (Max) | 1 A |
| Contact Rating (Current) | :1A | ||
Mechanical
| Color | Gray | Depth | 24.49mm |
| Pitch | 2.74mm | Width | 15.2mm |
| Height | 15.2 mm | Length | 70.9mm |
| Weight | 1 lb | Material | :Steel |
| Packaging | Tray | Shell Size | :DD |
| Wire Gauge | 28-26 | Termination | IDC, Ribbon Cable |
| Contact Type | Signal | Mounting Type | Panel Mount |
| Shell Plating | Bright Nickel | Angle of Throw | Straight |
| Connector Type | Plug, Male Pins | Contact Finish | Nickel |
| Flange Feature | Housing/Shell (4-40) | Mounting Style | Wire |
| Number of Rows | 3 | Package / Case | :Steel, tin Plating over copper |
| Shell Material | Steel | Connector Style | D-Sub |
| Material - Body | :Metal | Contact Material | Copper Alloy |
| Housing Material | Polyester, Glass Filled | Length - Overall | 70.9 mm |
| Primary Material | D-Subminiature | Size / Dimension | 70.9 x 15.2 x 24.49mm |
| Color - Connectors | :Grey | Number of Contacts | 50 |
| Contact Termination | :IDC / IDT | Number of Positions | 50 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | 30µin (0.76µm) |
| Shell Size, Connector Layout | 5 (DD, D) | ||
Product Info
| Type | D-Subminiature | Gender | Male |
| Series | 8250 | Features | Feed Through, Grounding Indents |
| CAD Drawing | 3D CAD Model | Manufacturer | 8250 |
| Number of Ports | 1 Port | ||
Environmental
| Mating Cycles | :200 | Operating Temperature | -55°C ~ 105°C |
Documents & Media
