7443556680
| Manufacturer | |
| Description | Fixed Inductors 6.8uH, 10mA DCR MAX=4.1, +/-20% INDUCTOR POWER 6.8UH 18.5A SMD Inductor SMD high current WE-HCI 6.8uH Fixed Inductors WE-HCI Inductor 6.8uH 100kHz 18.5A INDUCTOR, SMD, LO 6.8UH Wurth WE-HCI 系列 屏蔽 WE-Perm2芯材 绕线贴片电感器, 6.8 μH ±20%, 27A Idc |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | High Current Inductors | Other Names | 732-2174-2 |
| Product Category | Fixed Inductors | Standard Package | 150 |
| Factory Pack Quantity | 150 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045095 | ||
Electrical
| Core Type | :Shielded | Tolerance | 20 % |
| Inductance | 6.8 uH | Range deg/s | :WURTH ELEKTRONIK - WE-HCI Series |
| Test Frequency | 100 kHz | Inductance Range | :± 20% |
| DC Resistance (DCR) | 4.1 mOhm | Current Rating (Max) | 18.5 A |
| DC Resistance (DCR) (Max) | :4100µohm | Frequency - Self Resonant | 24 MHz |
| Current - Saturation (Isat) | :27A | Current Saturation - Series | 27A |
| Resistance - Initial (Ri) (Min) | 4.1 mOhms | Current - On State (It (RMS)) (Max) | :18.5A |
Mechanical
| Depth | 18.2mm | Width | 18.2 mm |
| Height | 8.9mm | Length | 18.3mm |
| Weight | 0.0016 | Packaging | Reel |
| Shielding | Shielded | Shield Type | Yes |
| Core Material | WE-PERM 2 | Mounting Type | Surface Mount |
| Number of Pins | :2 | Package / Case | 8.9 mm |
| Size / Dimension | 18.2 mm W x 18.3 mm L x 8.9 mm H | Termination Style | SMD/SMT |
| Dimensions - Overall | :18.3mm x 18.2mm x 8.9mm | Height - Seated (Max) | 0.362" (9.20mm) |
Product Info
| Type | SMD Flat Wire High Current Inductor | Series | WE-HCI |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Online Document
Online Document
Online Document
PDF Document
PDF Document
PDF Document
Similar Parts

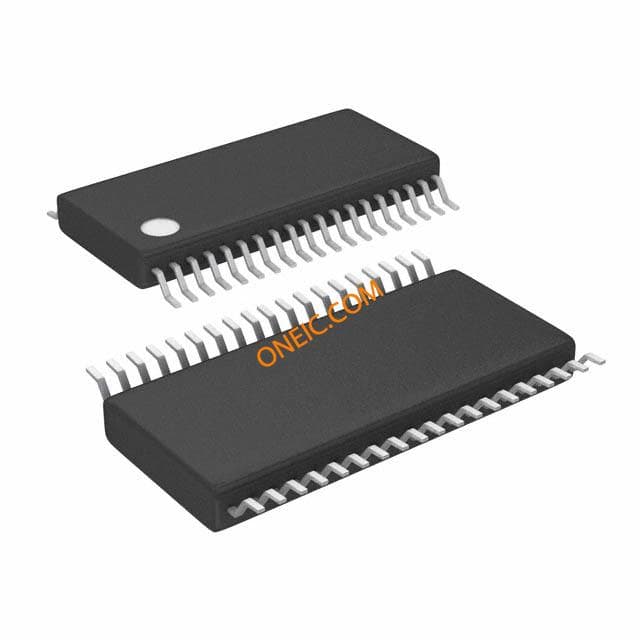

LT3791EFE#PBF
Analog Devices, Inc.
LED DRVR 9V/12V/15V/18V/24V 38-Pin TSSOP EP IC LED DRVR CONTROL 38TSSOP DRIVER, LED, BUCK/BOOST, 100W, 38TSSOP LED 驱动器, 4.7 → 60 V, 38引脚 TSSOP封装
$57.9285
Details
.jpg&w=3840&q=75)

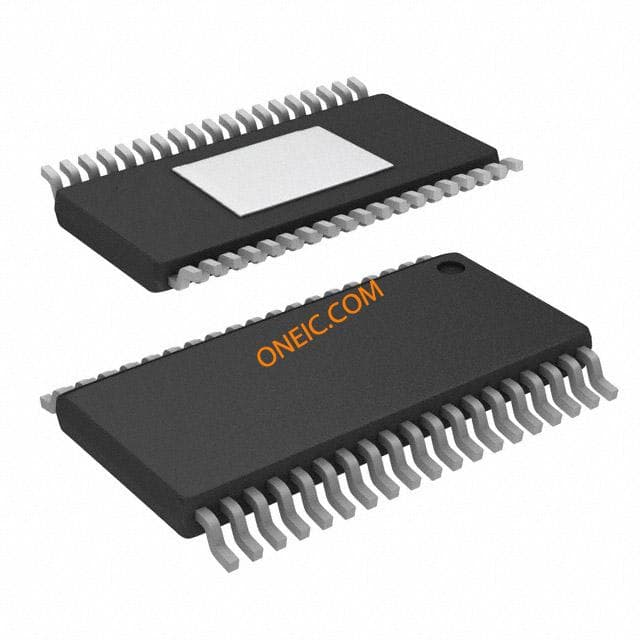

LT3791EFE-1#PBF
