LT3791EFE#PBF
| Manufacturer | |
| Description | LED DRVR 9V/12V/15V/18V/24V 38-Pin TSSOP EP IC LED DRVR CONTROL 38TSSOP DRIVER, LED, BUCK/BOOST, 100W, 38TSSOP LED 驱动器, 4.7 → 60 V, 38引脚 TSSOP封装 |
| Category |
Business
| Other Names | LT3791EFEPBF | Standard Package | 50 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Dimming | :Analogue, PWM | Frequency | 200kHz ~ 700kHz |
| Efficiency | :98.5% | Voltage Rating | :60V |
| Current - Output | :10A | Voltage - Supply | 4.7 V ~ 60 V |
| Number of Outputs | 1 | Frequency - Switching | :700kHz |
| Voltage - Input (Min) | 0 V ~ 60 V | Voltage - Supply (Min) | 4.7 V |
| Constant Current Load - Max | Yes | Common Mode Transient Immunity (Min) | Extended |
| Voltage - Continuous Operating (Max) (MCOV) | :60V | ||
Mechanical
| Weight | 0.000426 | Packaging | Tube |
| Case Color | :TSSOP | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Number of Pins | :38 |
| Package / Case | 38-TFSOP (0.173", 4.40mm Width) Exposed Pad | Package Cooled | TSSOP EP |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | TSSOP EP |
| Number of Positions | 38 | Supplier Device Package | 38-TSSOP Exposed Pad |
Product Info
| Type | Automotive, General Purpose | Topology | PWM, Step-Down (Buck), Step-Up (Boost) |
| Base Unit | :3791 | Number of Segments | 9 |
| Internal Connection | No | Application Specifics | :Lighting |
Environmental
| Operating Temperature | -40°C ~ 125°C | Operating Temperature - Junction | 125C |
Documents & Media
Similar Parts
7443556680
Wurth Electronics
Fixed Inductors 6.8uH, 10mA DCR MAX=4.1, +/-20% INDUCTOR POWER 6.8UH 18.5A SMD Inductor SMD high current WE-HCI 6.8uH Fixed Inductors WE-HCI Inductor 6.8uH 100kHz 18.5A INDUCTOR, SMD, LO 6.8UH Wurth WE-HCI 系列 屏蔽 WE-Perm2芯材 绕线贴片电感器, 6.8 μH ±20%, 27A Idc
DC1666A
Analog Devices, Inc.

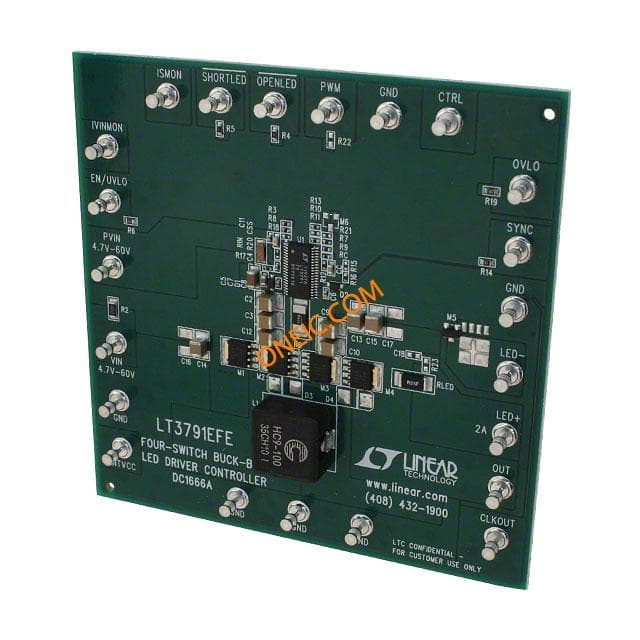

BOARD DEMO LED DRIVER LT3791 EVAL BOARD, LT3791 2A LED DRIVER
