690357102072
| Manufacturer | |
| Description | CONN 2.54MM MALE STR PCB TH 20P Wurth Elektronik 6903 Series 1.27, 2.54mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 1.5A Headers & Wire Housings WR-MM CONN 2.54MM MALE STR PCB TH 20P PLUG, 2.54/1.27MM, 20WAY Wurth Elektronik WR-MM MiniModule 系列 1.27 mm, 2.54 mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 1.5A , 表面安装 |
| Category |
Business
| Other Names | 732-1987-5 | Standard Package | 20 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Range deg/s | :WURTH ELEKTRONIK - WR-MM Series | Voltage Rating | 100 V ac |
| Current Rating (Max) | 1.5A | Insulation Resistance | 1000 MOhms |
Mechanical
| Color | Red | Pitch | 0.100" (2.54mm) |
| Weight | 0.0006 | Packaging | Tube |
| Row Spacing | 0.100" (2.54mm) | Termination | Press-Fit |
| Contact Type | Male Pin | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 20 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 20 |
Product Info
| Type | Board to Board | Gender | :Plug |
| Series | 6903 | Product Type | Connectors |
| Application Specifics | Wire-to-Board | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 40 C to + 105 C | ||
Documents & Media
Similar Parts

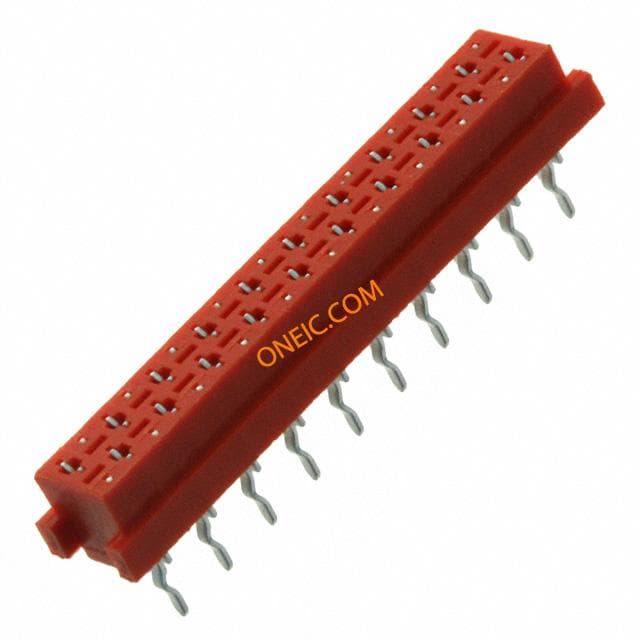

690367182072
Wurth Electronics Inc
CONN 2.54MM FEMALE STR RED 20POS Wurth Elektronik 6903 Series 2.54, 1.27mm 20 Way 2 Row Straight PCB Socket Through Hole Board to Board Headers & Wire Housings WR-MM CONN 2.54MM FEMALE STR RED 20POS SOCKET, 2.54/1.27MM, 20WAY Wurth Elektronik 6903 系列 2行 20路 直 1.27 mm, 2.54 mm节距 通孔 印刷电路板插座, 板对板

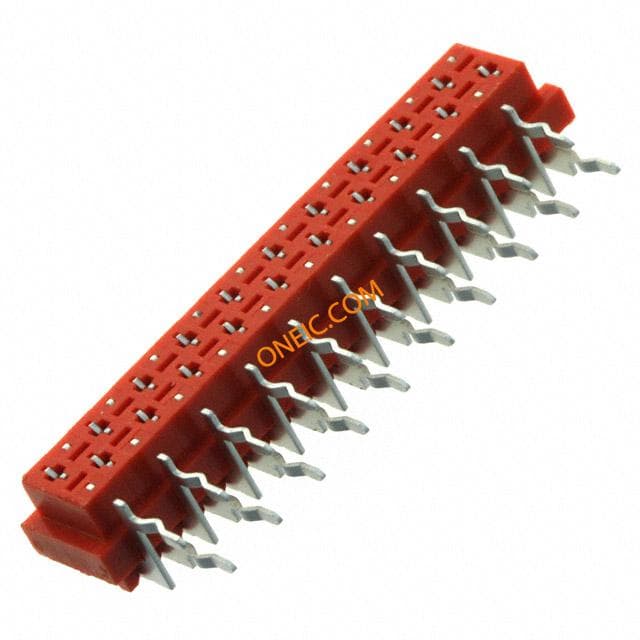

690368172072
Wurth Electronics Inc
CONN 2.54MM FEM ANGLED POLAR 20P Wurth Elektronik 6903 Series 2.54, 1.27mm 20 Way 2 Row Straight PCB Socket Through Hole Board to Board Headers & Wire Housings WR-MM CONN 2.54MM FEM ANGLED POLAR 20P Wurth Elektronik 6903 系列 2行 20路 直 1.27 mm, 2.54 mm节距 通孔 印刷电路板插座, 板对板

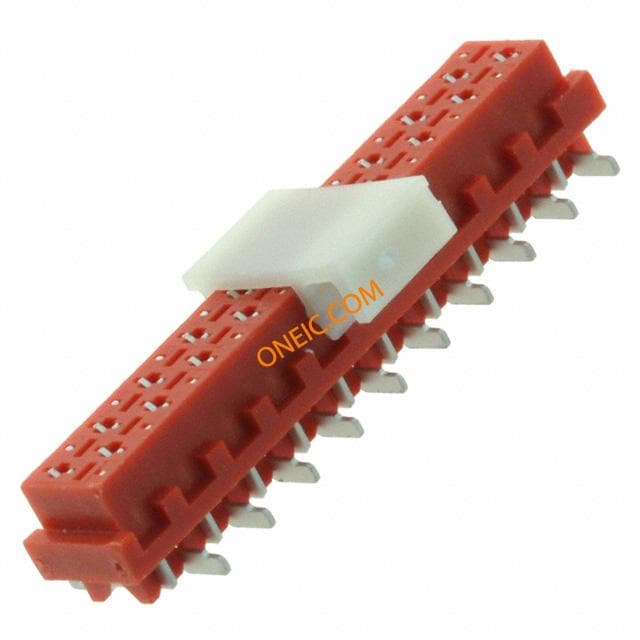

690367282076
