690157002072
| Manufacturer | |
| Description | CONN 2.54MM IDC MALE RED 20POS 20 way male connector IDC 2.54mm Headers & Wire Housings WR-MM CONN 2.54MM IDC MALE RED 20POS PLUG, 2.54/1.27MM, FREE, IDC, 20WAY Wurth Elektronik 6901 系列 2行 20路 1.27 mm, 2.54 mm节距 公 IDC 连接器 , 电缆安装 |
| Category |
Business
| Other Names | 732-1993-5 | Standard Package | 20 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Range deg/s | :WURTH ELEKTRONIK - WR-MM Series | Voltage Rating | 100 V ac |
| Current Rating (Max) | 1A | Insulation Resistance | 1000 MOhms |
Mechanical
| Color | Red | Pitch | 0.100" (2.54mm) |
| Weight | 0.0006 | Packaging | Tube |
| Wire Type | Ribbon Cable | Wire Gauge | 28 AWG |
| Row Spacing | 0.059" (1.50mm) | Termination | IDC |
| Contact Type | Male Pin | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug | Contact Finish | Tin |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | PBT | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 20 | Contact Termination | :IDC / IDT |
| Number of Positions | 20 | ||
Product Info
| Gender | Male | Series | 6901 |
| Features | Feed Through | Product Type | Connectors |
| Application Specifics | Wire-to-Board | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
135-2801-020
Amphenol Spectra-Strip
Flat Cables 3C Color Coded Cable .050 Zip 20 Cond Flat Cable 20Conductors 28AWG Tinned Copper 300V 1A RIBBON CABLE, 20WAY, PER M RIBBON CABLE, 20WAY, 30.5M FLAT CABLE, 20COND, 100FT, 28AWG, 300V cable, flat(planar), color coded pvc insulation, 20 conductors, 28 awg stranded Cable: ribbon; 1.27mm; stranded; Cu; 20x28AWG; PVC; 300V; 30,5m Ribbon Cable 1.27 mm 20x0.080 mm², 135-2801-020, Amphenol Amphenol Spectra-Strip 系列 20 路 无屏蔽 带状电缆, 25.53 mm 宽
690367182072
Wurth Electronics Inc
CONN 2.54MM FEMALE STR RED 20POS Wurth Elektronik 6903 Series 2.54, 1.27mm 20 Way 2 Row Straight PCB Socket Through Hole Board to Board Headers & Wire Housings WR-MM CONN 2.54MM FEMALE STR RED 20POS SOCKET, 2.54/1.27MM, 20WAY Wurth Elektronik 6903 系列 2行 20路 直 1.27 mm, 2.54 mm节距 通孔 印刷电路板插座, 板对板

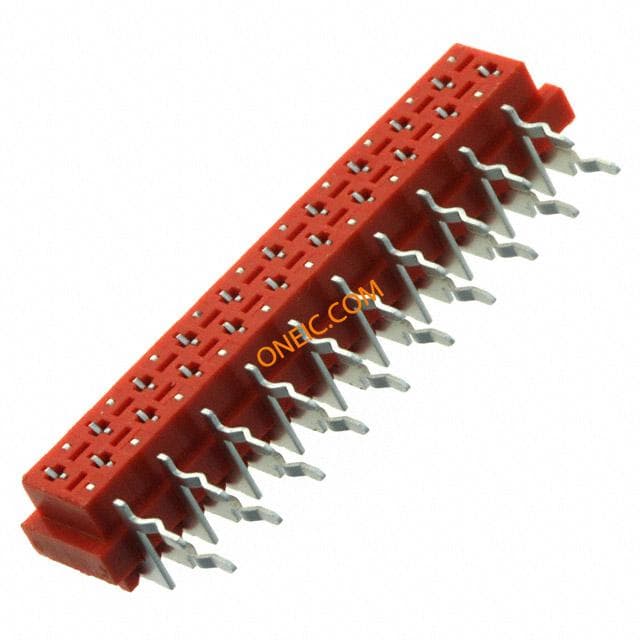

690368172072
