687616050002
| Manufacturer | |
| Description | CONN ZIF .50MM TYPE 1 16P 50MM WR-FFC 0.50mm Cable Type 1 16pin 50mm FFC / FPC Jumper Cables WR-FFC 0.50mm Type 1 16p 50mm CABLE, FFC, 0.5MM, 50MM, 16WAY Wurth Elektronik 6876 系列 50mm FFC 跳线电缆, 0.5mm节距, 500 mA, 60 V 交流 |
| Category |
Business
| Other Names | 732-3561 | Standard Package | 50 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85444993 | ||
Electrical
| Core Type | 1/0.035 mm | Voltage Rating | 60 V ac |
| Conductor Strand | Solid | Current Rating (Max) | 500 mA |
| Number of Conductors | 16 | ||
Mechanical
| Pitch | 0.020" (0.50mm) | Width | 8.5 mm |
| Length | 1.97" (50.00mm) | Weight | 0.002 |
| Packaging | Bulk | Wire Type | FPC |
| Cable Type | FFC | Cable Group | :FFC, FPC |
| Cable Length | 50 mm | Jacket Color | :White |
| Mounting Type | Straight | Connector Type | :- |
| Contact Finish | Tin | Mounting Style | PCB |
| Contact Material | Copper | Housing Material | Polyethylene Terephthalate |
| Termination Style | Top on Both Sides, Backers Both Sides | Color - Connectors | White |
| Number of Contacts | 16 | Length - Exposed Ends | 0.157" (4.00mm) |
| Switch Actuation Level | ZIF | Contact Layout, Typical | Same Side Contacts |
| Number of Cores/Bus Width | 1 | Wire Gauge or Range - AWG | 0.035 mm |
| Number of Positions/Bay/Row | 16 | ||
Product Info
| Series | WR-FPC | Product Type | Flex Jumpers |
Environmental
| Temperature Range | -30 C to + 85 C | Operating Temperature | +105°C |
Documents & Media
Similar Parts

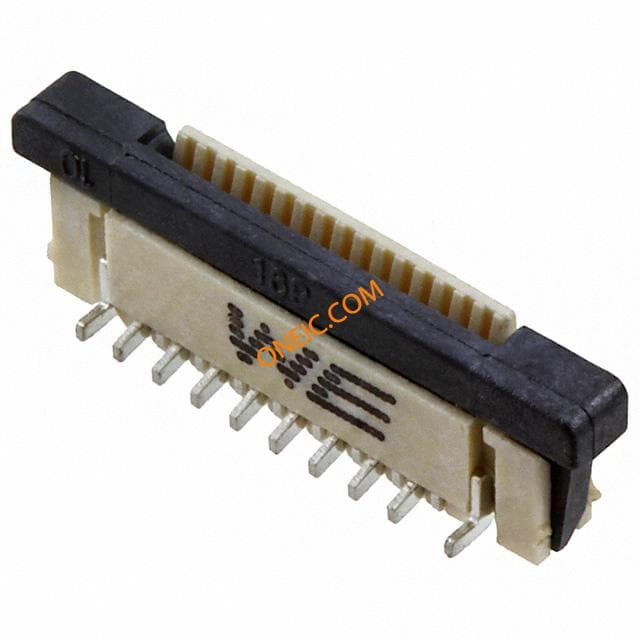

687316124422
Wurth Electronics Inc
CONN ZIF .50MM SMT TYPE A 16P Wurth Elektronik 687 Series 0.5mm 16 Way 1 Row Straight PCB Socket Surface Mount Wire to Board FFC & FPC Connectors WR-FPC 0.5mm SMT ZIF Vert TypeA 16pin FFC FPC, SMT, 0.5MMVERT, 16WAY Wurth Elektronik 687 系列 0.5mm 节距 16 路 直 SMT FPC 连接器

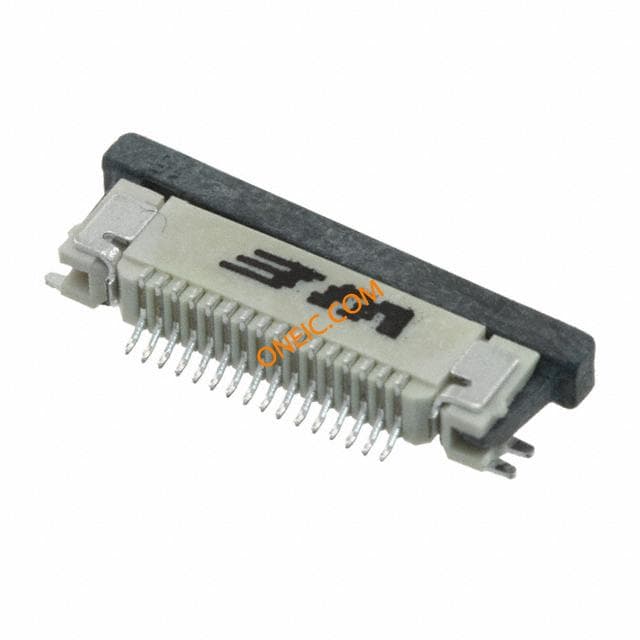

68711614522
