68711614522
| Manufacturer | |
| Description | CONN ZIF .50MM HORZ BOTT SMD 16P Wurth Elektronik 687 Series 0.5mm 16 Way 1 Row Straight PCB Socket Surface Mount Wire to Board FFC & FPC Connectors WR-FPC 0.5mm ZIF 16P Bottom Contact Wurth Elektronik 687 系列 0.5mm 节距 16 路 直 SMT FPC 连接器 |
| Category |
Business
| Other Names | 732-2015-2 | Standard Package | 2,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 50V | Current Rating (Max) | 0.5A |
| Insulation Resistance | 100 MOhms | ||
Mechanical
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Orientation | 直 | Termination | Solder |
| Mounting Type | Surface Mount, Right Angle | Cable End Type | Tapered |
| Connector Type | Bottom Contacts | Contact Finish | Tin |
| Number of Rows | 1 | Locking Feature | Flip Lock |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer (LCP) |
| Termination Rows | 焊针 | Termination Style | SMD |
| FFC, FCB Thickness | 0.30mm | Height Above Board | 0.079" (2.00mm) |
| Number of Contacts | 16 | Number of Positions | 16 |
| Contact Layout, Typical | Bottom Contact | Contact Finish Thickness | 100µin (2.54µm) |
Product Info
| Type | Wire to Board | Series | 687 |
| Features | Zero Insertion Force (ZIF) | Product Type | Board Mount |
Environmental
| Temperature Range | - 25 C to + 85 C | Operating Temperature | -25°C ~ 85°C |
Documents & Media
Similar Parts

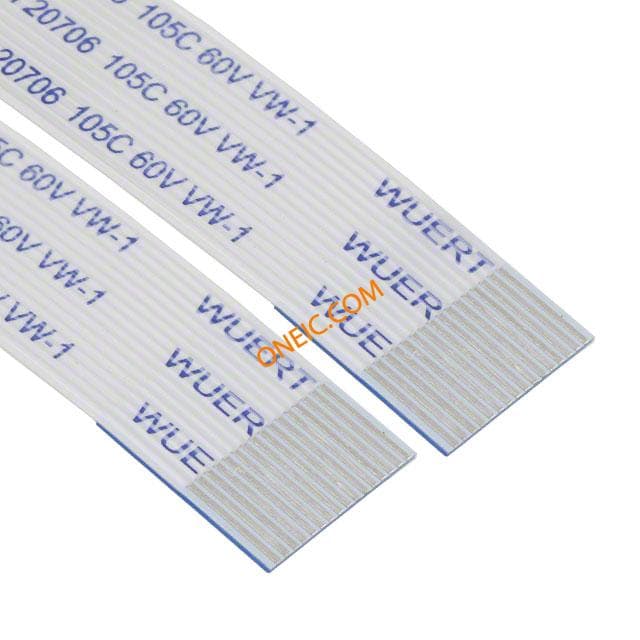

687616050002
Wurth Electronics Inc
CONN ZIF .50MM TYPE 1 16P 50MM WR-FFC 0.50mm Cable Type 1 16pin 50mm FFC / FPC Jumper Cables WR-FFC 0.50mm Type 1 16p 50mm CABLE, FFC, 0.5MM, 50MM, 16WAY Wurth Elektronik 6876 系列 50mm FFC 跳线电缆, 0.5mm节距, 500 mA, 60 V 交流

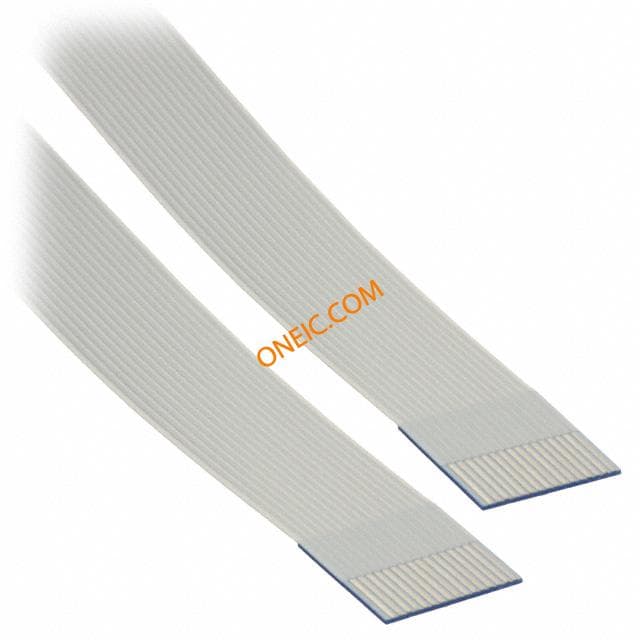

687616200002
Wurth Electronics Inc
CONN ZIF .50MM TYPE 1 16P 200MM WR-FFC 0.50mm Cable Type 1 16pin 200mm FFC & FPC Connectors WR-FFC 0.50mm Type 1 16p 200mm CABLE, FFC, 0.5MM, 200MM, 16WAY Wurth Elektronik 6876 系列 200mm FFC 跳线电缆, 0.5mm节距, 500 mA, 60 V 交流

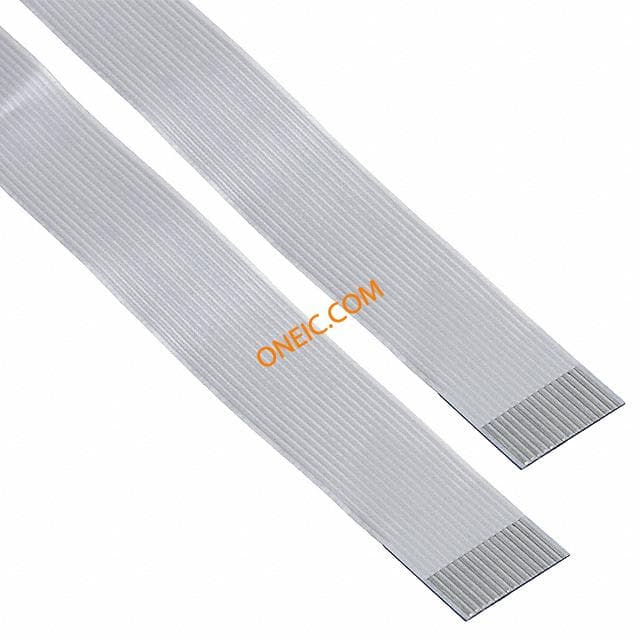

687716200002
