662008113322
| Manufacturer | |
| Description | RECEPTACLE 3MM FEMALE DUAL 8POS Headers & Wire Housings WR-MPC3 RECPTL 3.0MM FEMALE DUAL 8POS HOUSING, RECEPTACLE, DUAL ROW, 8 WAY Wurth Elektronik WR-MPC3 系列 2 行 3mm 节距 8 路 直 母 电缆安装 PCB 连接器外壳 |
| Category |
Business
| Other Names | 732-1961 | Standard Package | 1,000 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 5 A |
| Insulation Resistance | 1000 MOhms | ||
Mechanical
| Color | Black | Pitch | 0.118" (3.00mm) |
| Weight | 1.23 | Packaging | Bulk |
| Row Spacing | 0.118" (3.00mm) | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Number of Rows | 2 |
| Material - Body | :Nylon 6.6 (Polyamide 6.6) | Housing Material | Nylon |
| Termination Style | SMD | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 8 | Contact Termination | Crimp |
| Number of Positions | 8 | ||
Product Info
| Note | Contacts Not Provided | Gender | :Socket |
| Series | WR-MPC3 | Product Type | Plugs - Housings |
| Application Specifics | Wire-to-Board | ||
Environmental
| Operating Temperature | - 25 C to + 105 C | ||
Documents & Media
Similar Parts
794617-8
te connectivity / amp
Conn Housing RCP 8 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 8POS DL MATE-N-L 8 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 8P Conn Housing RCP 8 POS 3mm Crimp ST Cable Mount Conn Housing RCP 8 POS 3mm Crimp ST Cable Mount Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 8Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, 8 WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;8;Dual;0.118in.;UL94V-0 Plug; wire-board; female; PIN:8; w/o terminals; 3mm; for cable Crimp housing Pitch3 mm Poles 2 x 4 MATE-N-LOK Micro, 794617-8, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 8 路 直 母 压接连接器外壳 8POS,MICRO MNL,RCPT HSG
66200113722DEC
Wurth Electronics Inc
TERMINAL 3MM FEMALE 20-24AWG CONTACT, SKT, 24-20 AWG, CRIMP Wurth Elektronik WR-MPC3 系列 母 锡 铜合金触点 DIN 连接器触点

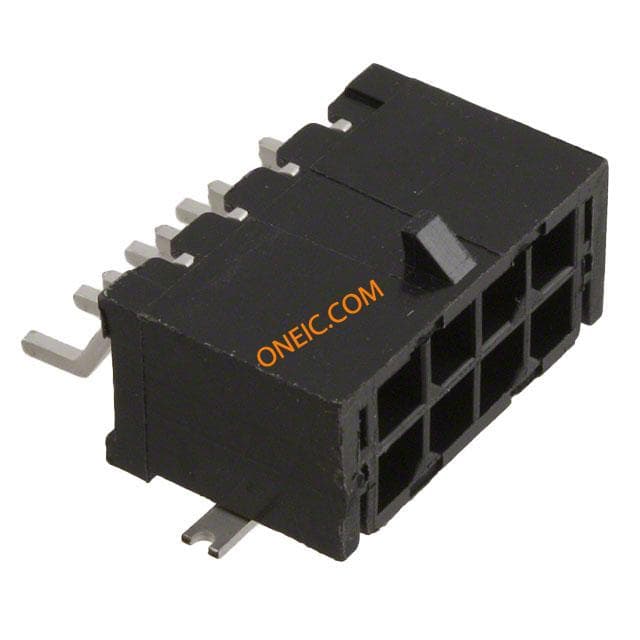

662008231722
Wurth Electronics Inc
HEADER 3MM MALE DUAL ANG 8P SMD Headers & Wire Housings WR-MPC3 HDR 3.0MM MALE DUAL ANG 8P SMD HEADER, 3MM, DUAL, R/A, SMT, 8WAY Wurth Elektronik WR-MPC3 系列 3mm节距 8路 (2排) 直角 PCB 针座, 焊接端接, 5A , 通孔

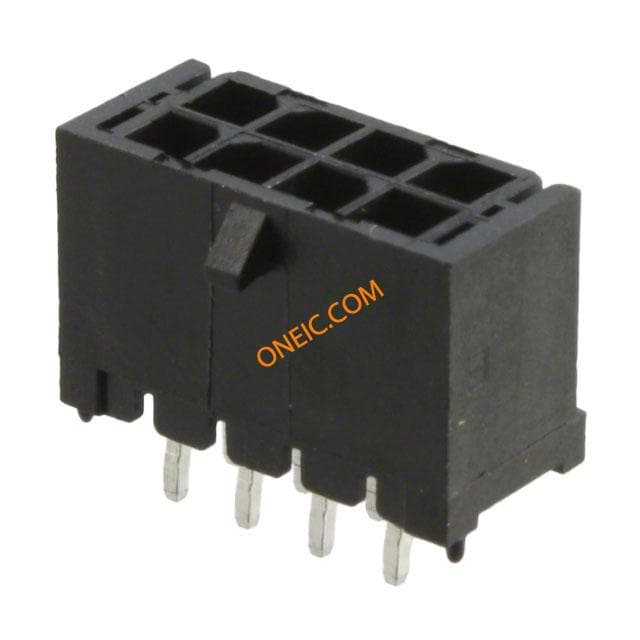

66200821122
Wurth Electronics Inc
HEADER 3.00MM DUAL VERT 8POS Headers & Wire Housings WR-MPC3 3.00mm HDR 8P Dual Vertical HEADER, 3MM, DUAL, VERT, 8WAY Wurth Elektronik WR-MPC3 系列 3mm节距 8路 (2排) 直 PCB 针座, 焊接端接, 5A , 通孔
662100124015
Wurth Electronics Inc
WR-MPC3 3,00 MM PRE-CRIMPED CONT CRIMP LEAD, SKT, 3MM, 20-24AWG, 150MM Wurth Elektronik WR-MPC4 系列 母 预压接电线, 压接
662162120030
Wurth Electronics Inc
WR-MPC3 3,00 MM PRE-CRIMPED CONT CRIMP LEAD, SKT, 3MM, 20-24AWG, 300MM Wurth Elektronik WR-MPC4 系列 母 预压接电线, 压接

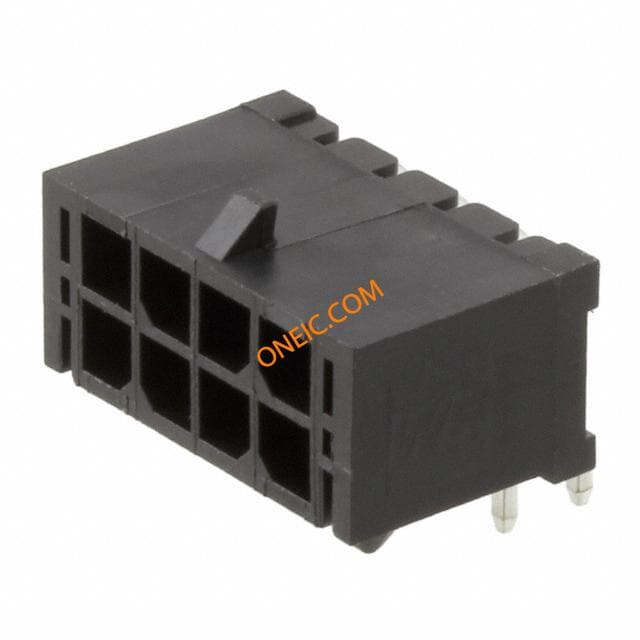

66200821022
Wurth Electronics Inc
WR-MPC3 MICRO POWER CONNECTOR HEADER, 3MM, DUAL, R/A, PEG, 8WAY WR-MPC3 POWER CONNECTOR 8POS Wurth Elektronik WR-MPC3 系列 3mm节距 8路 (2排) 直角 PCB 针座, 焊接端接, 5A , 通孔

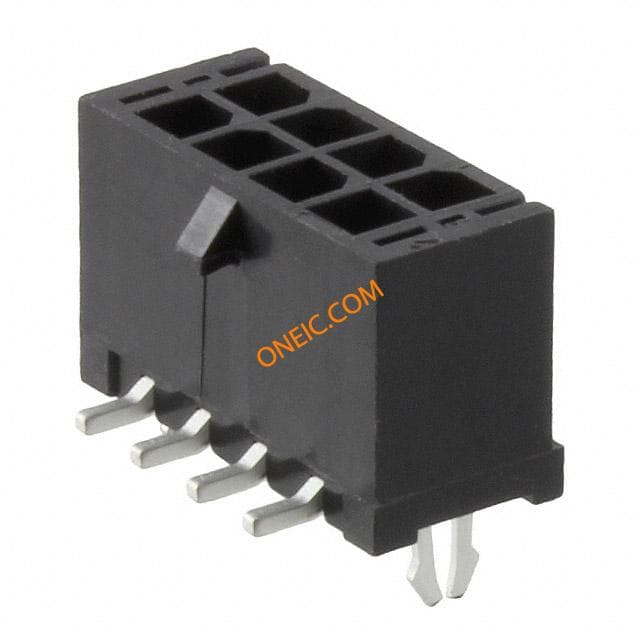

662008235922
Wurth Electronics Inc
WR-MPC3 MICRO POWER CONNECTOR HEADER, 3.0MM, DUAL ROW, CLIP, 8WAY WR-MPC3 POWER CONNECTOR 8POS Wurth Elektronik WR-MPC3 系列 3mm节距 8路 (2排) 直 PCB 针座, 焊接端接, 5A , 表面安装

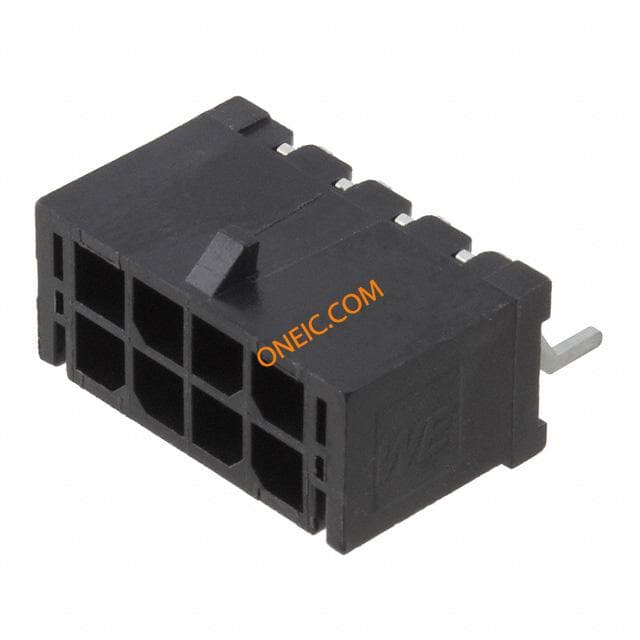

662008236022
Wurth Electronics Inc
WR-MPC3 MICRO POWER CONNECTOR HEADER, 3MM,DUAL ROW R/A, PEGS,8WAY WR-MPC3 POWER CONNECTOR 8POS Wurth Elektronik WR-MPC3 系列 3mm节距 8路 (2排) 直角 PCB 针座, 焊接端接, 5A , 表面安装

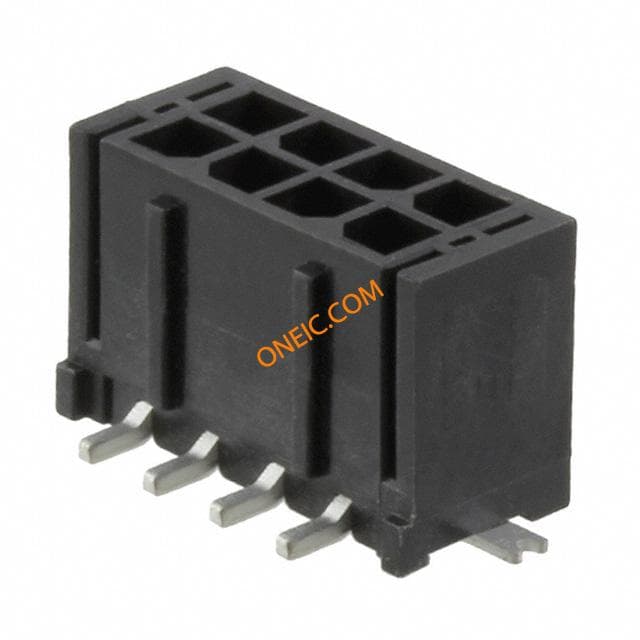

662008231822
