794617-8
| Manufacturer | |
| Description | Conn Housing RCP 8 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RCPT 3MM 8POS DL MATE-N-L 8 way 2 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT DUAL ROW 8P Conn Housing RCP 8 POS 3mm Crimp ST Cable Mount Conn Housing RCP 8 POS 3mm Crimp ST Cable Mount Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 8Number of Rows = Dual3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp,
low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, 8 WAY, NYLON Connector,SoftShell;Nylon;Receptacle;Black;8;Dual;0.118in.;UL94V-0 Plug; wire-board; female; PIN:8; w/o terminals; 3mm; for cable Crimp housing Pitch3 mm Poles 2 x 4 MATE-N-LOK Micro, 794617-8, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 2 行 3mm 节距 8 路 直 母 压接连接器外壳 8POS,MICRO MNL,RCPT HSG |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 V | Voltage - Working | :250V |
| Current Rating (Max) | 5 A | Voltage - Supply (Min) | 250VAC |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Black | Depth | 14.04mm |
| Pitch | 3 mm | Width | 11.7mm |
| Height | 11.7 mm | Length | 13mm |
| Weight | 0.081 | Material | :Nylon |
| Packaging | Bulk | Wire Gauge | 20 AWG |
| Row Spacing | 0.118" (3.00mm) | Contact Type | Female Socket |
| Pitch - Post | 3mm | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Mounting Style | Wire |
| Number of Rows | 2 | Package / Case | Receptacle |
| Contact Material | Phosphor Bronze | Housing Material | Nylon |
| Length - Overall | 3.00 [0.118] | Package Quantity | 1 |
| Connector - Cable | plug | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :Black |
| Number of Contacts | 8 | Contact Termination | Crimp |
| Number of Positions | 8 | 1st Connector Mounting Feature | 2x4 |
Product Info
| Spg | 1 | Note | Contacts Not Provided |
| Type | Housing | Gender | RCP |
| Series | MATE-N-LOK | CAD Drawing | 3D CAD Model |
| Product Type | Housing | Adapter Series | Micro MATE-N-LOK |
| Number of Units | 1 | For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts

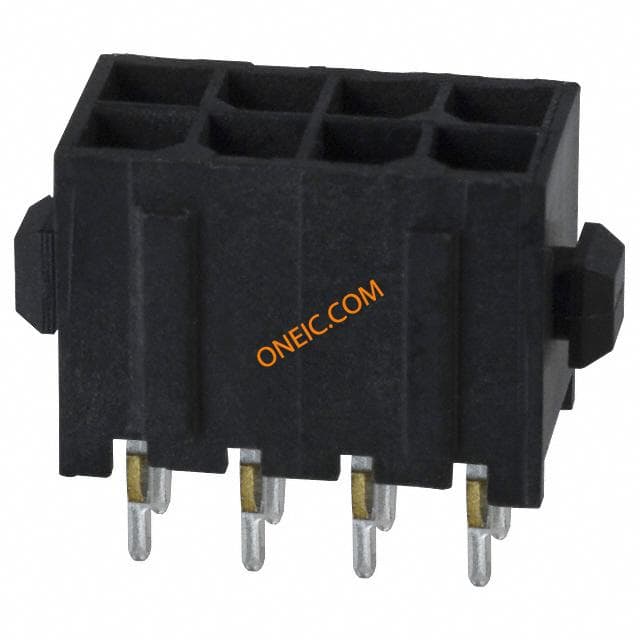

3-794632-8
te connectivity / amp
Conn Power HDR 8 POS 3mm Solder ST Thru-Hole 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS DUAL GOLD Power to the Board HDR VERT 8 POS 30 AU DUAL Conn Power HDR 8 POS 3mm Solder ST Thru-Hole 8 Terminal 1 Port Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET CONNECTOR, HEADER 8POS 3MM TE Connectivity Micro MATE-N-LOK 系列 3mm节距 8路 (2排) 直 PCB 针座, 焊接端接, 5A , 通孔 08P MICRO MNL ASSY,VRT,HDR,LF
794632-8
te connectivity / amp
Conn Power HDR 8 POS 3mm Solder ST Thru-Hole 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS DUAL GOLD Power to the Board HDR VERT 8 POS 30 AU DUAL 3mm Centerline, 250V, 5 A max. Product Highlights:HeaderConnector Type = Header - PinThrough Hole Contact Termination Type8 PositionsNumber of Rows = 2Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

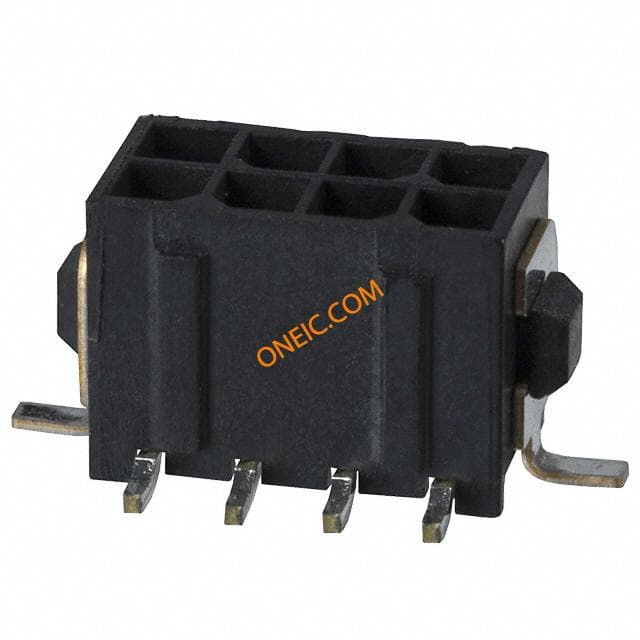

3-794638-8
te connectivity / amp
Conn Power HDR 8 POS 3mm Solder ST SMD 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS DUAL GOLD SMD Power to the Board HDR ASSY 8 POS 30 AU VERT SMT 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorConnector Type = Header - PinSurface Mount Contact Termination Type8 PositionsNumber of Rows = 2Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector 08P MICRO MNL ASSY,VRT,SMT,LF
794624-8
te connectivity / amp
Conn Power HDR 8 POS 3mm Solder RA SMD 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS DL R/A TIN SMD Pin & Socket Connectors 8POS MICRO MNL ASSY R/A SMT 8POS MICRO MNL ASSY,R/A,SMT 8POS MICRO MNL ASSY,R/A,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
3-794630-8
te connectivity / amp
Conn Power HDR 8 POS 3mm Solder ST Thru-Hole 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 8POS DUAL TIN TE Connectivity MATE-N-LOK Series 3mm Pitch 8 Way Straight Heavy Duty Power Connector, Solder Termination, 5A Pin & Socket Connectors HDR VERT 8 POS TIN DUAL Conn Power HDR 8 POS 3mm Solder ST Thru-Hole 8 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 8Number of Rows = DualVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADER, VERTICAL, 3MM, DUAL ROW, 8 WAY 8WD/ROWPINHDRVERT Pin header Pitch3 mm Poles 8 Contact DesignMale MATE-N-LOK, 3-794630-8, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 8路 直 PCB 针座, 焊接端接, 5A , 通孔 08P MICRO MNL ASSY VRT HDR LF
794627-8
te connectivity / amp
Conn Power HDR 8 POS 3mm Solder RA SMD 8 Terminal 1 Port Pin & Socket Connectors HDR ASSY 8P TIN 3mm Centerline, 250V, 5 A max. CONN HDR 8POS DUAL R/A TIN SMD 8POS MICRO MNL ASSY,R/A,SMT 8POS MICRO MNL ASSY,R/A,SMT Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
794679-8
te connectivity / amp
Conn Power HDR 8 POS 3mm Solder RA Thru-Hole 8 Terminal 1 Port Pin & Socket Connectors 8POS MICRO MNL ASSY R/A THRU 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS DL R/A 30GOLD 8POS MICRO MNL ASSY,R/A,THRU 8POS MICRO MNL ASSY,R/A,THRU Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
794677-8
te connectivity / amp
Conn Power HDR 8 POS 3mm Solder RA Thru-Hole 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS DL R/A TIN T/H Pin & Socket Connectors 8POS MICRO MNL ASSY R/A THRU 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 8Number of Rows = DualRight Angle Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
794680-8
te connectivity / amp
Conn Power HDR 8 POS 3mm Solder ST Thru-Hole 8 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS DUAL VERT TIN Pin & Socket Connectors 8POS MICRO MNL ASSY VRT THRU 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 8Number of Rows = DualVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
794637-8
te connectivity / amp
Conn Power HDR 8 POS 3mm Solder ST SMD 8 Terminal 1 Port Pin & Socket Connectors 8POS MICRO MNL ASSY 5250 3mm Centerline, 250V, 5 A max. CONN HEADER 8POS DL 15GOLD SMD 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 8Number of Rows = DualVertical Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

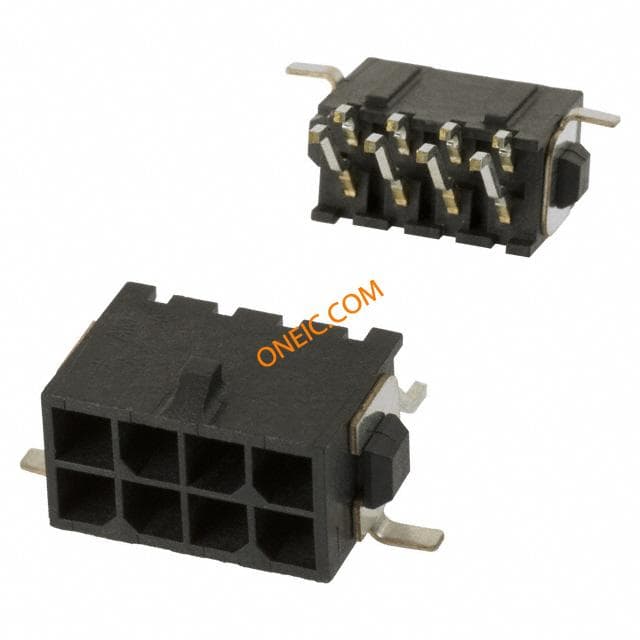

3-794627-8
