613064243121
| Manufacturer | |
| Description | HEADER 64POS SCKT R/A DL 2.54 MM Headers & Wire Housings WR-PHD Dual Socket Header 2.54mm 64p SOCKET, 2.54MM, DUAL, R/A, 64WAY Wurth Elektronik WR-PHD 系列 2.54mm节距 64路 (2排) 直角 印刷电路板插座, 焊接端接, 3A , 通孔 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 732-2866 | Standard Package | 40 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Range deg/s | :WURTH ELEKTRONIK - WR-PHD Series | Voltage Rating | 250 V |
| Current Rating (Max) | 3 A | Insulation Resistance | 1000 MOhms |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Weight | 0.003 | Packaging | Tray |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Female Socket | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header | Contact Finish | Gold |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Through Hole |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 64 |
| Contact Termination | :Through Hole Right Angle | Number of Positions | 64 |
Product Info
| Gender | :Socket | Series | WR-PHD |
| Product Type | Sockets - PCB | Application Specifics | Board-to-Board |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Online Document
Online Document
Online Document
PDF Document
PDF Document
PDF Document
Similar Parts

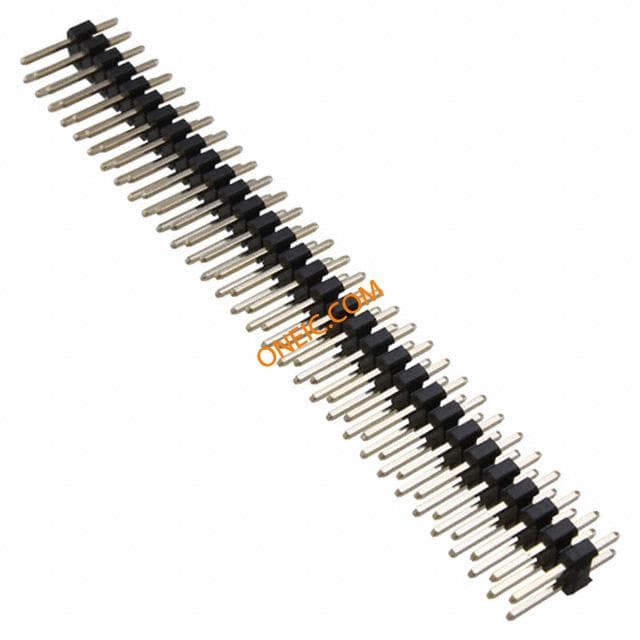

61306421121
Wurth Electronics Inc
CONN HEADER 64POS DL PIN 2.54MM Wurth Elektronik 613 Series 2.54mm Pitch 64 Way 2 Row Straight PCB Header, Solder Pin Termination, 3A Headers & Wire Housings WR-PHD 2.54mm Header 64P Dual CONNECTOR, HEADER, THT, 2.54MM, 64WAY Wurth Elektronik WR-PHD 系列 2.54mm节距 64路 (2排) 直 引脚管座, 焊针端接, 3A , 通孔
$9.0600
Details

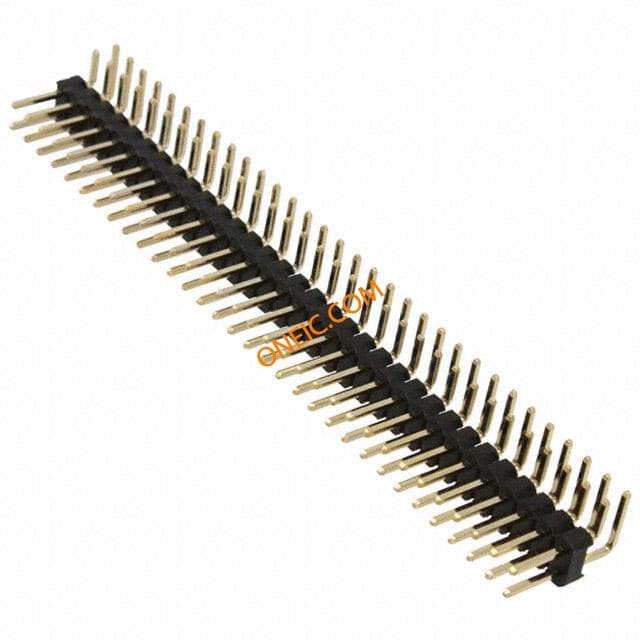

61306421021
