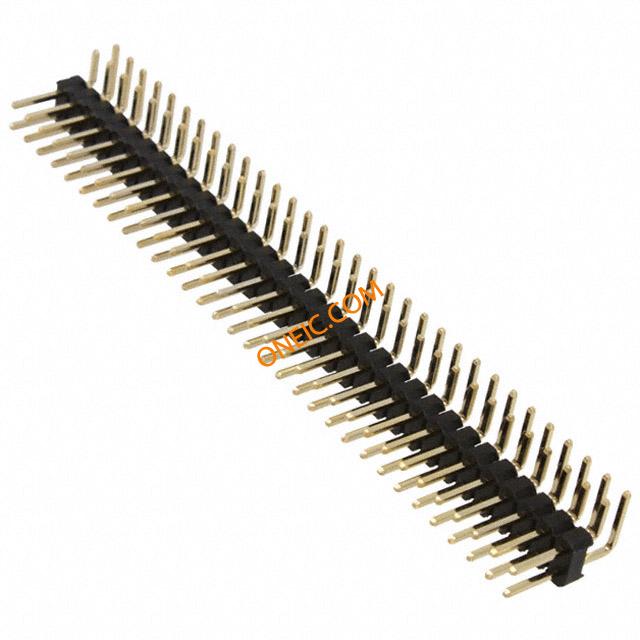

61306421021
| Manufacturer | |
| Description | CONN HDR 64POS R/A DL PIN 2.54MM Wurth Elektronik 613 Series 2.54mm Pitch 64 Way 2 Row Right Angle PCB Header, Solder Pin Termination, 3A Headers & Wire Housings WR-PHD 2.54mm Header 64P Angled Dual HEADER, 2.54MM, PIN, R/A, DUAL, 64WAY Wurth Elektronik WR-PHD 系列 2.54mm节距 64路 (2排) 直角 引脚管座, 焊针端接, 3A , 通孔 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 732-2677 | Standard Package | 100 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366930 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 250 V ac | Current Rating (Max) | 3A |
| Insulation Resistance | 1000 MOhms | ||
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Weight | 0.0045 | Packaging | Bulk |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Unshrouded | Contact Finish | Gold |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 64 |
| Contact Termination | :Through Hole Right Angle | Number of Positions | 64 |
| Contact Length - Mating | 0.236" (6.00mm) | ||
Product Info
| Type | Board to Board | Gender | :Header |
| Series | 613 | Product Type | Headers |
| Application Specifics | Board-to-Board | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Online Document
Online Document
Online Document
PDF Document
PDF Document
PDF Document
Similar Parts

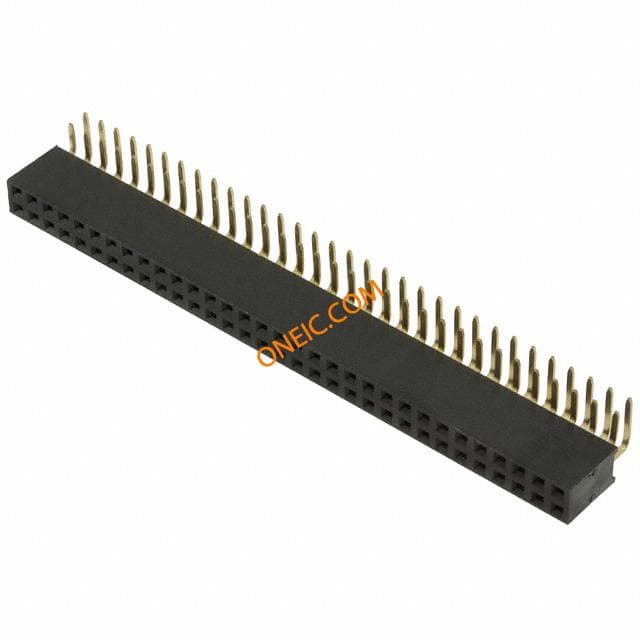

613064243121
