C4D40120D
| Manufacturer | |
| Description | Wolfspeed 开关 肖特基 二极管, 113A 1200V, 3针 TO-247封装 Schottky Diodes & Rectifiers SIC SCHOTTKY DIODE 1200V, 2x20A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Schottky Silicon Carbide Diodes | Factory Pack Quantity | 30 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage - Supply | 3V | Number of Elements | 2 |
| Diode Configuration | 切换 | Power - Average Forward | 532 W |
| Power Dissipation (Max) | 532W | Voltage Regulation - Load | 1.2 kV |
| Current - Peak Pulse (8/20us) | 130 A | Current - Reverse Leakage @ Vr | 400µA |
| Current - DC Forward (If) (Max) | 40 A | Current - Average Rectified (Io) | 113A |
| Voltage - Reverse Standoff (Typ) | 1200V | ||
Mechanical
| Width | 5.21mm | Height | 21.1mm |
| Length | 16.13mm | Mounting Type | 通孔 |
| Mounting Style | Through Hole | Number of Pins | 3 |
| Package / Case | TO-247-3 | Package Quantity | TO-247 |
| Size / Dimension | 16.13 x 5.21 x 21.1mm | ||
Product Info
| Function | Y | Diode Type | 肖特基 |
| Technology | SiC | Manufacturer | Wolfspeed / Cree |
| Configuration | Dual | ||
Environmental
| Operating Temperature | +175 °C | ||
Documents & Media
Similar Parts
SK 145/25 STS-220
FISCHER ELEKTRONIK
HEAT SINK, TO-220, ETC, 13.5°C/W
$9.0600
Details
SDP30S120
SEMISOUTH
DIODE, SIC, 1200V, 30A, TO247
$123.0120
Details
SDP60S120D
SEMISOUTH
DIODE, DUAL, SIC, 1200V, 60A, TO247
$250.9880
Details
C4D40120D
Wolfspeed
Wolfspeed 开关 肖特基 二极管, 113A 1200V, 3针 TO-247封装 Schottky Diodes & Rectifiers SIC SCHOTTKY DIODE 1200V, 2x20A
$255.0000
Details

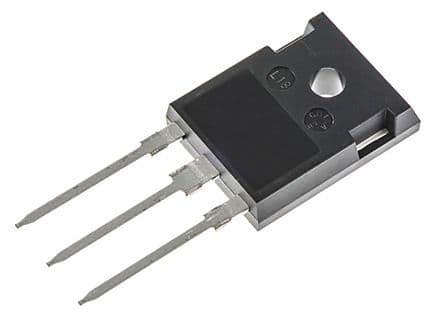

C4D30120D
