点击放大查看

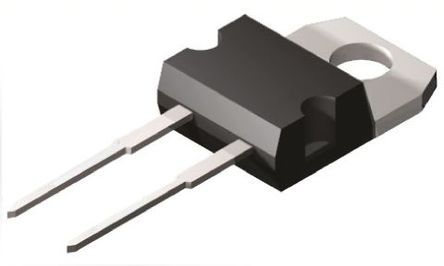

C4D20120A
| Manufacturer | |
| Description | Wolfspeed 肖特基 二极管, 20A 1200V, 2针 TO-220封装 Schottky Diodes & Rectifiers SIC SCHOTTKY DIODE 1200V, 20A |
| Category |
Business
| Product | Schottky Silicon Carbide Diodes | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage - Supply | 3V | Number of Elements | 1 |
| Power - Average Forward | 242 W | Voltage Regulation - Load | 1.2 kV |
| Current - Peak Pulse (8/20us) | 130 A | Current - Reverse Leakage @ Vr | 400µA |
| Current - DC Forward (If) (Max) | 20 A | Current - Average Rectified (Io) | 20A |
| Current - Peak Pulse (10/1000us) | 130A | Voltage - Reverse Standoff (Typ) | 1200V |
Mechanical
| Width | 4.7mm | Height | 15.62mm |
| Length | 10.41mm | Mounting Type | 通孔 |
| Mounting Style | Through Hole | Number of Pins | 2 |
| Package / Case | TO-220-2 | Package Quantity | TO-220 |
| Size / Dimension | 10.41 x 4.7 x 15.62mm | ||
Product Info
| Diode Type | 碳化硅肖特基 | Technology | SiC |
| Manufacturer | Wolfspeed / Cree | Configuration | Single |
Environmental
| Operating Temperature | +175 °C | ||
