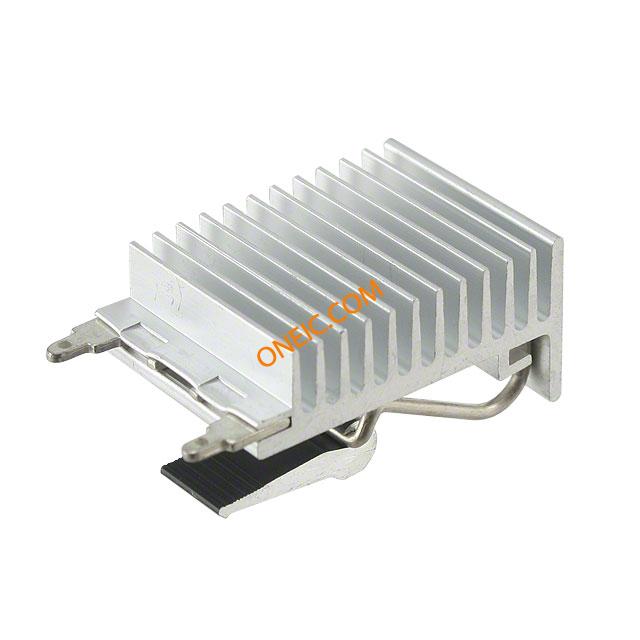

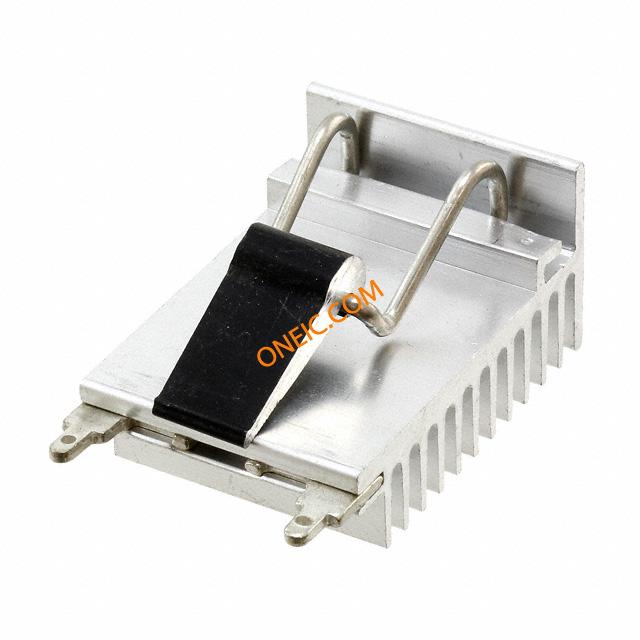

C220-025-1VE
| Manufacturer | |
| Description | Heat Sinks HEATSINK FOR TO-220 1 CLIP, NO FINISH HEATSINK AND CLIP FOR TO-220 Heat Sink Passive TO-220 Clip Aluminum Alloy 6063-T5 HEATSINK, TO-220, 1 CLIP, NO FINISH HEATSINK FOR TO-220 WITH 1 CLIP |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Heat Sinks | Lead Time | 98 Days |
| Other Names | C2200251VE | Subcategory | Not Specified |
| Product Category | Heat Sinks | Standard Package | 5 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 76041090 | ||
Mechanical
| Shape | Rectangular | Width | 18 mm |
| Finish | Degreased | Height | 38 mm |
| Length | 25 mm | Weight | 0.015 |
| Material | Aluminum | Packaging | Bulk |
| Surface Type | 11 in2 | Mounting Style | Through Hole |
| Package Cooled | TO-220 | Width (Inches) | :0.785" |
| Height (Inches) | :1.5" | Material Finish | Degreased |
| Width - Overall | :19.94mm | Length - Overall | :0.984" |
| Primary Material | TO-220 | Size / Dimension | 25 L x 38 W x 19.94 H in. |
| Attachment Method | Clip and PC Pin | Heat Sink Material | Aluminum Alloy |
| Height - Seated (Max) | 0.710" (18.03mm) | Shell Size - Insert (Convert From) | :38mm |
Product Info
| Type | Board Level, Vertical | Features | With an Integrated Camming Clip, Maximum Repeatability Constant Spring Force over Repeated Assembly or Disassembly, Maximum Reliability Resilient Spring Action, Design Flexibility Maximum Flexibility for Dynamic Device Locations and Power Upgrading |
| Application | TO-247 | Application Specifics | Thermal Management |
Environmental
| Heat Protection | :Aluminium | Mechanical Life | New At Mouser |
| Thermal Resistance | :- | ||
