1887220000
| Manufacturer | |
| Description | Conn Ring-Lug Terminal Blocks 2 POS ST 30A TERMINAL WTD 6/4 FF |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Protection | No |
| IEC Standard | 27-14-11-26 | Approval Agency | E60693 |
| Standard Number | 30-21-18-11 | Declaration of Conformity | DE_PT1004_20160418_974_ISSUE01.pdf |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current | 30 A | Voltage | 600 V |
| Frequency | 27-14-11-26 | Range deg/s | 1.5 mm² |
| Current - UL | 30A | Voltage - UL | 600V |
| Current - IEC | 41A | Voltage - IEC | 800V |
| Voltage Rating | 800 V | Coupling Factor | 26 AWG |
| Number of Cells | 227775-1609344 | Number of Elements | 1 |
| Current Rating (Max) | 41 A | Insulation Resistance | 0.78 mΩ |
| Voltage - Supply (Min) | 38.5 mm | Number of Outputs and Type | 1 |
| Voltage - Breakdown (V(BR)GSS) | 8 kV | ||
Mechanical
| Color | Beige | Depth | 52 mm |
| Width | 11 mm | Height | 76.5 mm |
| Weight | 36.2 g | Material | Wemid |
| Blade Size | 0.8 x 5.5 mm | Wire Gauge | 10-26 AWG |
| End Feature | Yes | Rivet Length | M 4 |
| Socket Depth | Yes | Torque - Min | 1.2 Nm |
| Mounting Type | Straight | Connector Type | Screw connection |
| Depth (Inches) | 2.047 inch | Mounting Rails | TS 35, TS 32 |
| Number of Rows | 2 | Width (Inches) | 0.433 inch |
| Height (Inches) | 3.012 inch | Terminal - Width | 11.0mm |
| Termination Style | Screw | Color - Connectors | Dark Beige |
| Number of Positions | 2 | Material - Insulation | Thermoplastic, Wemid |
| Width / Cross Section | 10 AWG | Wire Gauge or Range - AWG | 10-26 AWG |
| Wire Gauge or Range - mm2 | 1.5-6mm² | Number of Positions/Bay/Row | 2 |
| Torque - Max Momentary (oz-in / mNm) | 2.4 Nm | ||
Product Info
| Type | Ring-Lug Terminal Blocks | ETIM 6*0 | EC000902 |
| Direction | on side | GTIN (EAN) | 4032248526802 |
| Disconnect Type | without | Engineering Data | EPLAN |
| Firmware Version | Screw connection, for plug-in cross-connector, One end without connector | Number of Levels | 1 |
| Number of Circuits | 1 | First Conductor Mark | 26 AWG |
| Independent Circuits | No | Other Specifications | No |
| Number of Positions (Convert From) | 2 | ||
Environmental
| Rated Life | 6 mm² | Seal Rating | without |
| ET (Volt-Time) | EC000902 | Ingress Protection | 3 |
| Operating Temperature | -50 °C | ||
Documents & Media
Similar Parts
1739680000
weidmuller
Conn Pluggable Jumper M 2 POS 10mm ST JUMPER 10MM 85A FOR ZDU 10 Weidmuller 1739680000 Cross Connector Terminal Block, Series: ZQV
1609801044
weidmuller
Fuse Terminal Block 15A 500V Screw DIN Rail DEK 5/5 MULTI CARD 1000/BX TERMINAL BLOCK MARKER, 5MM, WHT, MULTICARD 1000
1792000000
weidmuller
WS 10/5 MC MIDDLE NEUTRAL -BX = 720 EA TERMINAL MARKER WS 10/5 MC Inkjet Printer Multi Card Markers

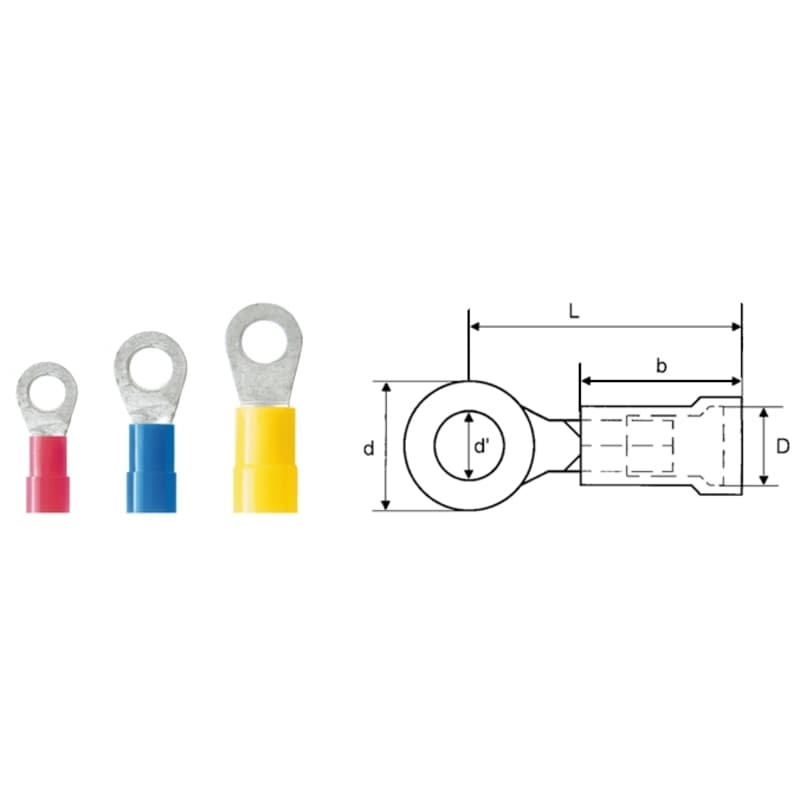

9200230000
