点击放大查看
1730740000
| Manufacturer | |
| Description | Conn Terminal Block SKT 6 POS 5mm Screw RA Cable Mount 10A Box TERM BLOCK PLUG 6POS STR 5MM PLUG, FEMALE, 5.00MM, STRT, 6WAY |
| Category |
Business
| Other Names | BL 5.00/6 BK | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | Rad Hardened | No |
Electrical
| Current | 10A | Voltage | 300V |
| Current Rating (Max) | 10 A | Voltage - Supply (Min) | 300V |
Mechanical
| Color | Black | Depth | 17.4 mm |
| Pitch | 5 mm | Height | 12.5 mm |
| Weight | 0.0088 | Packaging | Bulk |
| Wire Gauge | 12-22 AWG | Termination | Screw |
| Housing Color | Black | Mounting Type | Cable Mount |
| Connector Type | :Terminal Block, Pluggable | Contact Finish | Tin |
| Mounting Style | Cable | Number of Rows | 1 |
| Plug Wire Entry | 180° | Contact Material | Bronze |
| Housing Material | Polyamide | Length - Overall | 30 mm |
| Number of Contacts | 6 | Number of Positions | 6 |
| Terminal Block Type | Plug, Female Sockets | Wire Gauge or Range - AWG | :26AWG |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | Terminal Block | Gender | SKT |
| Series | :BL 5.00/180 | Features | Retention Latches (Non-Wire Side) |
| Number of Levels | 1 | Positions Per Level | 6 |
Environmental
| Operating Temperature | -25C to 100C | ||
Documents & Media
Similar Parts
1630290000
weidmuller
Conn Shrouded Header HDR 6 POS 5mm Solder Thru-Hole Box TERM BLOCK HDR 6POS 135DEG 5MM
1796820000
weidmuller
Conn Shrouded Header HDR 6 POS 5mm Solder ST Thru-Hole Box TERM BLOCK HDR 6POS VERT 5MM
1614850000
weidmuller
Conn Shrouded Header HDR 12 POS 5mm Solder ST Thru-Hole Box TERM BLOCK HDR 12POS VERT 5MM
1797120000
weidmuller
Conn Shrouded Header M 6 POS 5mm Solder RA Thru-Hole Box TERM BLOCK HDR 6POS R/A 5MM
1797270000
weidmuller
Conn Shrouded Header M 6 POS 5mm Solder RA Thru-Hole Box TERM BLOCK HDR 6POS R/A 5MM

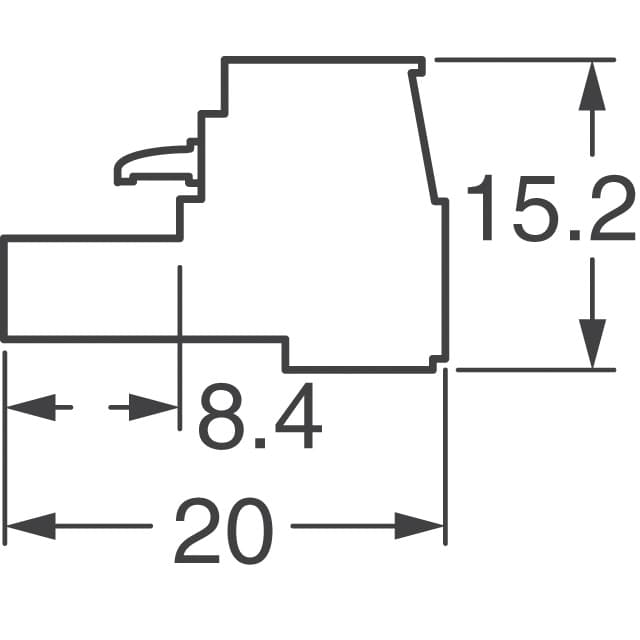

1596090000
