1012440000
| Manufacturer | |
| Description | CONN MOD HOUSING RJ45 BLACK |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | IE-PH-V01P | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Listing | DUXR.E316369.pdf |
| IEC Standard | 27-18-27-02 | Protection Features | IP67 |
Electrical
| Frequency | 19-17-01-25 | ||
Mechanical
| Color | Black | Weight | 28.5 g |
| Packaging | Bulk | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Housing, Hybrid | Fastening Type | Bayonet Lock |
| Housing Material | Polyamide (PA), Nylon | Connector/Contact Type | IEC 61076-3-106 Var. 1 |
| Diameter - Protective Tube | 10 mm | Diameter - Outside, Non-Expanded | 5 mm |
Product Info
| Note | Insert Not Provided | Type | IE-PH-V01P |
| ETIM 6*0 | EC000018 | Features | Cable Clamp |
| GTIN (EAN) | 4032248720095 | Configuration | Plug housing with labelling/marking holder: 9*11 mm; suitable for holding RJ45 and fibre-optic inserts |
| Firmware Version | Empty enclosure, Plug housing, IP67 | ||
Environmental
| Mating Cycles | 750 | ET (Volt-Time) | EC000018 |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 70°C |
Documents & Media
PDF Document
Similar Parts

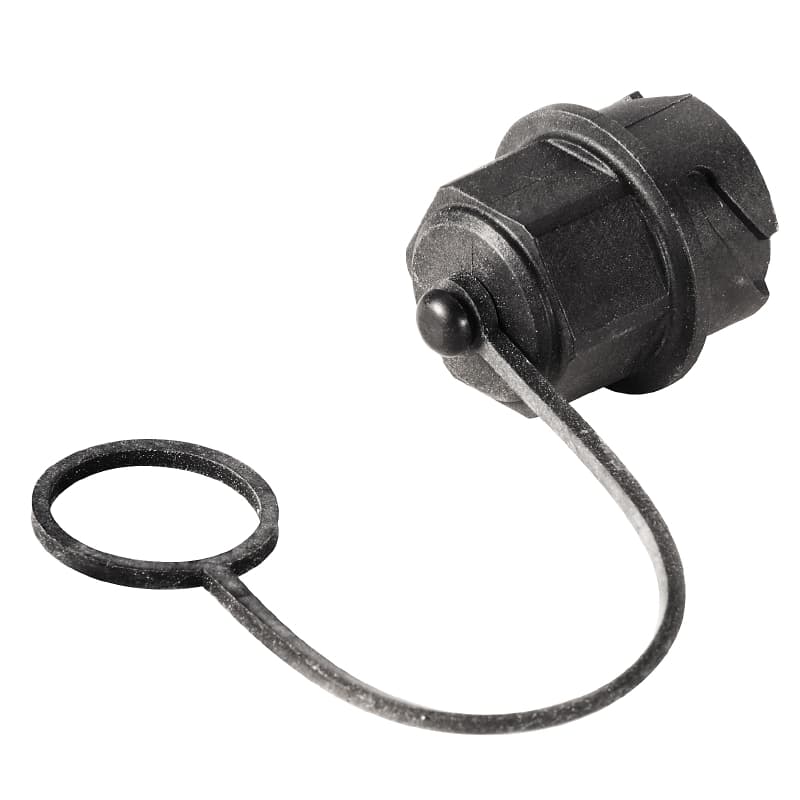

1965690000
weidmuller
IE-PP-V01P -EA CONN ACCY DUST COVER BLACK
$51.0174
Details

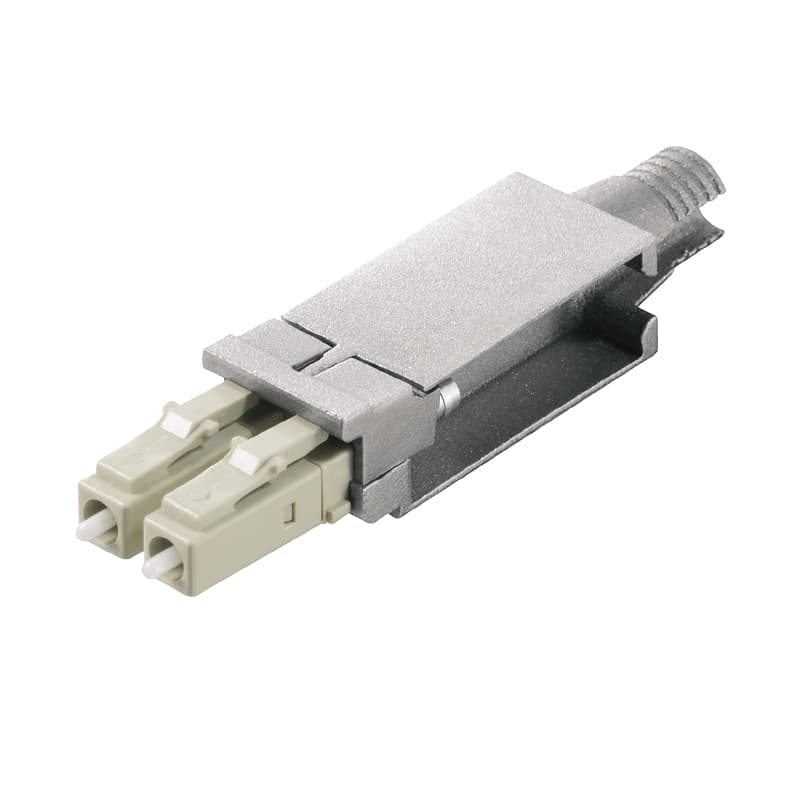

1962780000
weidmuller
IE-PI-2LC-MM -EA CONN FIBER LC PLUG DUPLX
$454.9200
Details
1962790000
weidmuller
IE-PI-2LC-SM -EA CONN FIBER LC PLUG DUPLX
$499.9360
Details

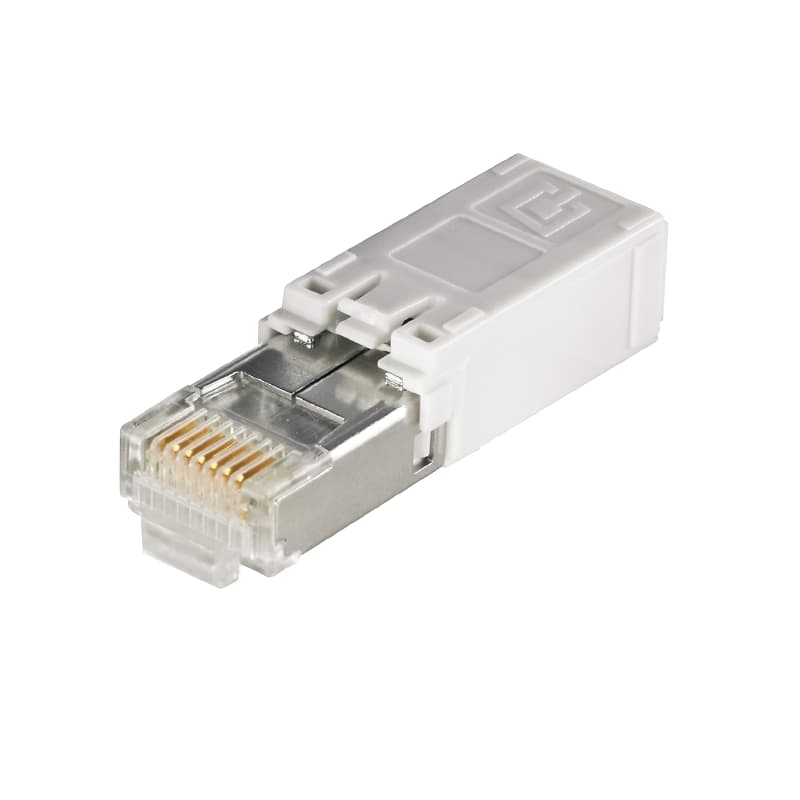

1962720000
weidmuller
Conn RJ-45 M IDT ST Cable Mount 1 Port Cat 6a CONN MOD PLUG 8P8C SHIELDED
$27.8800
Details
1962730000
weidmuller
Conn RJ-45 M IDT ST Cable Mount 1 Port Cat 6a CONN MOD PLUG 8P8C SHIELDED CAT6 RJ45 PLUG-IN CONNECTOR, 8POS 1 PORT
$127.7958
Details
1963020000
Weidmuller
COLOR CODE RING CONN ACCY CODING RING BLUE
$12.3760
Details
1963040000
Weidmuller
COLOR CODE RING CONN ACCY CODING RING GREEN
$12.3760
Details
1963000000
Weidmuller
COLOR CODE RING CONN ACCY CODING RING GRAY
$12.3760
Details
1963010000
Weidmuller
COLOR CODE RING CONN ACCY CODING RING ORANGE
$12.3760
Details
1962990000
Weidmuller
COLOR CODE RING CONN ACCY CODING RING WHITE
$12.3760
Details
1963030000
Weidmuller
COLOR CODE RING CONN ACCY CODING RING YELLOW
$12.3760
Details

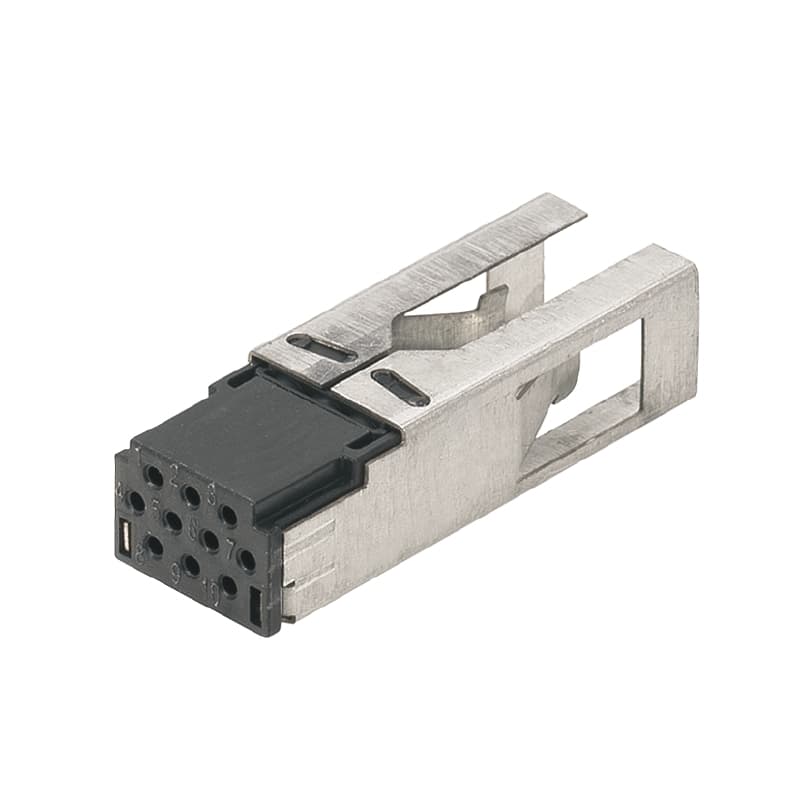

1068990000
