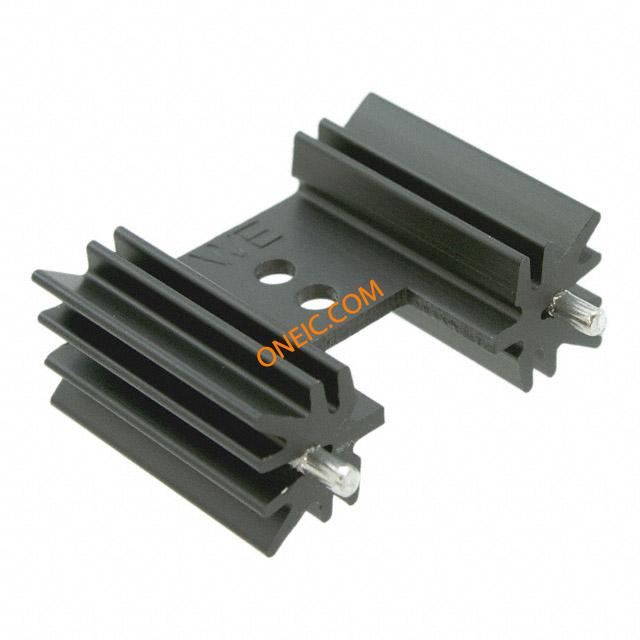

637-10ABPE
| Manufacturer | |
| Description | Heat Sinks HIGH EFF VERT MNT 1.375X.50X1.00 HEATSINK TO-220 VERT MT BLK 1" 637-10ABPE HEAT SINK, TO-220, 5°C/W Heatsink;VerticalMount;1in.Height;76C@6W;5.8C/W;RoHS |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Heat Sinks | Lead Time | 56 Days |
| Subcategory | Not Specified | Standard Pack | 700 |
| Product Category | Heat Sinks | Standard Package | 700 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85322500 |
Mechanical
| Color | Black | Shape | Rectangular |
| Width | 34.9 mm | Finish | BlackAnodized |
| Height | 25.4 mm | Length | 12.7 mm |
| Weight | 0.015 | Material | Aluminum |
| Surface Type | :Black Anodised | Mounting Type | :Screw |
| Mounting Style | Through Hole | Package / Case | TO-220 |
| Package Cooled | TO-220 | Width (Inches) | :1.37" |
| Height (Inches) | :1" | Material Finish | Black Anodized |
| Width - Overall | :34.9mm | Front Connection | 5.8°C/W@200LFM |
| Length - Overall | :0.5" | Primary Material | TO-220 |
| Size / Dimension | 1.375×0.5in. | Attachment Method | Bolt On and Board Mounts |
| Heat Sink Material | Aluminum | Height Above Board | 1in. |
| Height - Seated (Max) | 0.500" (12.70mm) | Mounting Panel Thickness | :25.4mm |
| Shell Size - Insert (Convert From) | :25.4mm | ||
Product Info
| Type | Board Level, Vertical | Features | High-Efficiency,ForVerticalBoardMounting |
| Application | TO-220 | Configuration | Vertical |
| Bus Connection | 76°C@6W | Application Specifics | BoardLevelPowerSemiconductors |
| For Use With/Related Products | 637-10ABEP | ||
Environmental
| Heat Protection | :Aluminium | Thermal Resistance | :5.8°C/W |
| Power Dissipation @ Temperature Rise | 6W @ 76°C | Thermal Resistance @ Forced Air Flow | 5.8°C/W @ 200 LFM |
