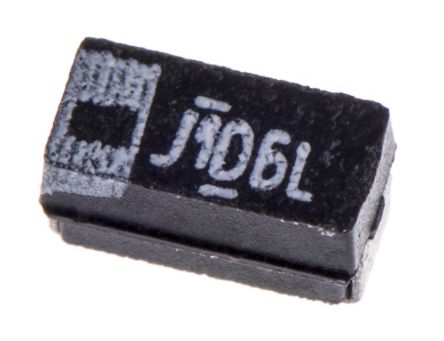

293D106X96R3A2TE3
| Manufacturer | |
| Description | Cap Tant Solid 10uF 6.3V A CASE 10% (3.2 X 1.6 X 1.6mm) SMD 3216-18 T/R Tantalum Capacitors - Solid SMD 10uF 6.3volts 10% A case Molded CAP TANT 10UF 6.3V 10% 1206 Vishay ±10% 10μF 6.3V dc SMD Tantalum Electrolytic Capacitor, 3216-18 ESR 3.4Ω 125°C Cap Tant Solid 10uF 6.3V A CASE 10% (3.2 X 1.6 X 1.6mm) SMD 3216-18 3.4 Ohm 125C T/R CAP, TANT, 10UF, 6.3V, CASE A CAP, TANT, 10UF, 6.3 V, CASE A Capacitor;Tantalum;Cap10uF;Tol10%;Vol-Rtg6.3VDC;SMT;3216-18;ESR3.4Ohms Vishay 293D 系列 10μF ±10% SMD 钽电容器, 6.3 V 直流, 3216-18 封装, 3.4Ω ESR, +125°C |
| Category |
Business
| MOQ | 10000 | Product | Tantalum Solid Standard Grade - Other Various |
| Tradename | TANTAMOUNT | Unit Pack | 2000 |
| Product Category | Tantalum Capacitors - Solid SMD | Standard Package | Tape & Reel |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85322100 |
| Rad Hardened | No | ||
Electrical
| ESR | :100kHz | Voltage | 6.3 Vdc |
| Tolerance | 10 % | Capacitance | 10 uF |
| Range deg/s | :VISHAY SPRAGUE - 293D Series | Voltage Rating | 6.3 V |
| Current - Leakage | 0.6 uA | DC Cold Resistance | 0.6 uA |
| Capacitance - Input | :1206 [3216 Metric] | Dielectric Constant | 6% |
| Dissipation Factor (DF) | 6 | Ripple Current @ High Frequency | 0.15 A |
| ESR (Equivalent Series Resistance) | 3.4 Ohm | ||
Mechanical
| Seal | Not Required | Depth | 1.6 mm |
| Width | 1.6 mm | Height | 1.6 mm |
| Length | :1.6mm | Weight | 0.01 |
| Diameter | Not Required mm | Packaging | Reel |
| Insulation | Not Required | Termination | SMT |
| Construction | SMT Chip | Height (Max) | Not Required mm |
| Lead Spacing | Not Required mm | Mounting Type | :SMD |
| Reel Capacity | :2000 | Mounting Style | Surface Mount |
| Number of Pins | :2 | Package / Case | 3216-18,A |
| Length - Actual | Not Required mm | Length - Overall | 3.2 mm |
| Material - Blade | Tantalum | Size / Dimension | 1.6 mm W x 3.2 mm L |
| Termination Style | SMD/SMT | Shell Size - Insert | 1206(3216mm) |
| Mounting Hole Diameter | 1206 | Wire Gauge or Range - AWG | Not Required |
Product Info
| Series | 293D | DELETED | Compliant |
| Polarity | Polar | Failure Rate | Not Required |
| Manufacturer | A Case | Manufacturer Size Code | :A |
Environmental
| Operating Temperature | 125 °C | ||
