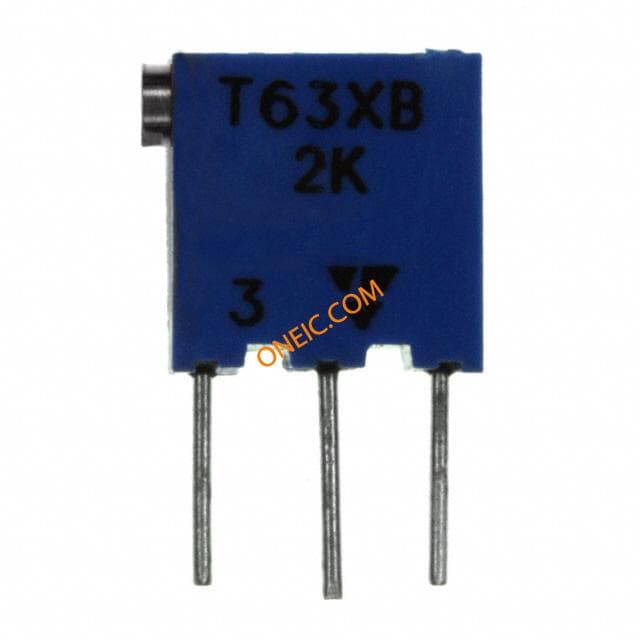

T63XB202KT20
| Manufacturer | |
| Description | Res Cermet Trimmer 2K Ohm 10% 1/4W 14(Elec)/15(Mech)Turn 1.8mm (7.5 X 5 X 6.8mm) Pin Thru-Hole Tube Res Cermet Trimmer 2K Ohm 10% 0.25W(1/4W) 14(Elec)/15(Mech)Turn 1.8mm (7.5 X 5 X 6.8mm) Pin Thru-Hole Tube TRIMMER 2K OHM 0.25W TH T63XB side adj cermet pcb pot,2K 0.25W Trimmer Resistors - Through Hole 1/4SQ H/ADJ 2K TRIMMER, POT, 2K, 15TURN, THD 6MMM/TCERMETTRIM2K Potentiometer: mounting; multiturn; 2kΩ; 250mW; ±10%; linear; T63XB Vishay 74X 系列 14（电气）、15（机械） 转 通孔 微调电阻器, 带 针接端, 2kΩ ±10%, 1/4W, ±100ppm/°C |
| Category |
Business
| MOQ | 100 | Product | Trimmer Resistors - Multi Turn |
| Unit Pack | 50 | Other Names | T63XB-2.0K |
| Product Category | Trimmer Resistors - Through Hole | Standard Package | Rail / Tube |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85334010 | Rad Hardened | No |
| Military Standard | Not Required | ||
Electrical
| Tolerance | 10 % | Resistance | 2 KOhm |
| Element Type | Cermet | Power (Watts) | 0.25W, 1/4W |
| Power - Rated | 1/4 W | Voltage Rating | 250 V |
| Voltage - Rated | 250V | Resistance (Ohms) | 2k |
| Contact Resistance | :2% | Voltage - Breakdown | :1000V |
| Resistance Tolerance | 2kΩ | Resistor - Base (R1) | :Radial Leaded |
| DC Resistance (DCR) (Max) | :2kohm | ||
Mechanical
| Depth | 5mm | Taper | Linear |
| Height | 6.8mm | Length | 7.5mm |
| Torque | 1Ncm | Weight | 0.0005 |
| Diameter | Not Required mm | Base Type | :Through Hole |
| Packaging | Tube | Size - Body | 6.8 x 6.8 x 5mm |
| Pin Diameter | :0.45mm | Mounting Type | Through Hole |
| Terminal Type | :PCB Terminals | Mounting Style | Through Hole |
| Shaft Diameter | 1.8 mm | Length - Overall | 7.5 mm |
| Package Quantity | 50 | Size / Dimension | Square - 0.268" L x 0.197" W x 0.268" H (6.80mm x 5.00mm x 6.80mm) |
| Pitch - Connector | 2.5x2.5mm | Termination Style | Pin |
| Conductor Material | cermet | Resistive Material | Cermet |
Product Info
| Spg | 50 | Type | Trimmer |
| Series | T63 | DELETED | Compliant |
| Schematic | see | Technology | Cermet |
| Failure Rate | Not Required | Product Type | Multi-Turn |
| Adjustment Type | Side Adjustment | Characteristics | linear |
| Number of Turns | 14(Elec)|15(Mech) Turns | Number of Units | 1 |
| Type Attributes | 1/4" | ||
Environmental
| NEMA Frame Size | :IP67 | Ingress Protection | IP67 |
| Operating Temperature | -55 to 155 °C | Temperature Coefficient | ±100ppm/°C |
| Temperature Coefficient (Typ) | :100ppm/°C | ||
