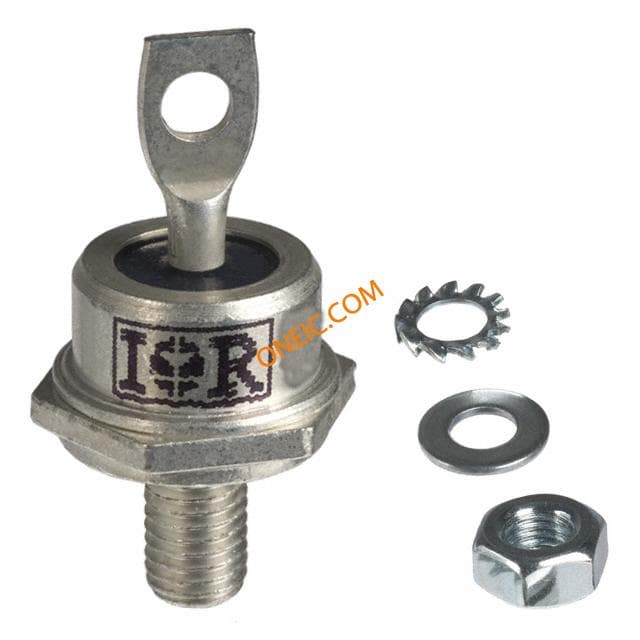

VS-70HF120
| Manufacturer | |
| Description | Diode Switching 1.2KV 70A 2-Pin DO-5 DIODE GEN PURP 1.2KV 70A DO203AB VS-70HF120, Rectifier Diode, Switching 70A 1200V, 2-Pin, DO-5 Rectifiers 1200 Volt 70 Amp DIODE, STANDARD, 70A, 1200V DIODE;70AIF;1200V;0.45K/W;1250A@8.3MSIFMS;9MAIR;DO-203AB(DO-5) Vishay 开关 二极管, 70A 1200V, 2针 DO-5封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Product | Standard Recovery Rectifiers |
| Unit Pack | 100 | Product Category | Rectifiers |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85411000 |
Electrical
| Speed | Standard Recovery >500ns, > 200mA (Io) | Power - Rated | 0.35 W |
| Current - Test | 9000 uA | Rectifier Type | Switching |
| Current - Surge | :1.2kA | Current - Output | 9mA |
| Voltage - Supply | 1.35@220A V | Diode Configuration | :Single |
| Resistance @ 25degC | 0.45K/W | Frequency - Switching | Standard |
| Voltage - Input (Min) | 1.35V @ 220A | Current - Timekeeping (Max) | 6450A2s |
| Current - Peak Pulse (8/20us) | 1250 A | Voltage - DC Reverse (Vr) (Max) | 1200V (1.2kV) |
| Current - Average Rectified (Io) | 70 A | Current - Peak Pulse (10/1000us) | 1.25kA |
| Voltage - Reverse Standoff (Typ) | 1200 V | Current - LED Trigger (Ift) (Max) | :70A |
| Voltage - Gate Trigger (Vgt) (Max) | 1200 V | Current - Continuous Drain (Id) @ 25degC | 70A |
Mechanical
| Width | 17.35mm | Height | 22.9mm |
| Length | 20.02mm | Weight | 0.022 |
| Packaging | Bulk | Termination | :Screw |
| Thread Size | :1/4"-28UNF | Mounting Type | Stud |
| Mounting Style | Stud | Number of Pins | :2 |
| Package / Case | 2DO-5 | Package Cooled | DO-5 |
| Material Finish | :- | Primary Material | Rectifier |
| Size / Dimension | 22.9 x 20.02 x 17.35mm | Number of Positions | 2 |
| Supplier Device Package | DO-203AB | ||
Product Info
| Type | Switching Diode | Diode Type | Standard |
| Configuration | Single | ||
Environmental
| Thermal Resistance | 0.25°C/W Cs | Operating Temperature | -65 to 180 °C |
| Operating Temperature - Junction | -65°C ~ 150°C | ||
