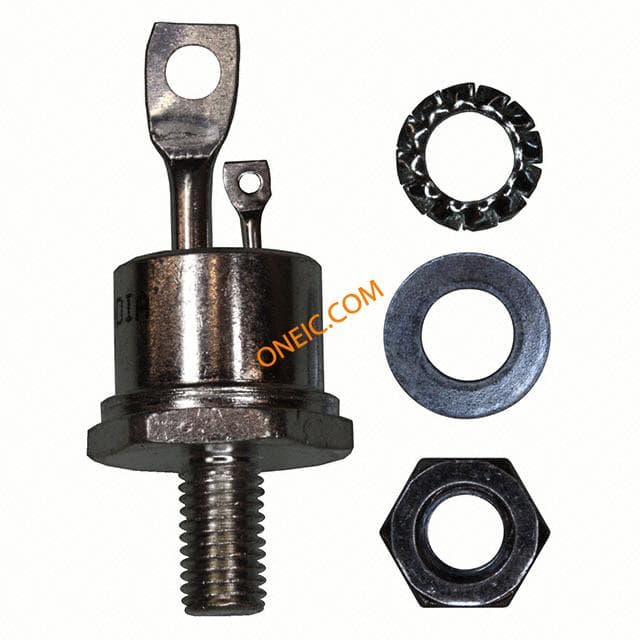

VS-50RIA60
| Manufacturer | |
| Description | Thyristor SCR 600V 1.49KA 3-Pin TO-65 SCR MED POWER 600V 50A TO-65 SCRs 600 Volt 50 Amp THYRISTOR, 50A, 600V, TO-65 THYRISTOR,MEDIUMPOWER;MEDIUMPOWER;50A@94CON-STATE(AVG.MAX.);1.6V |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Unit Pack | 100 |
| Product Category | SCRs | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85413000 |
Electrical
| SCR Type | :TO-208AC | Current - Surge | 1490 A |
| Voltage - Supply | 1.6 V | Current Rating (Max) | 50 A |
| Vce(on) (Max) @ Vge, Ic | 1.6@157A V | Current - Hold (Ih) (Max) | 200 mA |
| Current - Off State (Max) | 15 mA | Voltage - Peak Reverse (Max) | 600 V |
| Voltage - Reverse Standoff (Typ) | :600V | Current - Leakage (IS(off)) (Max) | 1.5 A |
| Voltage - Protection Rating (VPR) | 1600 V | Current - Gate Trigger (Igt) (Max) | 100 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V | Current - On State (It (RMS)) (Max) | 1490 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | :1.49kA | Current - Average Rectified (Io) (per Diode) | :50A |
| Voltage - Output Difference (Typ) @ Distance | :600V | ||
Mechanical
| Weight | 0.028 | Packaging | Bulk |
| Termination | :Screw | Thread Size | :1/4"28UNF |
| Mounting Type | Stud | Mounting Style | Stud |
| Number of Pins | :3 | Package / Case | 3TO-65 |
| Material Finish | :- | ||
Product Info
| Type | SCR | Series | 50RIA |
| Triac Type | :Thyristor | ||
Environmental
| Operating Temperature | -40 to 125 °C | ||
