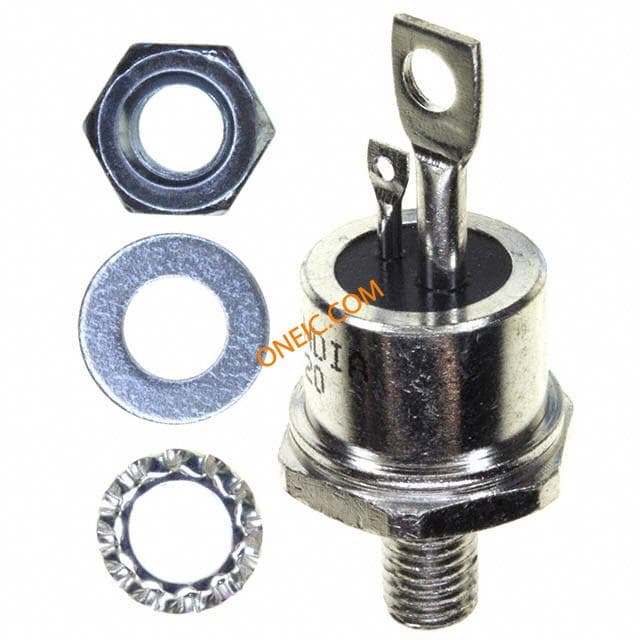

VS-50RIA120
| Manufacturer | |
| Description | Thyristor SCR 1.2KV 1.49KA 3-Pin TO-65 SCR MED POWER 1200V 50A TO-65 SCR Thyristor VS-50RIA120, 1200V 50A 100mA, TO-65 2-Pin SCRs 1200 Volt 50 Amp THYRISTOR, 50A, 1200V, TO-65 THYRISTOR,MEDIUMPOWER;MEDIUMPOWER;50A@94CON-STATE(AVG.MAX.);1.6V Vishay 闸流晶体管, 50A 1200V 100mA, 2针 TO-65封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Unit Pack | 100 |
| Product Category | SCRs | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85413000 |
Electrical
| SCR Type | :TO-208AC | Current - Surge | 1490 A |
| Voltage - Supply | 1.6 V | Current Rating (Max) | 50 A |
| Vce(on) (Max) @ Vge, Ic | 1.6@157A V | Current - Hold (Ih) (Max) | 200 mA |
| Current - Off State (Max) | 15 mA | Voltage - Peak Reverse (Max) | 1200 V |
| Voltage - Reverse Standoff (Typ) | :1200V | Current - Leakage (IS(off)) (Max) | 1.5 A |
| Voltage - Forward (Vf) (Max) @ If | 1200V | Voltage - Protection Rating (VPR) | 1600 V |
| Current - Gate Trigger (Igt) (Max) | 100 mA | Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 1490 A | Current - Non Rep. Surge 50, 60Hz (Itsm) | :1.43kA |
| Current - Average Rectified (Io) (per Diode) | :50A | Voltage - Output Difference (Typ) @ Distance | :1200V |
Mechanical
| Width | 17.35mm | Height | 42.5mm |
| Length | 19.2mm | Weight | 0.028 |
| Packaging | Bulk | Termination | :Screw |
| Thread Size | :1/4"28UNF | Mounting Type | Stud |
| Mounting Style | Stud | Number of Pins | :3 |
| Package / Case | 3TO-65 | Package Cooled | TO-65 |
| Material Finish | :- | Size / Dimension | 19.2 x 17.35 x 42.5mm |
| Number of Positions | 2 | ||
Product Info
| Type | SCR | Series | 50RIA |
| Triac Type | SCR | ||
Environmental
| Operating Temperature | -40 to 125 °C | ||
