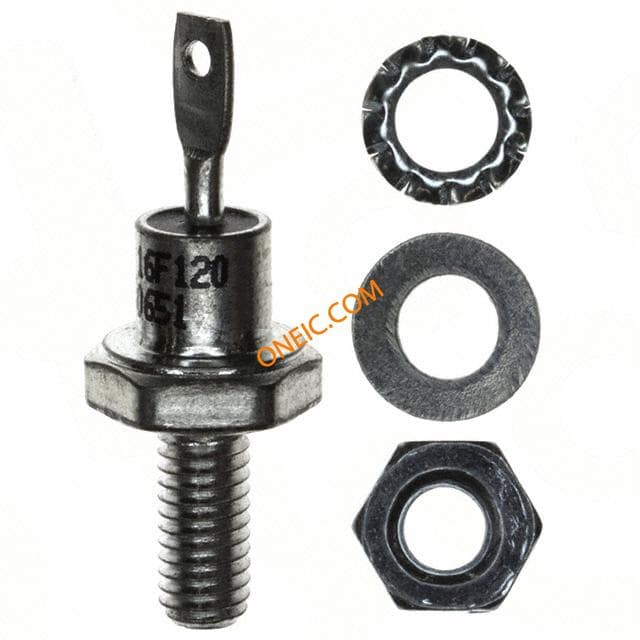

VS-16F120
| Manufacturer | |
| Description | Diode Switching 1.2KV 16A 2-Pin DO-4 DIODE GEN PURP 1.2KV 16A DO203AA VS-16F120, Rectifier Diode, Switching 16A 1200V, 2-Pin, DO-4 Rectifiers 1200 Volt 16 Amp DIODE, STANDARD, 16A, 1200V DIODE;16AIF;1200V;1.6K/W;350A@50HZ,370A@60HZIFMS;12MAIR;-65C Vishay 开关 二极管, 16A 1200V, 2针 DO-4封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Product | Standard Recovery Rectifiers |
| Unit Pack | 100 | Product Category | Rectifiers |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85411000 |
Electrical
| Speed | Standard Recovery >500ns, > 200mA (Io) | Current - Test | 12000 uA |
| Rectifier Type | Switching | Current - Surge | :350A |
| Current - Output | 12mA | Voltage - Supply | 1.23@50A V |
| Diode Configuration | :Single | Resistance @ 25degC | 1.6K/W |
| Frequency - Switching | Standard | Voltage - Input (Min) | 1.23V @ 50A |
| Current - Timekeeping (Max) | 612A2s | Current - Peak Pulse (8/20us) | 370 A |
| Voltage - DC Reverse (Vr) (Max) | 1200V (1.2kV) | Current - Average Rectified (Io) | 16 A |
| Current - Peak Pulse (10/1000us) | 0.37kA | Voltage - Reverse Standoff (Typ) | 1200 V |
| Current - LED Trigger (Ift) (Max) | :16A | Voltage - Gate Trigger (Vgt) (Max) | 1200 V |
| Current - Continuous Drain (Id) @ 25degC | 16A | ||
Mechanical
| Width | 11mm | Height | 31.8mm |
| Length | 12.69mm | Weight | 0.008 |
| Packaging | Bulk | Termination | :Screw |
| Thread Size | :10-32UNF | Mounting Type | Stud |
| Mounting Style | Through Hole | Number of Pins | :2 |
| Package / Case | 2DO-4 | Package Cooled | DO-4 |
| Material Finish | :- | Primary Material | Rectifier |
| Size / Dimension | 31.8 x 12.69 x 11mm | Number of Positions | 2 |
| Supplier Device Package | DO-203AA | ||
Product Info
| Type | Switching Diode | Diode Type | Standard |
| Configuration | Single | ||
Environmental
| Thermal Resistance | 0.5°C/W Cs | Operating Temperature | -65 to 175 °C |
| Operating Temperature - Junction | -65°C ~ 175°C | ||
