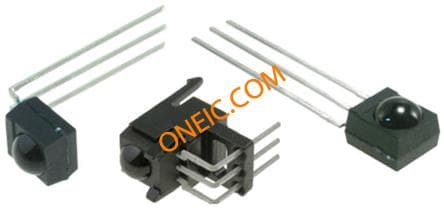

TSOP4138
| Manufacturer | |
| Description | IR Remote Receiver 38KHz 45m 3-Pin Infrared Receivers 4.5-5.5V 38kHz PH.MODULE 38KHZ S.VIEW IR Remote Receiver 38KHz 45m PHOTODIODE, IR RECEIVER, 38KHZ IR RECEIVER, 45M, 950NM, SIP DIODE,IREMITTING,38KHZ,ANGLEOFHALFTRANSMISSIONDISTANCE+/-45DEG/C Vishay 38kHz IR 接收器 , 950nm波长, 45m传输距离, 3针 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 2160 | Unit Pack | 90 |
| Product Category | Infrared Receivers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 90 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85414010 | ||
Electrical
| Data Rate | :4000bps | Frequency | 38 kHz |
| Beam Angle | 45 deg | Transmission | 45m |
| Power - Rated | 10 mW | Viewing Angle | 90 ° |
| Voltage Rating | 2.5 | Data Rate (Max) | 4000 bits/s |
| Maximum Payload | 45m | Current - Output | 5 mA |
| Voltage - Supply | 2.5 to 5.5 V | Wavelength - Peak | 950nm |
| Frequency - Output 2 | 38 | Link Range, Low Power | :45m |
| Voltage - Input (Min) | 100mV | Voltage - Supply (Min) | 5.5 |
| Distance - Control To Sensor (Max) | 45 m | ||
Mechanical
| Depth | :5.6mm | Width | 5.6mm |
| Height | 6.95mm | Length | 6mm |
| Weight | 0.000485 | Packaging | Tube |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | 3 | Optic Material | :Through Hole |
| Package / Case | TSOP-3 | Length - Overall | 6 |
| Primary Material | Receivers | Size / Dimension | 6 x 5.6 x 6.95mm |
| Length - Lead Wire | :23.55mm | Number of Positions | 3 |
| Shell Size - Insert | 6.95 | ||
Product Info
| Type | IR | Diode Type | :Amplified Photodiode |
| Other Specifications | :45° | Printed Circuit Board | 3 |
Environmental
| Operating Temperature | -25 to 85 °C | ||
