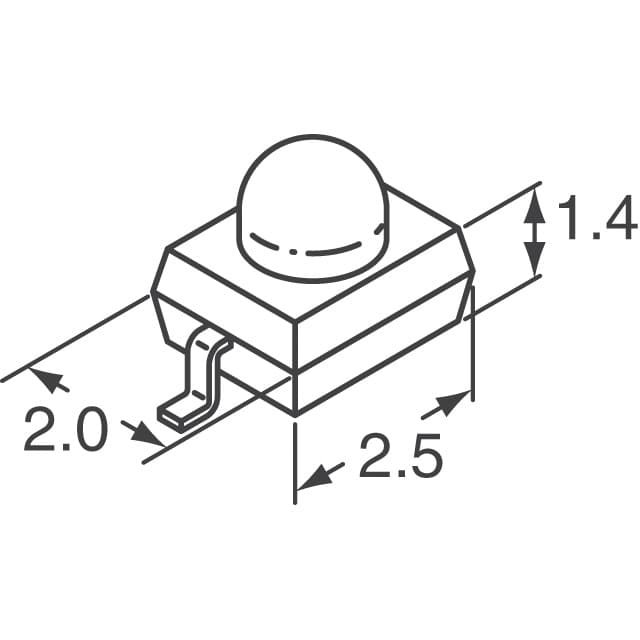

TSML1020
| Manufacturer | |
| Description | LED IrLED 950nm 2-Pin SMD T/R Infrared Emitters 12 Degree 190mW IR-EMITTER HIGH POWER 950NM SMD EMITTER IR 1.9MM 940NM DOME SMD LED IrLED 950nm IR EMITTER, 1.2V IR EMITTER, 950NM LEDIRLED,TSML1020 Vishay 红外线 LED, , 950nm, 2针 SMD 超微型封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1000 | Unit Pack | 1000 |
| Other Names | 751-1221-2 | Product Category | Infrared Emitters |
| Standard Package | Tape & Reel | Factory Pack Quantity | 2000 |
| Standard Package Name | SMD | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85414010 | Automotive | NO |
Electrical
| Beam Angle | 30 deg | Wavelength | 950 nm |
| Lamp Output | Yes | Luminous Flux | 7 mW/sr |
| Power - Rated | 190 mW | Sensing Angle | :12° |
| Viewing Angle | 24 ° | Rise Time (Typ) | :800ns |
| Voltage - Supply | 1.2V | Wavelength - Peak | 950 nm |
| Current - Output 1 | :20mA | Diode Configuration | :- |
| LED Forward Voltage | 1.2 V | Contact Voltage (Max) | 5V |
| Rise / Fall Time (Typ) | 0.8µs | Power Dissipation (Max) | 190mW |
| Voltage - Peak Reverse (Max) | :5V | Current - Peak Pulse (8/20us) | :200mA |
| Switch Time (Ton, Toff) (Max) | :800ns | Current - Reverse Leakage @ Vr | :10µA |
| Current - DC Forward (If) (Max) | :1A | Radiant Intensity (Ie) Min @ If | 7 mW/sr |
| Current - Peak Pulse (10/1000us) | 100 mA | Current - LED Trigger (Ift) (Max) | 20mA |
| Voltage - Gate Trigger (Vgt) (Max) | 5 | Current - Average Rectified (Io) (per Diode) | 100mA |
Mechanical
| Length | :2.7mm | Weight | 0.08 |
| Packaging | Reel | Lens Style | Circular |
| Orientation | Top View | Lead Spacing | :3.8mm |
| Lens Diameter | 1.9x1.9x1.3 | Mounting Type | Surface Mount |
| Mounting Style | Top Mount | Number of Pins | 2 |
| Package / Case | 2SMD | Package Cooled | SMD |
| Material - Core | GaAlAs | Material Finish | :MSL 3 - 168 hours |
| Package Quantity | SMD | Size / Dimension | 2.5 x 2 x 2.7mm |
| Diameter - Outside | :2mm | Illumination Color | Infrared |
| Length - Lead Wire | :0.3mm | Number of Positions | 2 |
Product Info
| Type | IrLED | Lens Type | Non Diffused |
| Matchcode | TSML1020 | Number of LEDs | 1 |
| Standard Leadtime | 10 weeks | ||
Environmental
| Operating Temperature | + 85 C | Maximum Temperature Limit | 85°C |
| Storage/Refrigeration Temperature | :100°C | ||
