点击放大查看

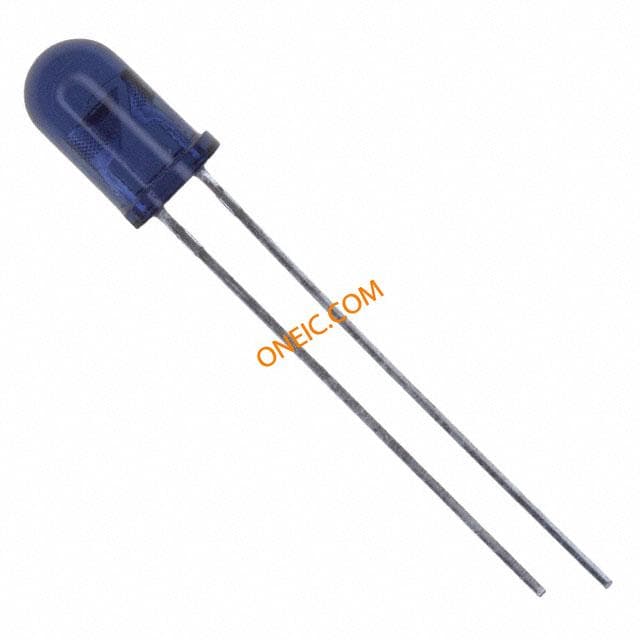

TSAL6200
| Manufacturer | |
| Description | LED IrLED 950nm 2-Pin T-1 3/4 Bulk Infrared Emitters 17 Degree 40mW IR-EMITTER HIGH POWER 950NM 5MM EMITTER IR 5MM HI EFF 940NM Infrared LED 5mm 940nm 17deg IR EMITTER, 940NM, 5MM, THROUGH HOLE IR EMITTER, 940NM, 5MM, 17DEG IR EMITTER, 5MM, 940NM IREMITTERHIGHPOWR950NM5MM17DEG IR transmitter; 5mm; 940nm; transparent, blue-gray; 210mW; 17° Vishay 34° 红外线 LED, , 940nm, 2针 通孔安装 T-1 3/4 (5mm)封装 |
| Category |
Business
| MOQ | 4000 | Unit Pack | 4000 |
| Other Names | 751-1204 | Product Category | Infrared Emitters |
| Standard Package | Bulk | Factory Pack Quantity | 4000 |
| Standard Package Name | T-1 3/4 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85414010 | Automotive | NO |
| Rad Hardened | No | ||
Electrical
| Fall Time | 800 ns | Lamp Type | :T-1 3/4 (5mm) |
| Beam Angle | +/- 17 | Wavelength | 940 nm |
| Lamp Output | Yes | Turn On Time | :800ns |
| Luminous Flux | 500 mW/sr | Power - Rated | 210 mW |
| Sensing Angle | :17° | Viewing Angle | 34 ° |
| Optical Pattern | 210mW | Rise Time (Typ) | 800 ns |
| Delay Time - OFF | :800ns | Voltage - Supply | 1.35V |
| Wavelength - Peak | 950 nm | Number of Elements | 1 |
| Current - Trip (It) | 100 mA | Diode Configuration | :T-1 3/4 (5mm) |
| LED Forward Current | 100 mA | LED Forward Voltage | 1.35 V |
| Contact Voltage (Max) | 5V | Rise / Fall Time (Typ) | 0.8µs |
| Power Dissipation (Max) | 160mW | Switch Time (Ton, Toff) (Max) | :800ns |
| Current - DC Forward (If) (Max) | :100mA | Radiant Intensity (Ie) Min @ If | 60 mW/sr |
| Current - Peak Pulse (10/1000us) | 100 mA | Current - LED Trigger (Ift) (Max) | 100mA |
| Voltage - Gate Trigger (Vgt) (Max) | 5 V | Current - Average Rectified (Io) (per Diode) | 100mA |
Mechanical
| Depth | 5.8 mm | Shape | Circular |
| Height | 8.7 mm | Weight | 0.001 |
| Material | GaAlAs | Packaging | Bulk |
| Lead Style | Through Hole | Lens Style | Circular |
| Orientation | Top View | Lens Diameter | 5x5x7.7 mm |
| Lens Material | transparent, blue-gray | Mounting Type | Through Hole |
| Mounting Style | Top Mount | Number of Pins | 2 |
| Optic Diameter | 5mm | Package / Case | 2T-1 3/4 |
| Package Cooled | 5 mm | Material - Core | GaAlAs |
| Length - Overall | 5.8 mm | Package Quantity | T-1 3/4 |
| Size / Dimension | 5mm | Diameter - Outside | 5.8 |
| Illumination Color | Infrared | Number of Positions | 2 |
| Shell Size - Insert | 8.7 | ||
Product Info
| Spg | 400 | Type | IrLED |
| DELETED | Compliant | Lens Type | Colored |
| Matchcode | TSAL6200 | Diode Type | IR transmitter |
| Main Purpose | IrLED | Number of LEDs | 1 |
| Number of Units | 1 | Standard Leadtime | 7 weeks |
| Printed Circuit Board | 2 | ||
Environmental
| Operating Temperature | + 100 C | Maximum Temperature Limit | 100°C |
| Luminous Flux @ Current/Temperature | 500mW/sr | ||
