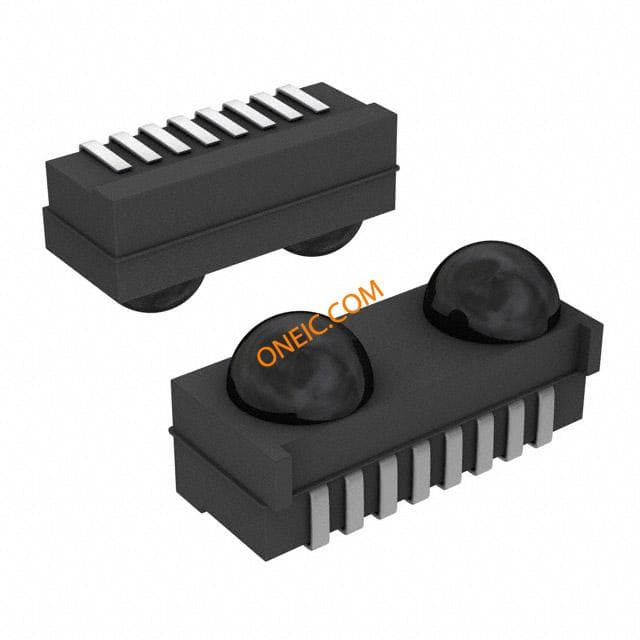

TFDU6103-TR3
| Manufacturer | |
| Description | IRDA TX/RX 4Mbps 2.5V/3.3V/5V 8-Pin Ultra Small Profile T/R Infrared Transceivers SIR 115.2kbits Side View TXRX IRDA 4MBIT 4MM SIDE 8-SMD Transceiver Module TRANSCEIVER, IR, 4MBPS, 1M IR TRANSCEIVER, 4MBPS, 1M, FULL REEL IRDA,TFDU6103 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 751-1080-2 | Product Category | Infrared Transceivers |
| Standard Package | Tape & Reel | Factory Pack Quantity | 1000 |
| Standard Package Name | Ultra Small Profile | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Standards | IrPHY 1.4 | Tariff No | 85414090 |
Electrical
| Data Rate | 4 Mbit/s | Wavelength | 886 nm |
| Transmission | :1m | Power - Rated | 500 mW |
| Sensing Angle | 48 ° | Voltage Rating | 2.4 |
| Data Rate (Max) | 4 Mbps | Rise Time (Typ) | 40 ns |
| Current - Output | :2mA | Voltage - Supply | 2.4 to 5.5 V |
| Wavelength - Peak | 886 nm | LED Forward Voltage | -0.5 to 6.5 |
| Link Range, Low Power | 1m | Voltage - Supply (Min) | 5.5 |
| Current - Input Bias (Max) | 10 mA | Idle Current, Typ @ 25degC | 2mA |
| Radiant Intensity (Ie) Min @ If | 170 mW/sr | Current - Peak Pulse (10/1000us) | 10 mA |
| Max Propagation Delay @ V, Max CL | 40 ns | Distance - Control To Sensor (Max) | 1 m |
Mechanical
| Size | 9.7mm x 4.7mm x 4.0mm | Width | 4.2mm |
| Height | 4.7mm | Length | 9.9mm |
| Weight | 0.001 | Packaging | Reel |
| Orientation | Side View | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 8 |
| Package / Case | 8Ultra Small Profile | Length - Overall | 9.9 |
| Package Quantity | Ultra Small Profile | Size / Dimension | 9.7 mm x 4.7 mm x 4 mm |
| Number of Positions | 8 | Shell Size - Insert | 4.7 |
Product Info
| Type | TX/RX | Series | * |
| Shutdown | * | Communications | 100(Min) cm |
| Other Specifications | 2.1 us | Printed Circuit Board | 8 |
Environmental
| Operating Temperature | + 85 C | ||
