SMBJ33A-E3/52
| Manufacturer | |
| Description | Diode TVS Single Uni-Dir 33V 600W 2-Pin SMB T/R TRANSIL UNI 0,6KW 39V SMB TVS DIODE 33VWM 53.3VC SMB TVS Diode Uni-Directional SMBJ33A-E3/52 53.3V, 600W, SMB 2-Pin TVS Diodes - Transient Voltage Suppressors 600W 33V 5% Uni Vishay 单向 TVS 二极管, 600W, 53.3V, 2针 SMB封装 ESD Suppressors / TVS Diodes 600W 33V 5% Uni TVS-DIODE UNI 0,6KW 39V SMB |
| Category |
Business
| MOQ | 750 | Tradename | TransZorb |
| Unit Pack | 750 | Other Names | SMBJ33A-E3/52GICT |
| Part # Aliases | SMBJ33A-E3/5B | Product Category | TVS Diodes - Transient Voltage Suppressors |
| Standard Package | Tape & Reel | Factory Pack Quantity | 750 |
| Standard Package Name | DO-214-AA | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Rad Hardened | No |
| ESD Protection | No | Leadfree Defin | RoHS-conform |
Electrical
| Channels | 1 Channel | Tolerance | 5% |
| Current - Surge | 11.3 A | Current - Output | 1 mA |
| Voltage - Supply | 33V | Current - Leakage | 0.001 uA |
| Number of Elements | 1 | Power - Peak Pulse | 600 W |
| Voltage - Clamping | 53.3 V | Current - Trip (It) | 1 mA |
| Voltage - Breakdown | 36.7 V | Contact Voltage (Max) | 33V |
| Power Line Protection | No | Voltage - Input (Min) | 33 V |
| Voltage - Supply (Min) | 33 V | Power Dissipation (Max) | 0.6kW |
| Unidirectional Channels | 1 | Current - Peak Pulse (8/20us) | 11.3 A |
| Current - Reverse Leakage @ Vr | 1 uA | Current - Peak Pulse (10/1000us) | 11.3A |
| Voltage - Reverse Standoff (Typ) | 33 V | ||
Mechanical
| Width | 3.8(Max) | Packaging | Tape and Reel |
| Lead Style | J-Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 2SMB |
| Package Cooled | SMB | Length - Overall | 4.7(Max) |
| Package Quantity | SMB | Size / Dimension | 3.94(Max) mm W x 4.57(Max) mm L |
| Termination Style | SMD/SMT | Number of Positions | 2 |
| Supplier Device Package | DO-214AA (SMB) | ||
Product Info
| Type | Zener | Series | SMBJ |
| DELETED | Compliant | Polarity | Unidirectional |
| Matchcode | SMBJ33A (MM) | Applications | Telecom |
| Configuration | Single | Port Direction | Uni-Directional |
| Standard Leadtime | 15 weeks | Application Specifics | UNIDIRECTI |
| Printed Circuit Board | 2 | ||
Environmental
| Operating Temperature | -55 to 150 °C | Operating Temperature - Junction | -55 to 150 |
Documents & Media
Similar Parts
SMBJ33A-TR
Vishay Intertechnology, Inc.
Diode TVS Single Uni-Dir 33V 600W 2-Pin SMB T/R

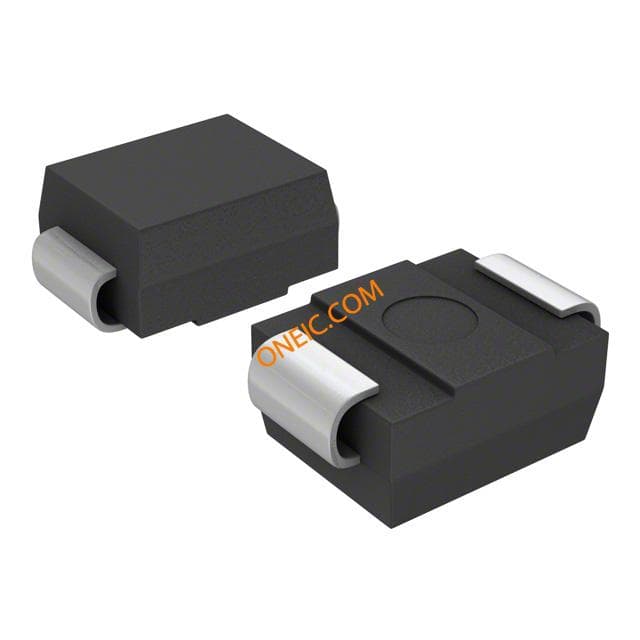

SMBJ33
Littelfuse
TVS Diodes - Transient Voltage Suppressors 33Vr 600W 11.3A 10% UniDirectional Diode TVS Single Uni-Dir 33V 600W 2-Pin SMB T/R TVS SURF MT DO214AA - SMBJ33 3K T&R TVS DIODE 33VWM 55.97VC SMT
SMBJ33
Crydom
TVS Diodes - Transient Voltage Suppressors 33V 600W UNI 10%

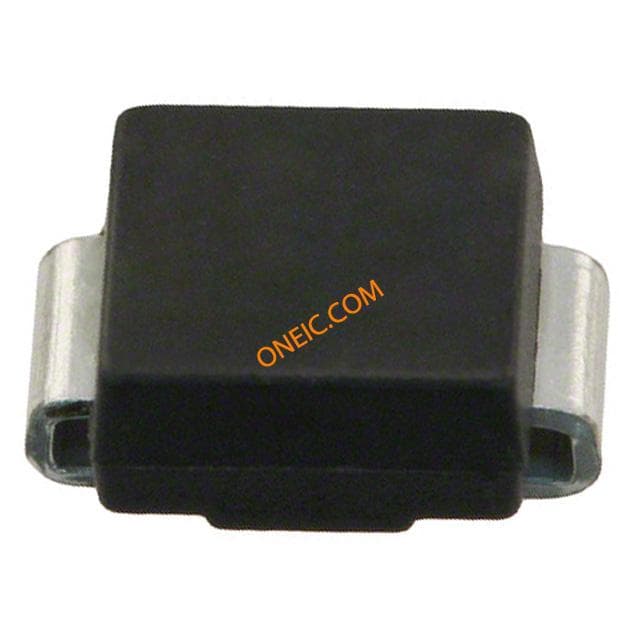

SM6T33A
