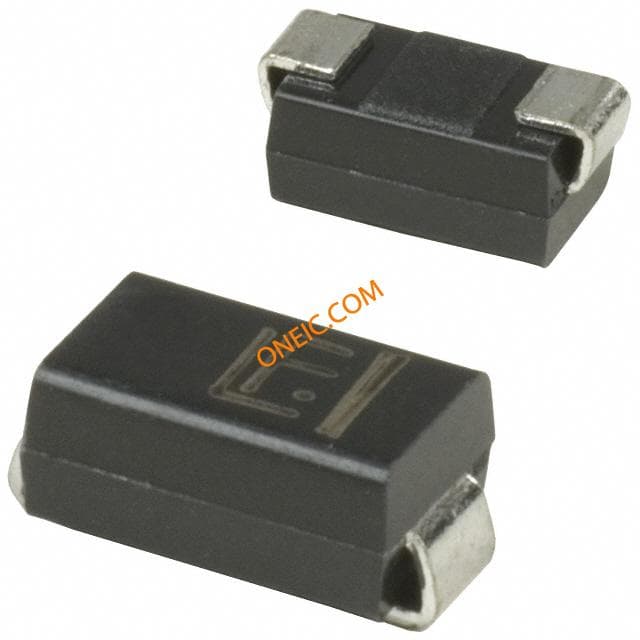

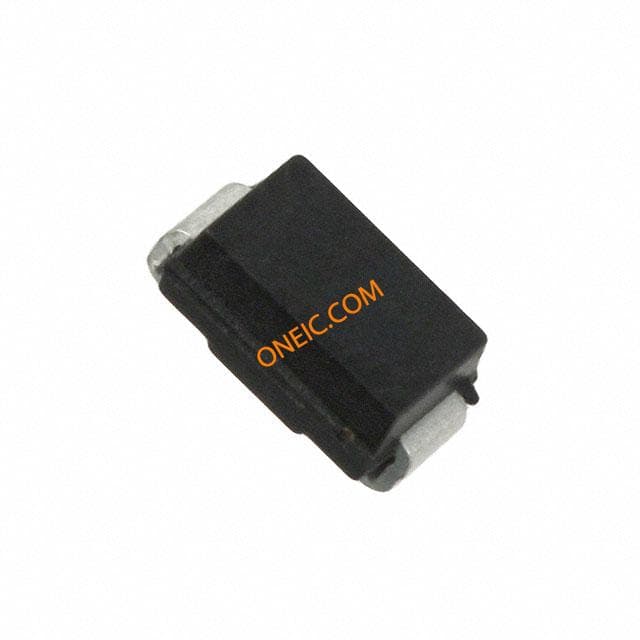

SMAJ36A-E3/61

Manufacturer	Vishay Intertechnology, Inc.
Description	Diode TVS Single Uni-Dir 36V 400W 2-Pin SMA T/R TRANSIL UNI 0,4KW 43V SMA TVS DIODE 36VWM 58.1VC SMA TVS Diode Uni-Directional SMAJ36A-E3/61 58.1V, 400W, SMA 2-Pin TVS Diodes - Transient Voltage Suppressors 400W 36V 5% Uni DIODETVS,SMAJ36A Vishay 单向 TVS 二极管, 400W, 58.1V, 2针 SMA封装 TVS-DIODE UNI 0,4KW 43V SMA
Category	Resistors and PotentiometersThrough Hole ResistorsSpace-Saving Resistors

对参数有疑问？问 AI 助手

Business

MOQ	1800	Tradename	TransZorb
Unit Pack	1800	Other Names	SMAJ36A-E3/61GICT
Part # Aliases	SMAJ36A-E3/5A	Product Category	TVS Diodes - Transient Voltage Suppressors
Standard Package	Tape & Reel	Factory Pack Quantity	1800
Standard Package Name	DO-214-AC

Compliance

RoHS	Lead free / RoHS Compliant	EU RoHS	Compliant
Automotive	NO	Rad Hardened	No
ESD Protection	No	Leadfree Defin	RoHS-conform

Electrical

Channels	1 Channel	Tolerance	5%
Current - Surge	6.9 A	Current - Output	1 mA
Voltage - Supply	36V	Current - Leakage	0.001 uA
Number of Elements	1	Power - Peak Pulse	400 W
Voltage - Clamping	58.1 V	Current - Trip (It)	1 mA
Voltage - Breakdown	40 V	Contact Voltage (Max)	36V
Power Line Protection	No	Voltage - Input (Min)	36 V
Voltage - Supply (Min)	36 V	Power Dissipation (Max)	0.4kW
Unidirectional Channels	1	Current - Peak Pulse (8/20us)	6.9 A
Current - Reverse Leakage @ Vr	1 uA	Current - Peak Pulse (10/1000us)	6.9A
Voltage - Reverse Standoff (Typ)	36 V	Common Mode Transient Immunity (Min)	Commercial

Mechanical

Width	2.9(Max)	Packaging	Tape and Reel
Lead Style	J-Lead	Mounting Type	Surface Mount
Mounting Style	SMD/SMT	Package / Case	2SMA
Package Cooled	SMA	Length - Overall	4.6(Max)
Package Quantity	SMA	Size / Dimension	2.79(Max) mm W x 4.5(Max) mm L
Termination Style	SMD/SMT	Number of Positions	2
Supplier Device Package	DO-214AC (SMA)

Product Info

Type	Zener	Series	SMAJ
DELETED	Compliant	Polarity	Unidirectional
Matchcode	SMAJ36A (CP)	Applications	Telecom
Configuration	Single	Port Direction	Uni-Directional
Standard Leadtime	16 weeks	Application Specifics	UNIDIRECTI
Printed Circuit Board	2

Environmental

Operating Temperature

-55 to 150 °C

Operating Temperature - Junction

-55 to 150

Documents & Media

PDF Document

548547.pdf
