SMAJ36A
| Manufacturer | |
| Description | TVS Diodes - Transient Voltage Suppressors 36Vr 400W 6.9A 5% UniDirectional Diode TVS Single Uni-Dir 36V 400W 2-Pin DO-214-AC T/R TVS Diode SMA Suf MT T&R TVS DIODE 36VWM 58.1VC SMA TVS DIODE, 400W, 36V, DO-214AC, FULL REEL TVS DIODE, 400W, 36V, DO-214AC Diode: transil; 400W; 36V; 6.9A; unidirectional; DO214AC TRANSIL UNI 0,4KW 42V SMA |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 5000 | Unit Pack | 5000 |
| Other Names | SMAJ36ALFTR | Product Category | TVS Diodes - Transient Voltage Suppressors |
| Standard Package | 5,000 | Factory Pack Quantity | 5000 |
| Standard Package Name | DO-214-AC | ||
Compliance
| RoHS | Lead free by exemption / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85411000 | ESD Protection | No |
Electrical
| Channels | 1 Channel | TVS Polarity | :Unidirectional |
| Power - Rated | 400W | Current - Surge | 6.9 A |
| Current - Output | 1 | Voltage - Supply | 36V |
| Current - Leakage | 1µA | Number of Elements | 1 |
| Power - Peak Pulse | 400W | Voltage - Clamping | 58.1V |
| Voltage - Breakdown | 40V | Power Line Protection | No |
| Voltage - Input (Min) | 36 | Voltage - Supply (Min) | 36 V |
| Unidirectional Channels | 1 | Current - Peak Pulse (8/20us) | :6.9A |
| Current - Reverse Leakage @ Vr | 1 | Current - Peak Pulse (10/1000us) | 6.9A |
Mechanical
| Width | 2.79(Max) | Weight | 0 |
| Packaging | Tape and Reel | Lead Style | J-Lead |
| Mounting Type | Surface Mount | Number of Pins | :2 |
| Package / Case | DO-214AC, SMA | Length - Overall | 4.5(Max) |
| Package Quantity | DO-214-AC | Size / Dimension | 2.79 mm W x 4.5 mm L x 2.29 mm H |
| Termination Style | SMD/SMT | Number of Positions | 2 |
| Shell Size - Insert | 2.09(Max) | Supplier Device Package | SMA |
Product Info
| Spg | 5000 | Type | Zener |
| Series | SMAJ | Polarity | Unidirectional |
| Structure | unidirectional | Diode Type | transil |
| Applications | Telecom | Port Direction | Uni-Directional |
| Number of Units | 1 | Printed Circuit Board | 2 |
Environmental
| Operating Temperature | -55°C ~ 150°C | Operating Temperature - Junction | -65 to 150 |
Documents & Media
PDF Document
Similar Parts
SMAJ36A-E3/61
Vishay Intertechnology, Inc.
Diode TVS Single Uni-Dir 36V 400W 2-Pin SMA T/R TRANSIL UNI 0,4KW 43V SMA TVS DIODE 36VWM 58.1VC SMA TVS Diode Uni-Directional SMAJ36A-E3/61 58.1V, 400W, SMA 2-Pin TVS Diodes - Transient Voltage Suppressors 400W 36V 5% Uni DIODETVS,SMAJ36A Vishay 单向 TVS 二极管, 400W, 58.1V, 2针 SMA封装 TVS-DIODE UNI 0,4KW 43V SMA
$0.2615
Details
80-4-5
Illinois Capacitor, Inc.
Solder Removal .110 BLUE Chemical,DesolderingBraid,Rosin,EsdSafe,5FootBobbin,.110Inch/2.8mmBlue Soder-Wick® Rosin SD .110" ESD 5' Spool Desoldering braids 2.8 mm, 80-4-5, Chemtronics
$42.7999
Details

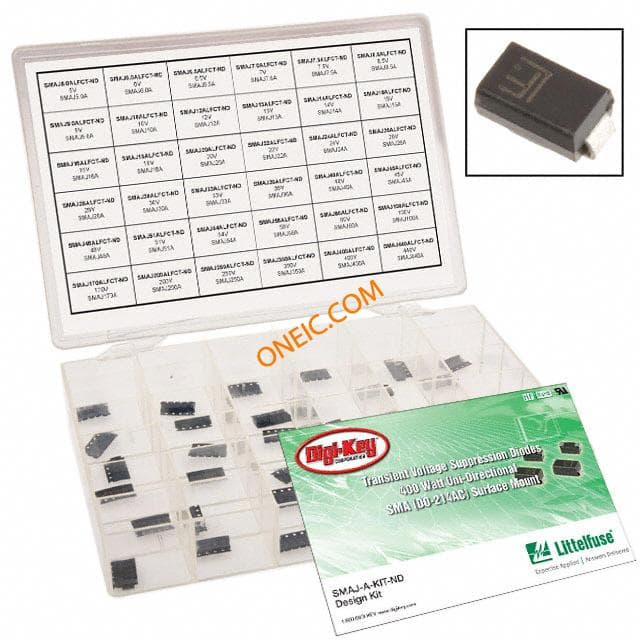

4879768
