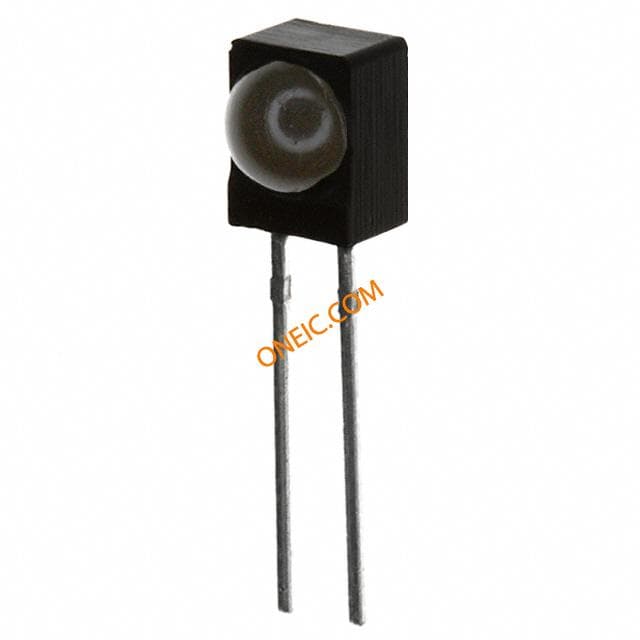

BPV22NF
| Manufacturer | |
| Description | Photodiode PIN Chip 940nm 0.6A/W Sensitivity 2-Pin Side View Photodiodes 60 Degree 215mW Photodiode PIN Chip 940nm 0.6A/W Sensitivity 2-Pin Side View Bulk PIN PHOTODIODE SIDE VIEW PHOTODIODE PIN SPHERE SIDE VIEW Vishay BPV22NF 60° Infrared Si Photodiode, Through-hole Side-looker Package PHOTODIODE, PIN PHOTODIODE, 0.05A, 1.3V PIN IR photodiode; 940nm; 120°; Mounting: THT IR-photodiode 940 nm 2 Pin Sideview, BPV22NF, Vishay Vishay 60 ° 红外 硅 光电二极管, 通孔安装 侧面封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 4000 | Product | PIN Photodiodes |
| Unit Pack | 4000 | Other Names | 751-1007 |
| Product Category | Photodiodes | Standard Package | Bulk |
| Factory Pack Quantity | 4000 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85414090 |
| Automotive | NO | Rad Hardened | No |
Electrical
| Noise | 4E-14 W/sqrt Hz | Fall Time | 100 ns |
| Wavelength | 940 nm | Power - Max | 215 |
| Sensitivity | 940nm | Sensor Type | PIN IR photodiode |
| Power - Rated | 215 mW | Sensing Angle | 60 deg |
| Sensing Range | 215nm | Viewing Angle | 60° |
| Current - Test | 85µA | Spectral Range | 790nm ~ 1050nm |
| Conversion Type | 60 | Frequency - Max | 940 |
| Rise Time (Typ) | 15 to 250 ns | Voltage - Supply | :1.3V |
| Responsivity @ nm | 0.6 A/W | Wavelength - Peak | 940 nm |
| Diode Configuration | :Radial Leaded | LED Forward Current | 50 mA |
| Voltage - Breakdown | 60 V | Current - Dark (Max) | 30 nA |
| Current - Dark (Typ) | 2 nA | Current Rating (Max) | 85(Typ) uA |
| Wavelength - Dominant | 790nm | Rise / Fall Time (Typ) | 0.1ns |
| Voltage - Open Circuit | :370V | Current - Dark (Id) (Max) | 85 uA |
| Voltage Regulation - Load | 60 V | Current - Short Circuit (Isc) | :80µA |
| Switch Time (Ton, Toff) (Max) | :100ns | Voltage - DC Reverse (Vr) (Max) | 60V |
| Current - LED Trigger (Ift) (Max) | 85 uA | Voltage - Gate Trigger (Vgt) (Max) | 60 V |
Mechanical
| Depth | :5mm | Width | 5mm |
| Height | 6mm | Length | 4.5mm |
| Weight | 0.000198 | Material | Si |
| Packaging | Bulk | Lead Spacing | :2.54mm |
| Length - Tip | Epoxy | Mounting Type | PCB Through Hole |
| Mounting Style | Through Hole | Number of Pins | 2 |
| Package / Case | 2Side View | Package Cooled | Side View |
| Length - Overall | 4.5 | Material - Blade | Si |
| Package Quantity | 100 | Size / Dimension | 4.5 x 5 x 6mm |
| Packages Included | Side View | Length - Lead Wire | :26.5mm |
| Number of Positions | 2 | Shell Size - Insert | 6 |
Product Info
| Spg | 100 | Type | Chip |
| DELETED | Compliant | Polarity | Forward |
| Lens Type | Epoxy | Matchcode | BPV22NF |
| Diode Type | PIN | Visibility | 0.6A/W |
| Active Area | 7.5mm² | Number of Units | 1 |
| Standard Leadtime | 6 weeks | Other Specifications | 7.5mm² |
| Printed Circuit Board | 2 | Assembly Configuration | Through Hole |
Environmental
| Temperature Display | 100(Typ) | Operating Temperature | -55 °C |
| Operating Temperature - Junction | :100°C | Storage/Refrigeration Temperature | :100°C |
