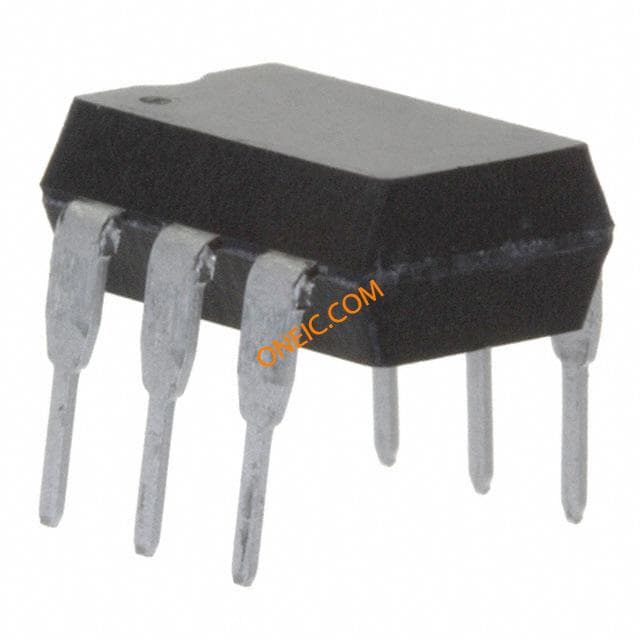

4N35
| Manufacturer | |
| Description | Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP Transistor Output Optocouplers Phototransistor Out OPTOCOUPLER CTR>100%,TRANS.OUT. OPTOCOUPLER TRANS 5KVRMS 6DIP Optocoupler Transistor O/P w/Base PDIP6 OPTOCOUPLER, TRANSISTOR O/P, DIP-3 OPTOCOUPLER, TRANSISTOR, 5300VRMS Optoisolator;Analog;6-PinDIP;Transistor;150mW;60mA Optocoupler; THT; Channels:1; Out: transistor; Uinsul:5.3kV; DIP6 Isocom 光耦 , 直流输入, 晶体管输出 通孔安装安装, 6针 PDIP 封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 50 | Unit Pack | 50 |
| Product Category | Transistor Output Optocouplers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 3000 | Standard Package Name | PDIP |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85414090 | Automotive | NO |
| Rad Hardened | No | Approval Agency | :CSA |
| Approval Agency Marking | NY/N | ||
Electrical
| Output | NPN Phototransistor | Channels | 1 |
| Input Type | DC | Output Type | DC |
| Power - Max | 150mW | Turn On Time | 10µs |
| Power - Rated | 0.07 W | Voltage Rating | :70V |
| Fall Time (Typ) | 0.010ms | Rise Time (Typ) | 0.010ms |
| Transistor Type | optocoupler | Delay Time - OFF | 10µs |
| Output Isolation | :Phototransistor | Voltage - Supply | 1.3V |
| Number of Channels | 1 | Number of Elements | 1 |
| LED Forward Current | 60 mA | LED Forward Voltage | 1.3 V |
| Voltage - Breakdown | 6 V | Voltage - Breakover | :30V |
| Voltage - Isolation | 5000 Vrms | Voltage - Input (Min) | 30 V |
| Voltage - Output (Max) | :70V | Power Dissipation (Max) | 70 mW |
| Vce(on) (Max) @ Vge, Ic | 70V | Input Logic Level - High | DC |
| On-State Resistance (Max) | 10^11Ohms | Voltage Regulation - Load | 6 V |
| Current - Input Bias (Max) | 50 mA | Current - Output / Channel | 50mA |
| Current Transfer Ratio (Max) | 50(Typ) % | Current Transfer Ratio (Min) | 50 % |
| Current - Peak Pulse (8/20us) | :60mA | Current - Collector (Ic) (Max) | 100 mA |
| Current - Collector Cutoff (Max) | 0.1 A | Voltage - Reverse Standoff (Typ) | 6 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V | Current - Average Rectified (Io) (per Diode) | 50mA |
Mechanical
| Depth | :6.4mm | Width | :8.6mm |
| Length | :3.55mm | Weight | 0.0005 |
| Packaging | Tube | Lead Style | Through Hole |
| Lead Spacing | :2.54mm | Pitch - Post | :8.2mm |
| Mounting Type | Through Hole | Number of Pins | 6 |
| Optic Material | :DIP | Package / Case | 6PDIP |
| Package Cooled | PDIP | Length - Overall | 8.7(Max) |
| Package Quantity | PDIP | Number of Positions | 6 |
| Shell Size - Insert | 3.81(Max) | ||
Product Info
| Spg | 100 | Type | Analog |
| Matchcode | 4N35 | Schematic | see |
| Channel Type | P-Channel | Number of Units | 1 |
| Standard Leadtime | 10 weeks | Utilized IC / Part | :4N35 |
| Application Specifics | ACmainsdetection,reedrelaydriving,logicgroundisolation | Printed Circuit Board | 6 |
Environmental
| Operating Temperature | -55 to 100 °C | ||
