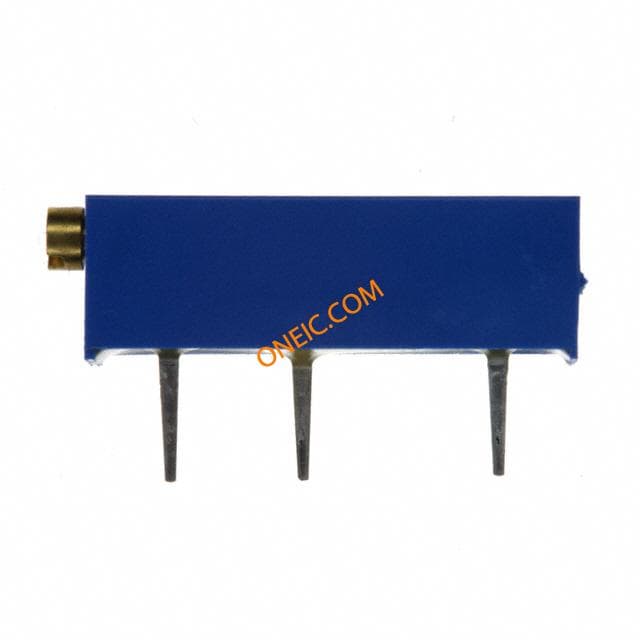

T18501KT10
| Manufacturer | |
| Description | Res Cermet Trimmer 500 Ohm 10% 3/4W 15(Elec)/18(Mech)Turn 2.5mm (20.5 X 4.8 X 6.4mm) Pin Thru-Hole Tube TRIMMER 500 OHM 0.5W TH TRIMMER T18 500R Trimmer Resistors - Through Hole 3/4 H/ADJ 500 TRIMMER, 18 TURN 500R Trimmer;Cermet;Rest500Ohms;PCB;18Turns;Linear;Pwr-Rtg0.5W;ShaftDia2.5mm Potentiometer: mounting; multiturn; 500Ω; 750mW; ±10%; linear Vishay 15（电气）转，18（机械）转 转 通孔 微调电阻器, 带 针接端, 500Ω ±10%, 0.75W |
| Category |
Business
| MOQ | 500 | Product | Trimmer Resistors - Multi Turn |
| Unit Pack | 25 | Other Names | T18-500 |
| Product Category | Trimmer Resistors - Through Hole | Standard Package | Rail / Tube |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85334010 |
Electrical
| Tolerance | 10 % | Resistance | 500 Ohm |
| Element Type | Cermet | Power (Watts) | 0.5W, 1/2W |
| Power - Rated | 3/4 W | Voltage Rating | 250 V |
| Resistance (Ohms) | 500 | Contact Resistance | :2% |
| Dielectric Strength | 1000V | Voltage - Breakdown | :1000V |
| Resistance Tolerance | 500Ω | Resistor - Base (R1) | :Radial Leaded |
| Insulation Resistance | 10^6Megohms | DC Resistance (DCR) (Max) | :500ohm |
Mechanical
| Depth | 4.7mm | Taper | Linear |
| Width | :4.8mm | Height | 6.4mm |
| Length | 20.5mm | Torque | 2N-cm |
| Weight | 0.001 | Base Type | :Through Hole |
| Packaging | Tube | Termination | Leaded |
| Pin Diameter | :0.5mm | Mounting Type | Through Hole |
| Terminal Type | :PCB Terminals | Inner Diameter | :0.2mm |
| Mounting Style | PCB | Shaft Diameter | 2.5 mm |
| Material - Blade | Cermet | Package Quantity | 50 |
| Size / Dimension | Rectangular - 0.748" L x 0.185" W x 0.252" H (19.00mm x 4.70mm x 6.40mm) | Termination Style | PC Pin |
| Conductor Material | cermet | Length - Lead Wire | :5.3mm |
| Resistive Material | Cermet | Diameter - Inside, Expanded | :0.8mm |
Product Info
| Spg | 50 | Type | Trimmer |
| Series | T18 | Technology | Cermet |
| Product Type | Multi-Turn | Adjustment Type | Side Adjustment |
| Characteristics | linear | Number of Turns | 15(Elec)|18(Mech) Turns |
| Number of Units | 1 | Type Attributes | 19mm |
Environmental
| NEMA Frame Size | :IP67 | Switching Cycles | 200Cycles |
| Ingress Protection | IP67 | Operating Temperature | -55 to 125 °C |
| Temperature Coefficient | ±100ppm/°C | Temperature Coefficient (Typ) | :100ppm/°C |
| Operating Temperature - Junction | +125°C | ||
