点击放大查看

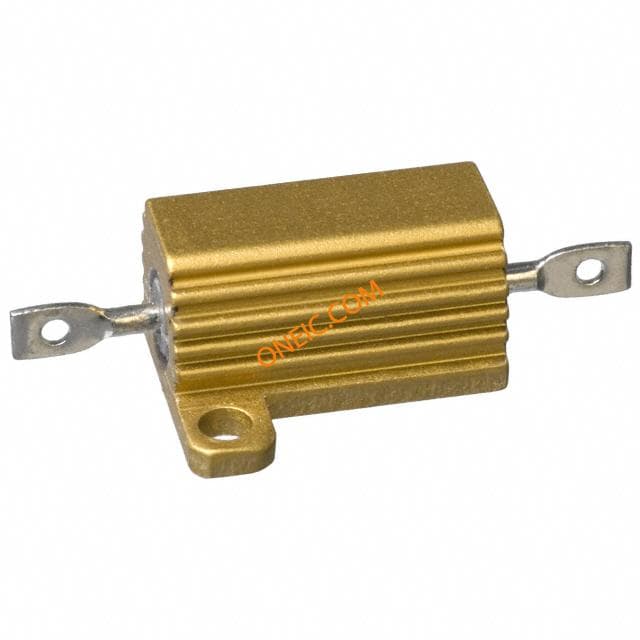

RH0505R000FE02
| Manufacturer | |
| Description | Res Wirewound 5 Ohm 1% 50W ±50ppm/°C Aluminum Housed AXL Flange Mount Card Pack RES CHAS MNT 5 OHM 1% 50W Resistor; Aluminum Housed; Chassis Mount; 50 Watt; 1%; 5 Ohms Wirewound Resistors 50watt 5ohm 1% RESISTOR, 50W, 5R Resistor;Wirewound;Res5Ohms;Pwr-Rtg50W;Tol1%;Lug;AlumHoused;Military RES 5.0 OHM 1%50W ALUM HOUSED WW Vishay RH 系列 50W 5Ω 轴向 高功率线绕电阻器 , ±1%, ±50ppm/°C |
| Category |
Business
| Product | Power Resistors Wirewound Aluminum Housed | Other Names | RHRD-5.0 |
| Product Category | Wirewound Resistors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85332100 | ||
Electrical
| Tolerance | 1 % | Resistance | 5 Ohm |
| Range deg/s | :VISHAY - RH Series | Power (Watts) | 50W |
| Power - Rated | 50 W | Resistance (Ohms) | 5 |
| Resistance Tolerance | :± 1% | ||
Mechanical
| Depth | 28.96 | Width | 28.96 mm |
| Height | 15.49 mm | Weight | 0.1 |
| Diameter | 16 mm | Base Type | :- |
| Packaging | Card Pack | Lead Style | Solder Lugs |
| Termination | Lug | Mounting Type | Flange Mount |
| Number of Pins | :2 | Package / Case | Aluminum Housed |
| Length - Overall | 70.64 mm | Material - Blade | Wirewound |
| Mounting Feature | Flanges | Size / Dimension | 1.968" L x 1.140" W (49.99mm x 28.96mm) |
| Termination Style | Axial | Resistive Material | :Ceramic |
| Coating, Housing Type | Aluminum | ||
Product Info
| Type | Wirewound | Series | RH |
| Features | Military | Technology | Wirewound |
| Composition | Wirewound | ||
Environmental
| Operating Temperature | -55 to 250 °C | Temperature Coefficient | ±50ppm/°C |
