TPS65120RGTR
| Manufacturer | |
| Description | LCD DRVR 3.3V/5V 16-Pin VQFN EP T/R IC LCD SUPPLY TFT QUAD 16-VQFN LCD Drivers Sgl-Inductor Qd-Otp Supply 4-CH Single Inductor Multiple Outputs (SIMO) Bias IC w/ Fixed 3.3V Vlogic Power Management Specialized - PMIC Sgl-Inductor Qd-Otp Supply |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | LCD Display Drivers | Other Names | 296-17181-2 |
| Product Category | LCD Drivers | Standard Package | Tape & Reel |
| Factory Pack Quantity | 3000 | Standard Package Name | QFN |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Clock Rate | 4 MHz | Regulator Type | 1 |
| Voltage Rating | 5.5 | Current - Supply | 170 uA |
| Voltage - Supply | 2.5 to 5.5 V | Number of Outputs | 4 |
| Current Rating (Max) | Catalog | Voltage - Input (Min) | 3 V ~ 5.6 V, Adj up to 20V, Adj down to -18V |
| Voltage - Supply (Min) | 2.5 V | Power - Average Forward | 15 mW |
| Power Dissipation (Max) | 15 mW | ||
Mechanical
| Width | 3.15(Max) | Weight | 0.000808 oz |
| Packaging | Tape and Reel | Lead Style | No Lead |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 16VQFN EP | Package Cooled | VQFN EP |
| Length - Overall | 3.15(Max) | Package Quantity | VQFN EP |
| Number of Positions | 16 | Shell Size - Insert | 0.95(Max) |
| Supplier Device Package | 16-QFN (3x3) | ||
Product Info
| Type | LCD Bias | Series | TPS65120 |
| Function | Adjustable Sequencing | Software | SLVS531A |
| Touchscreen | No | Applications | Converter, TFT, LCD |

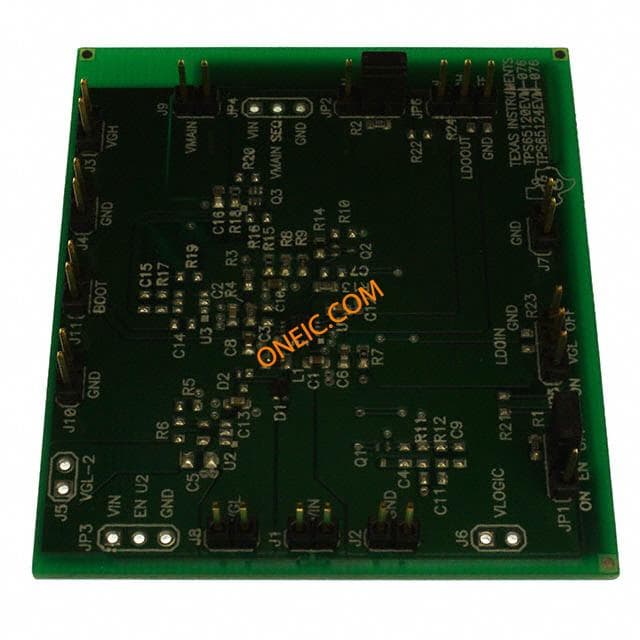

| Manufacturer | Texas Instruments | Development Kit | TPS65120EVM-076 |
| Utilized IC / Part | View | Other Specifications | 0 |
| Application Specifics | Small Form Factor | Printed Circuit Board | 16 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
| Operating Temperature - Junction | 85C | ||
