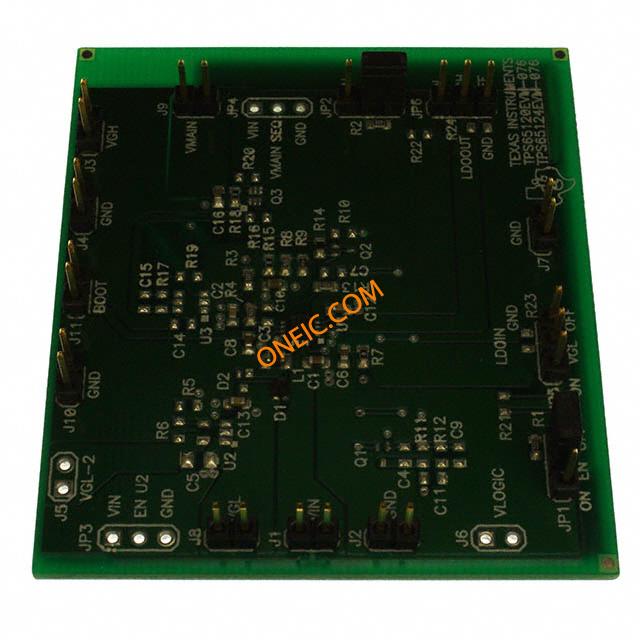

TPS65120EVM-076
| Manufacturer | |
| Description | Evaluation Module For TPS65120076 Power Management IC Development Tools TPS65120-076 Eval Mod EVAL MODULE FOR TPS65120-076 |
| Category |
Business
| Product | Power Management Modules | Other Names | 296-18994 |
| Product Category | Power Management IC Development Tools | Standard Package | Boxed |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | No | EU RoHS | RoHS Not Applicable |
Electrical
| Power - Output | 287mW | Voltage Rating | 3.6 V |
| Current - Output | 25mA, 20mA, 4mA, 4mA | Voltage - Supply | 5V, 3.3V, 12V, -12V |
| Regulator Topology | Boost | Current Rating (Max) | 25mA, 20mA, 4mA, 4mA |
| Voltage - Input (Min) | 5V, 3.3V, 12V, -12V | ||
Mechanical
| Packaging | Reel | Board Thickness | Fully Populated |
| Size / Dimension | 63.5 mm x 55.9 mm | Supplier Device Package | Fully Populated |
Product Info
| Type | Development Kit | Contents | Board |
| Application | Special Purpose DC/DC, LCD Supply | Main Purpose | Special Purpose DC/DC, LCD Supply |
| Outputs and Type | 4, Non-Isolated | Tool Type Feature | TPS65120 |
| RF Family/Standard | TPS65120 | Utilized IC / Part | TPS65120 |
