TPS62150RGTT
| Manufacturer | |
| Description | DC/DC Switching Regulators 3-17V 1A SD Cnvrtr Conv DC-DC Single Step Down 3V to 17V 16-Pin VQFN EP T/R IC REG BUCK SYNC ADJ 1A 16QFN Voltage Regulators - Switching Regulators 3-17V 1A SD Cnvrtr 3–17V 1A Step-Down Converter with DCS-Control in 3x3 QFN package Texas Instruments 降压 开关稳压器, 1A, 可调输出, 0.9 → 6 V, 2.5 MHz, 16针 QFN封装 Switching Voltage Regulators 3-17V 1A SD Cnvrtr |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Voltage Regulators | Other Names | 296-30007-2 |
| Product Category | DC/DC Switching Regulators | Standard Package | 250 |
| Factory Pack Quantity | 250 | Standard Package Name | QFN |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Output | 1 | PWM Type | Hybrid |
| Duty Cycle | 100 | Output Type | Adjustable |
| Voltage Rating | 0.9 V to 6 V | Delay Time - ON | Adjustable |
| Line Regulation | 0.02%/V(Typ) | Load Regulation | 0.05%/A(Typ) |
| Current - Output | 1 A | Current - Supply | 17 uA |
| Number of Outputs | 1 | Regulator Topology | Step Down |
| Current - Switching | 1.7 | Switching Regulator | Yes |
| Current Rating (Max) | Catalog | Must Release Voltage | Fixed |
| Frequency - Switching | 2.5 MHz | Synchronous Rectifier | Yes |
| Voltage - Input (Max) | 7 to 30 Vin Max | Voltage - Input (Min) | 0.9 V ~ 6 V |
| Voltage - Output (Max) | 6 V | Current - Quiescent (Iq) | 0.017 |
| DC Voltage - Input (Min) | 3 V | Voltage Regulation - Load | Internal |
| Voltage - Output (Min/Fixed) | 0.9 V | Accuracy - Voltmeter; Ammeter | 1.8 |
Mechanical
| Width | 3.15mm | Height | 0.95mm |
| Length | 3.15mm | Packaging | Reel |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 16 |
| Package / Case | QFN-16 | Package Cooled | VQFN EP |
| Length - Overall | 3.15(Max) | Package Quantity | VQFN EP |
| Size / Dimension | 3.15 x 3.15 x 0.95mm | Number of Positions | 16 |
| Shell Size - Insert | 0.95(Max) | Supplier Device Package | 16-QFN (3x3) |
Product Info
| Type | Step Down | Series | TPS62150 |
| Features | Enable Light Load Efficiency Output Discharge Power Good Synchronous Rectification Tracking Voltage Margining | Function | Y |
| Software | SLVSAL5B | Topology | Buck Inverting Buck-Boost |
| Application | Communications & Telecom Computing & Multimedia Industrial Smart Grid | Manufacturer | DCS-Control |

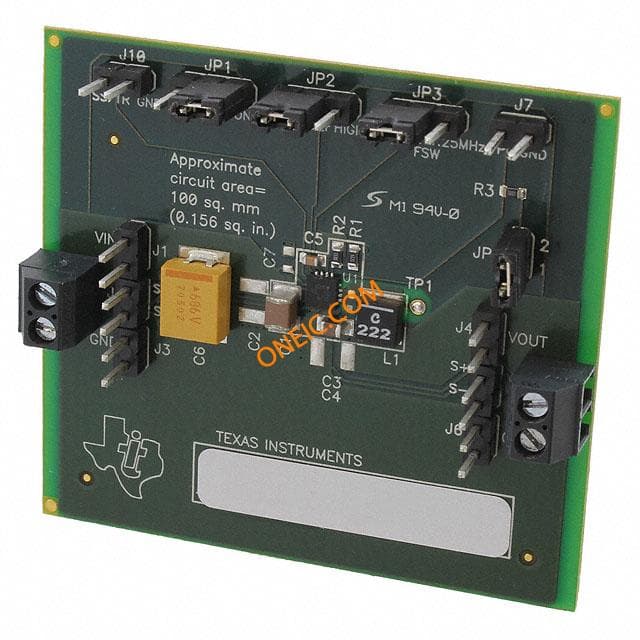

| Pattern Number | Y | Development Kit | TPS62150EVM-505 |
| Functional Diagram | alt_slvsal5b.gif | Utilized IC / Part | View |
| Function - Lighting | 降压 | Printed Circuit Board | 16 |
Environmental
| Mechanical Life | New At Mouser | Temperature - Test | -40 to 85 |
| Operating Temperature | -40°C ~ 85°C | ||
